AWG28-20 Series

Catalog

CBL RIBN 20COND 0.05 GRAY FOOT

Part	Spool Size [x]	Spool Size [x]	First Conductor Mark	Insulation Resistance	Conductor Material	Number of Conductors	Wire Gauge	Pitch	Pitch	Shielding	Length	Cable Type	Ribbon Width [custom]	Ribbon Width [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Ratings	Length [x]	Length [x]	Ribbon Thickness	Ribbon Thickness	Voltage	Length	Length	Jacket Color	Jacket (Insulation) Material	Operating Temperature

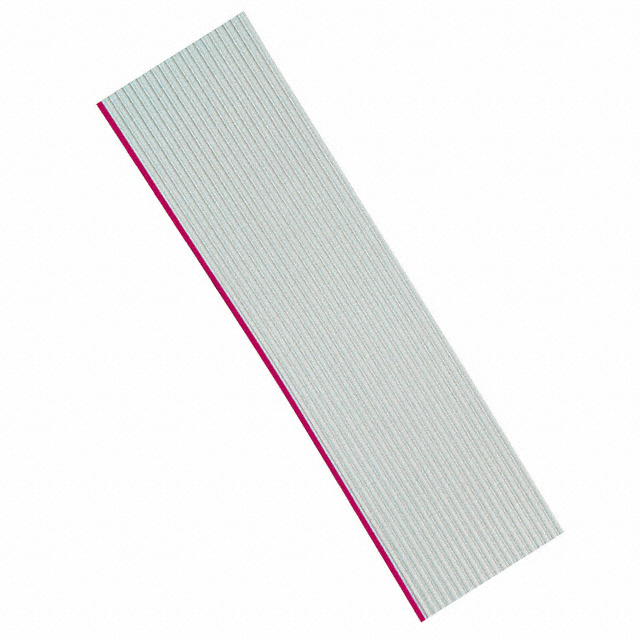

Assmann WSW Components AWG28-20/G/300	300 ft	91.44 m	Red	100 MOhms	Copper Tinned	20	28 AWG	0.05 in	1.27 mm	Unshielded	Enter Number of Feet in Order Quantity	Flat Cable	25.4 mm	1 in	-10 °C	105 ░C	36 AWG	7 Strands	UL Style 2651	50 ft	15.24 m	0.89 mm	0.035 in	300 VDC	3.05 m 7.62 m 30.48 m 91440 mm	10 ft 25 ft 100 ' 3600 in	Gray	Poly-Vinyl Chloride (PVC)

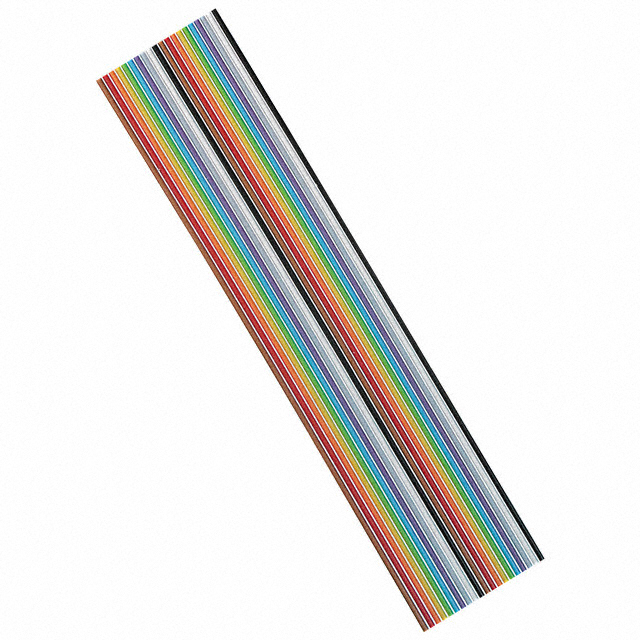

Assmann WSW Components AWG28-20/F/300	300 ft	91.44 m	Red	100 MOhms	Copper Tinned	20	28 AWG	0.05 in	1.27 mm	Unshielded	Enter Number of Feet in Order Quantity	Flat Cable	25.4 mm	1 in			36 AWG	7 Strands	UL Style 2651	50 ft	15.24 m	0.89 mm	0.035 in	300 VDC	3.05 m 7.62 m 30.48 m 91440 mm	10 ft 25 ft 100 ' 3600 in	Multiple	Poly-Vinyl Chloride (PVC)	105 C
