TS5204 Series

Catalog

LDO VOLTAGE REGULATORS 80MA 3.3V ULTRA LOW DROPOUT VOLTAGE REGULATOR

Part	PSRR	Voltage - Output (Min/Fixed)	Output Configuration	Supplier Device Package	Package / Case	Current - Output	Number of Regulators	Current - Supply (Max) [Max]	Voltage Dropout (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Protection Features	Voltage - Input (Max) [Max]	Mounting Type
Taiwan Semiconductor Corporation TS5204CX33 RFG	65 dB	3.3 V	Positive	SOT-23	SC-59 SOT-23-3 TO-236-3	80 mA	1	3.1 mA	0.6 V	-40 °C	150 °C	Over Current Over Temperature Reverse Polarity	16 V	Surface Mount
Taiwan Semiconductor Corporation TS5204CX50 RFG	65 dB	5 V	Positive	SOT-23	SC-59 SOT-23-3 TO-236-3	80 mA	1	3.1 mA	0.6 V	-40 °C	150 °C	Over Current Over Temperature Reverse Polarity	16 V	Surface Mount

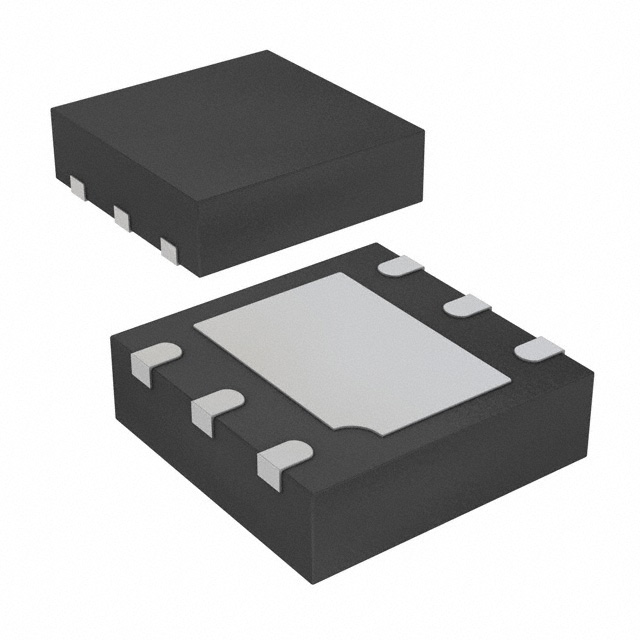

Taiwan Semiconductor Corporation TS5204CQ33 RFG	65 dB	3.3 V	Positive	6-DFN (2x2)	6-VDFN Exposed Pad	80 mA	1	3.1 mA	0.6 V	-40 °C	150 °C	Over Current Over Temperature Reverse Polarity	16 V	Surface Mount
Taiwan Semiconductor Corporation TS5204CY50 RMG	65 dB	5 V	Positive		TO-243AA	80 mA	1	3.1 mA	0.6 V	-40 °C	150 °C	Over Current Over Temperature Reverse Polarity	16 V	Surface Mount
