085789 Series
Manufacturer: Molex
Beta
⌘K

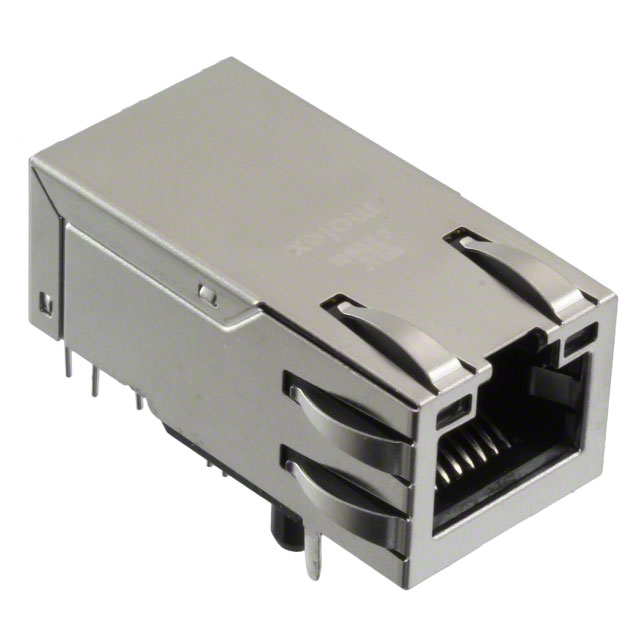

CONN RJ-45 F 8 POS 2.54MM SOLDER RA THRU-HOLE 12 TERMINAL 1 PORT
| Part | Number of Rows | Tab Direction | Applications | Shielding | Contact Finish | Connector Type | Shield Material | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Termination | Orientation | Housing Material | Contact Material | Number of Ports | Height Above Board | Height Above Board | Operating Temperature [Max] | Operating Temperature [Min] | LED Color | Number of Cores per Jack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 1 | Up | 10G Base-T AutoMDIX | Shielded EMI Finger | Gold | RJ45 | Stainless Steel | 0.76 Ám | 30 Áin | Through Hole | Solder | 90 ° | Polybutylene Terephthalate (PBT) | Phosphor Bronze | 1 | 0.546 in | 13.87 mm | 85 °C | -40 °C | Does Not Contain LED | |
Molex | 1 | Up | 10G Base-T AutoMDIX | Shielded EMI Finger | Gold | RJ45 | Stainless Steel | 0.76 Ám | 30 Áin | Through Hole | Solder | 90 ° | Polybutylene Terephthalate (PBT) | Phosphor Bronze | 1 | 0.546 in | 13.87 mm | 85 °C | -40 °C | Green Yellow - Green | |
 Molex | 1 | Up | 10/100/1000 Base-T AutoMDIX Power over Ethernet+ (PoE+) | Shielded EMI Finger | Gold | RJ45 | Stainless Steel | 0.76 Ám | 30 Áin | Through Hole | Solder | 90 ° | Polybutylene Terephthalate (PBT) | Phosphor Bronze | 1 | 0.546 in | 13.87 mm | 70 °C | 0 °C | Green Orange - Green | 8 |
Molex | 1 | Up | 10/100/1000 Base-T AutoMDIX Power over Ethernet+ (PoE+) | Shielded EMI Finger | Gold | RJ45 | Stainless Steel | 0.76 Ám | 30 Áin | Through Hole | Solder | 90 ° | Polybutylene Terephthalate (PBT) | Phosphor Bronze | 1 | 0.546 in | 13.87 mm | 70 °C | 0 °C | Green - Green | 8 |
Molex | 1 | Up | AutoMDIX | Shielded EMI Finger | Gold | RJ45 | Stainless Steel | 0.76 Ám | 30 Áin | Through Hole | Solder | 90 ° | Polybutylene Terephthalate (PBT) | Phosphor Bronze | 1 | 0.546 in | 13.87 mm | 85 °C | -40 °C | Does Not Contain LED | |
 Molex | 1 | Up | 10/100/1000 Base-T AutoMDIX Power over Ethernet+ (PoE+) | Shielded EMI Finger | Gold | RJ45 | Stainless Steel | 0.76 Ám | 30 Áin | Through Hole | Solder | 90 ° | Polybutylene Terephthalate (PBT) | Phosphor Bronze | 1 | 0.546 in | 13.87 mm | 70 °C | 0 °C | Green Yellow | 8 |
