L77HDAH26 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

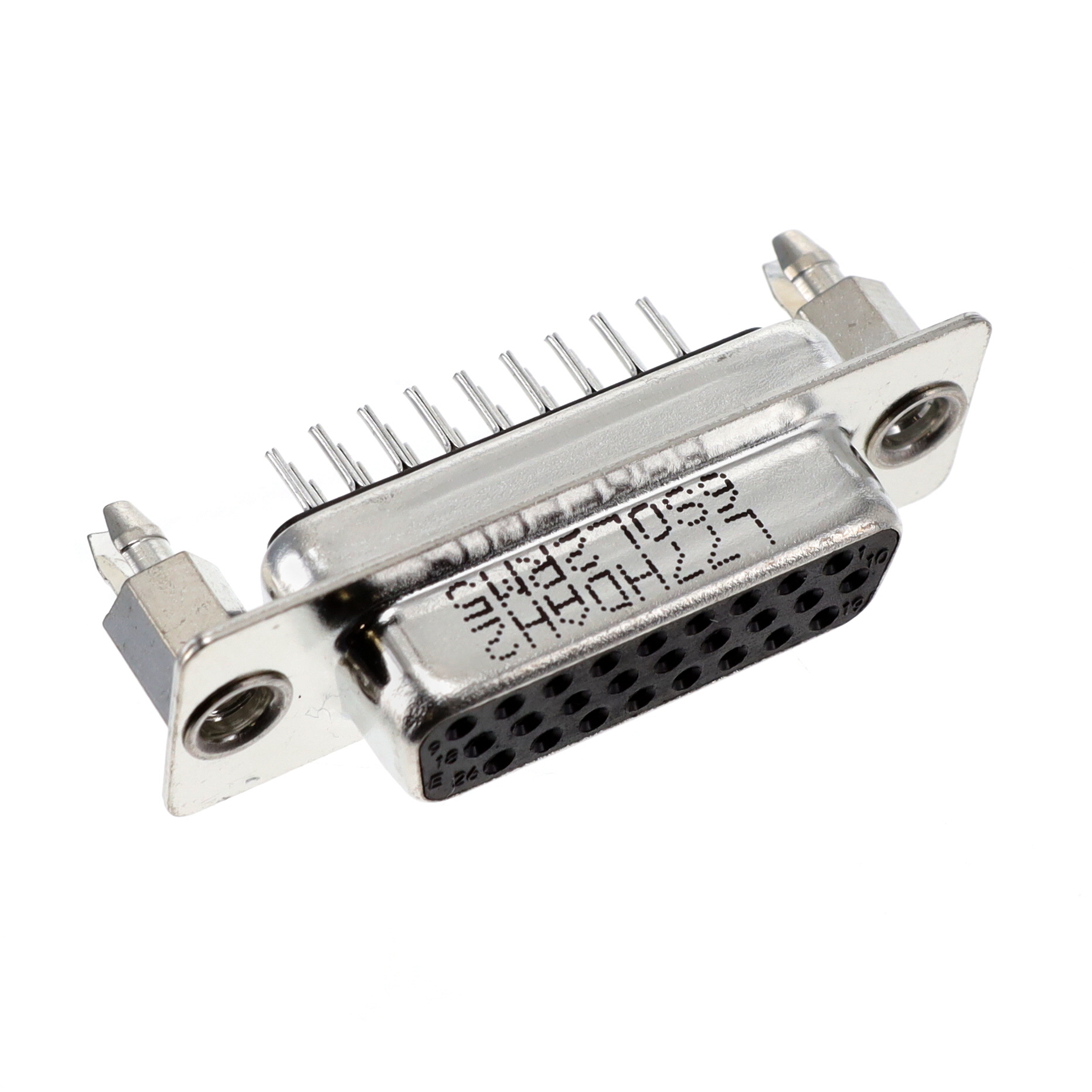

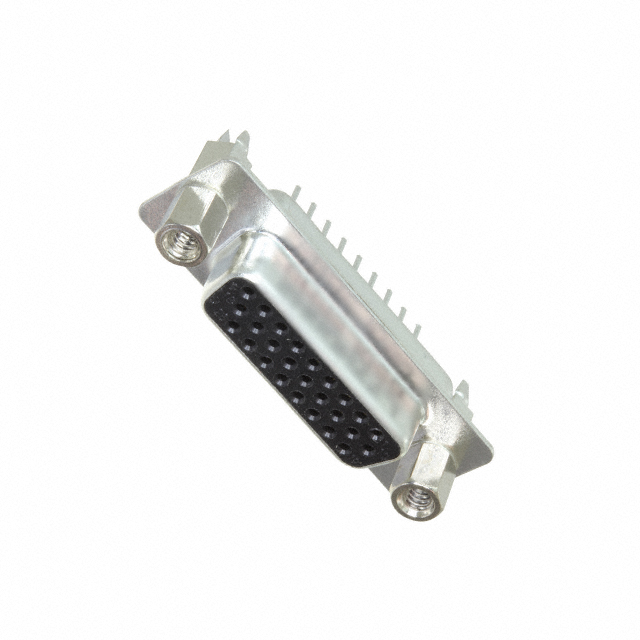

CONN D-SUB HD RCPT 26P VERT SLDR
| Part | Contact Material | Dielectric Material | Color | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Form | Current Rating (Amps) | Connector Type | Material Flammability Rating | Connector Style | Flange Feature | Number of Positions | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout | Mounting Type | Contact Finish Thickness | Features | Contact Finish | Termination | Contact Type | Number of Rows [custom] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Brass | Thermoplastic Glass Filled | Black | 250 V | -55 C | 105 ░C | Stamped | 3 A | Receptacle Female Sockets | UL94 V-0 | D-Sub High Density | 4-40 Mating Side Female Screwlock | 26 | 2 | DA A | Through Hole | Flash | Board Lock | Gold | Solder | Signal | 3 | ||
 Amphenol ICC (Commercial Products) | Brass | Thermoplastic Glass Filled | Black | 250 V | -55 C | 105 ░C | Stamped | 3 A | Receptacle Female Sockets | UL94 V-0 | D-Sub High Density | Board Side (4-40) | 26 | 2 | DA A | Through Hole | Board Lock | Gold | Solder | Signal | 3 | 30 Áin | 0.76 Ám | |
 Amphenol ICC (Commercial Products) | Brass | Polybutylene Terephthalate (PBT) Glass Filled | Black | 250 V | -55 C | 105 ░C | Stamped | 3 A | Receptacle Female Sockets | UL94 V-0 | D-Sub High Density | Board Side (4-40) | 26 | 2 | DA A | Through Hole | Gold | Solder | Signal | 3 | 30 Áin | 0.76 Ám | ||
 Amphenol ICC (Commercial Products) | Brass | Thermoplastic Glass Filled | Black | 250 V | -55 C | 105 ░C | Stamped | 3 A | Receptacle Female Sockets | UL94 V-0 | D-Sub High Density | Board Side (4-40) | 26 | 2 | DA A | Through Hole | Flash | Board Lock | Gold | Solder | Signal | 3 |
