138-0408 Series
Manufacturer: Cinch Connectivity Solutions Johnson
Beta
⌘K

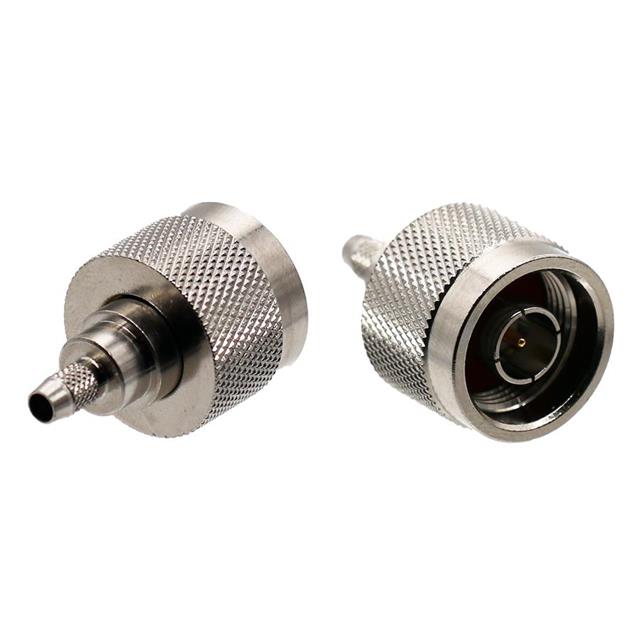

N STRAIGHT CRIMP PLUG, RG142, 50
| Part | Body Finish | Voltage Rating | Body Material | Dielectric Material | Insertion Loss | Center Contact Plating | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Frequency - Max [Max] | Housing Color | Shield Termination | Center Contact Material | Number of Ports | Impedance | Cable Group | Contact Termination | Fastening Type | Connector Style | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cinch Connectivity Solutions Johnson | Nickel | 500 V | Brass | Polytetrafluoroethylene (PTFE) | 0.1 dB | Gold | 500 | -65 ░C | 165 °C | Plug Male Pin | 4 GHz | Silver | Crimp | Brass | 1 | 50 Ohms | RG-142 | Crimp | Threaded | N Type | Free Hanging (In-Line) |
