174-037 Series
Manufacturer: NorComp Inc.
Beta
⌘K

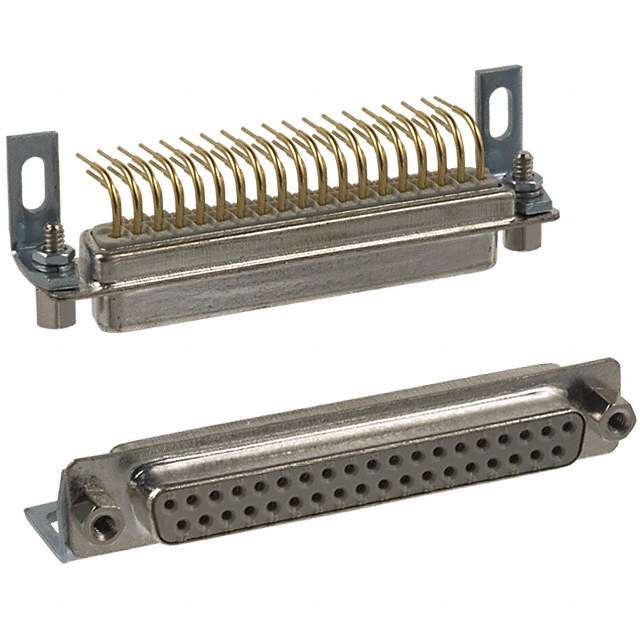

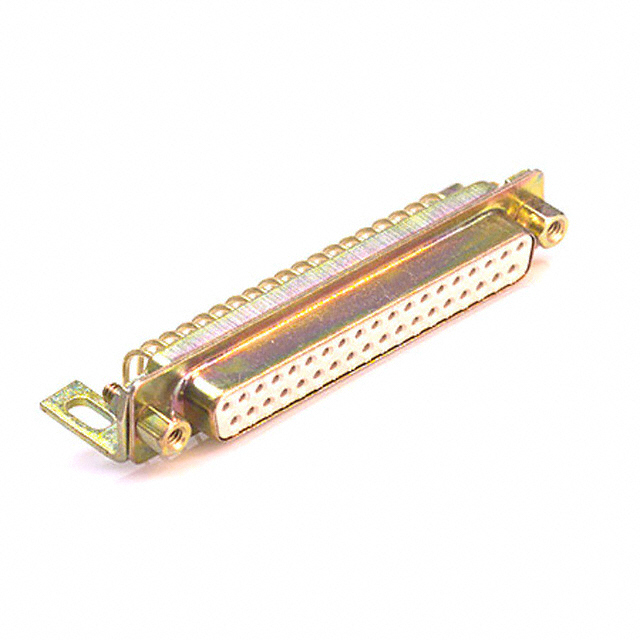

CONN D-SUB RCPT 37POS R/A SLDR
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Color | Contact Finish | Backset Spacing | Backset Spacing | Current Rating (Amps) | Number of Positions | Flange Feature | Mounting Type | Connector Style | Contact Type | Termination | Connector Type | Features | Material Flammability Rating | Number of Rows [custom] | Shell Size, Connector Layout | Shell Size, Connector Layout | Contact Finish Thickness | Shell Material, Finish [custom] | Shell Material, Finish [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | 100 °C | -50 °C | Polybutylene Terephthalate (PBT) | Beige | Gold | 9.4 mm | 0.37 in | 5 A | 37 | 4-40 Mating Side Female Screwlock | Panel Mount Right Angle Through Hole | D-Sub | Signal | Solder | Receptacle Female Sockets | Mounting Brackets | UL94 V-0 | 2 | 4 | DC C | Flash | ||
 NorComp Inc. | 100 °C | -50 °C | Polybutylene Terephthalate (PBT) | Beige | Gold | 9.4 mm | 0.37 in | 5 A | 37 | 4-40 Mating Side Female Screwlock | Panel Mount Right Angle Through Hole | D-Sub | Signal | Solder | Plug Male Pins | Mounting Brackets | UL94 V-0 | 2 | 4 | DC C | Flash | Steel | Yellow Chromate Plated |
 NorComp Inc. | 100 °C | -50 °C | Polybutylene Terephthalate (PBT) | Beige | Gold | 9.4 mm | 0.37 in | 5 A | 37 | 4-40 Mating Side Female Screwlock | Panel Mount Right Angle Through Hole | D-Sub | Signal | Solder | Receptacle Female Sockets | Mounting Brackets | UL94 V-0 | 2 | 4 | DC C | Flash | Steel | Yellow Chromate Plated |
