MPC92 Series

Catalog

IC CLK/FREQ SYNTH 32LQFP

Part	Output Ratio	Input Ratio	Operating Temperature (Min)	Operating Temperature (Max)	Frequency - Max	Type	PLL	Multiplier	Divider	Output	Input	Differential Output	Differential Input	Number of Circuits	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Mounting Type	Package Length	Package Name	Package Width	Package / Case
NXP USA Inc. MPC9230FA	1	1	-40 °C	85 °C	750 MHz	Clock Generator Clock/Frequency Synthesizer Multiplexer	Yes with Bypass	No	Yes	LVPECL	Crystal	Yes	No	1	3.135 V	3.465 V	Surface Mount	7 mm	32-LQFP	7 mm	32-LQFP

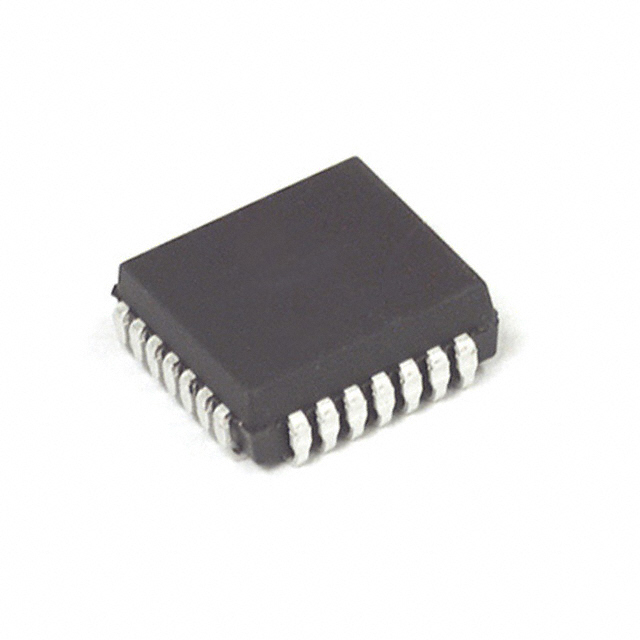

NXP USA Inc. MPC9230FN	1	1	-40 °C	85 °C	750 MHz	Clock Generator Clock/Frequency Synthesizer Multiplexer	Yes with Bypass	No	Yes	LVPECL	Crystal	Yes	No	1	3.135 V	3.465 V	Surface Mount	11.51 mm	28-PLCC	11.51 mm	28-LCC (J-Lead)
NXP USA Inc. MPC9229AC	1	1	0 °C	70 °C	400 MHz	Clock Generator Clock/Frequency Synthesizer	Yes with Bypass	No	Yes	LVPECL	Crystal	Yes	No	1	3.135 V	3.465 V	Surface Mount	7 mm	32-LQFP	7 mm	32-LQFP
NXP USA Inc. MPC9239FN	1	1	0 °C	70 °C	900 MHz	Clock Generator Clock/Frequency Synthesizer Multiplexer	Yes with Bypass	Yes	Yes	LVCMOS LVPECL	LVCMOS	Yes	No	1	3.135 V	3.465 V	Surface Mount	11.51 mm	28-PLCC	11.51 mm	28-LCC (J-Lead)
