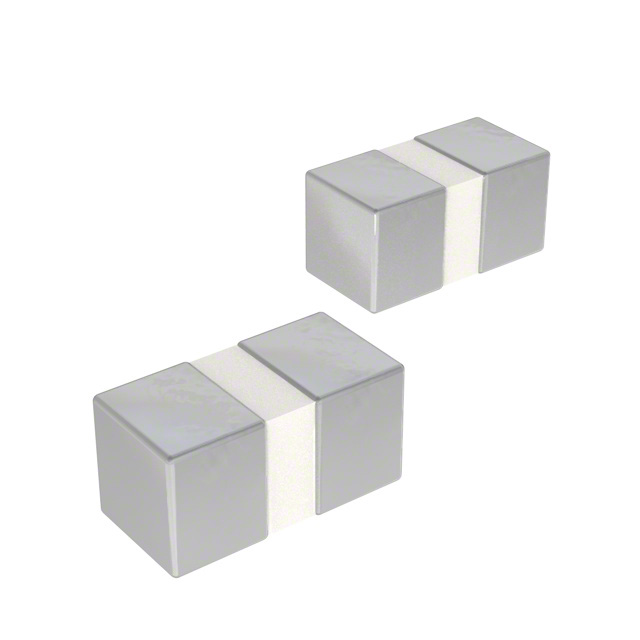

CI100505 Series

Catalog

FIXED IND 1NH 300MA 80 MOHM SMD

Part	Package / Case	Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Mounting Type	DC Resistance (DCR) [Max]	Inductance Frequency - Test	Inductance	Q @ Freq [custom]	Q @ Freq [custom]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Material - Core	Current Rating (Amps)	Frequency - Self Resonant	Supplier Device Package	Shielding	DC Resistance (DCR)	Packages Included	Inductance Range [Max]	Inductance Range [Min]	Kit Type	Quantity	Quantity	Quantity	Style
Bourns Inc. CI100505-1N0D	0402 (1005 Metric)	Multilayer	0.02 in	0.5 mm	0.039 "	1 mm	-55 C	105 ░C	0.3 nH	Surface Mount	80 mOhm	100 MHz	1 nH	8	100 MHz	0.55 mm	0.022 in	Ceramic	0.3 A	6 GHz	0402 (1005 Metric)	Unshielded
Bourns Inc. CI100505-6N8J	0402 (1005 Metric)	Multilayer	0.02 in	0.5 mm	0.039 "	1 mm	-55 C	105 ░C	5 %	Surface Mount	250 mOhm	100 MHz	6.8 nH	8	100 MHz	0.55 mm	0.022 in	Ceramic	0.3 A	3.9 GHz	0402 (1005 Metric)	Unshielded
Bourns Inc. CI100505-1N2D	0402 (1005 Metric)	Multilayer	0.02 in	0.5 mm	0.039 "	1 mm	-55 C	105 ░C	0.3 nH	Surface Mount	90 mOhm	100 MHz	1.2 nH	8	100 MHz	0.55 mm	0.022 in	Ceramic	0.3 A	6 GHz	0402 (1005 Metric)	Unshielded
Bourns Inc. CI100505-4N7D	0402 (1005 Metric)	Multilayer	0.02 in	0.5 mm	0.039 "	1 mm	-55 C	105 ░C	0.3 nH	Surface Mount	210 mOhm	100 MHz	4.7 nH	8	100 MHz	0.55 mm	0.022 in	Ceramic	0.3 A	4 GHz	0402 (1005 Metric)	Unshielded
Bourns Inc. CI100505-27NJ	0402 (1005 Metric)	Multilayer	0.02 in	0.5 mm	0.039 "	1 mm	-55 C	105 ░C	5 %	Surface Mount		100 MHz	27 nH	8	100 MHz	0.55 mm	0.022 in	Ceramic	0.2 A	1.6 GHz	0402 (1005 Metric)	Unshielded	700 mOhm
Bourns Inc. CI100505-39NJ	0402 (1005 Metric)	Multilayer	0.02 in	0.5 mm	0.039 "	1 mm	-55 C	105 ░C	5 %	Surface Mount		100 MHz	39 nH	8	100 MHz	0.55 mm	0.022 in	Ceramic	100 mA	1.2 GHz	0402 (1005 Metric)	Unshielded
Bourns Inc. CI100505-LAB1										Surface Mount								Ceramic						0402 (1005 Metric)	100 nH	1.5 nH	Fixed	40 Each	18 Values	720 Pieces	Multilayer
Bourns Inc. CI100505-7N5J	0402 (1005 Metric)	Multilayer	0.02 in	0.5 mm	0.039 "	1 mm	-55 C	105 ░C	5 %	Surface Mount			7.5 nH	8	100 MHz	0.55 mm	0.022 in	Ceramic			0402 (1005 Metric)	Unshielded
Bourns Inc. CI100505-R10J	0402 (1005 Metric)	Multilayer	0.02 in	0.5 mm	0.039 "	1 mm	-55 C	105 ░C	5 %	Surface Mount	1.5 Ohm	100 MHz	100 nH	8	100 MHz	0.55 mm	0.022 in	Ceramic	100 mA	550 MHz	0402 (1005 Metric)	Unshielded
Bourns Inc. CI100505-8N2J	0402 (1005 Metric)	Multilayer	0.02 in	0.5 mm	0.039 "	1 mm	-55 C	105 ░C	5 %	Surface Mount	280 mOhm	100 MHz	8.2 nH	8	100 MHz	0.55 mm	0.022 in	Ceramic	0.25 A	3.6 GHz	0402 (1005 Metric)	Unshielded
