Schaffner FN2450 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

LINE FILTER 250VAC 20A CHASS MNT

Part	Termination Style	Approval Agency	Current	Inductance	Frequency - Operating	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Voltage - Rated AC	Filter Type	Configuration

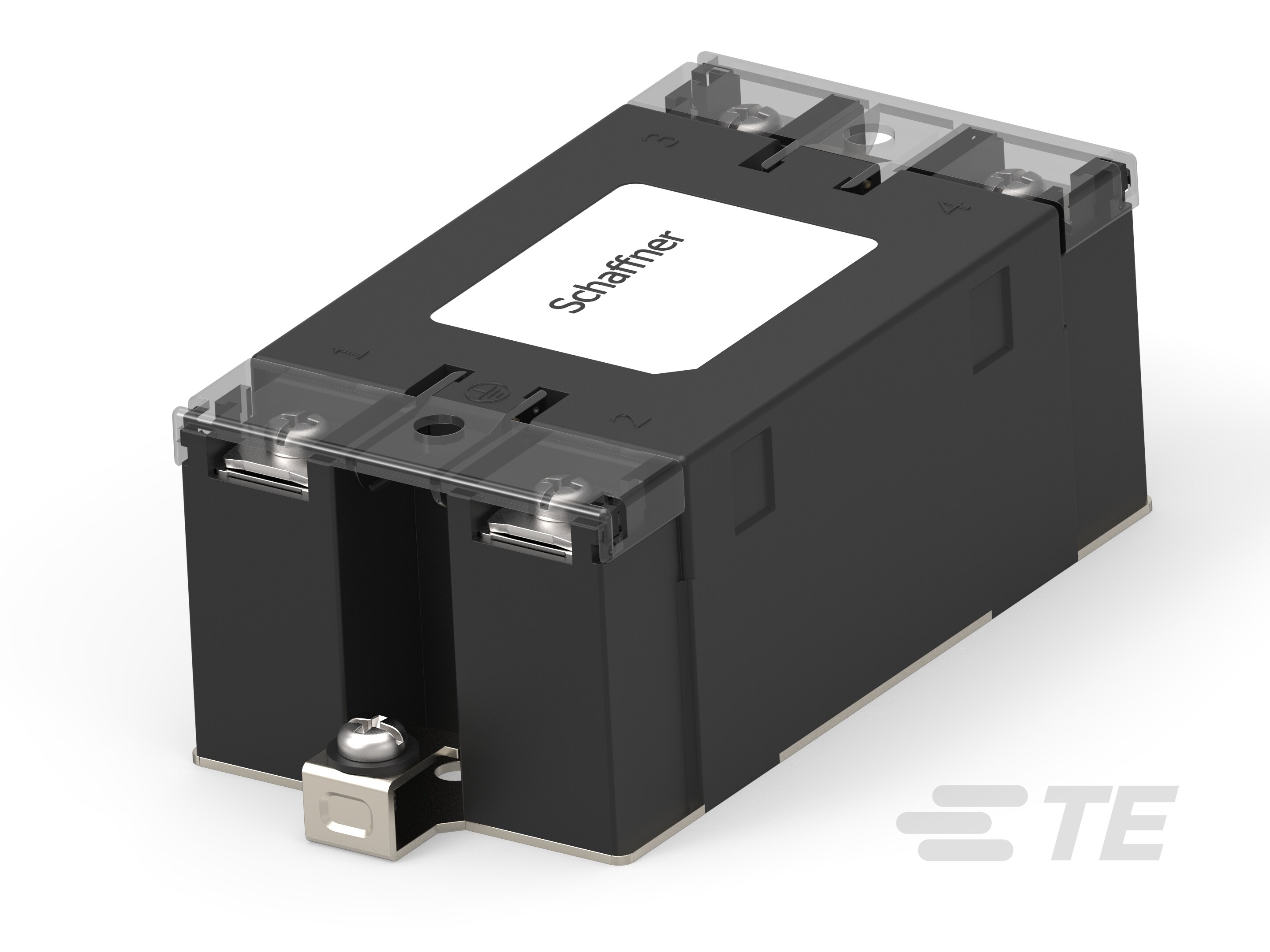

TE Connectivity AMP Connectors FN2450B-20-61	Terminal Block	CSA ENEC UR	20 A	940 µH	DC ~ 400Hz	Chassis Mount	100 °C	-25 °C	General Purpose	250 V	Single Phase	Single Stage
TE Connectivity AMP Connectors FN2450G-10-61	Terminal Block	CSA ENEC UR	10 A	4.9 mH	DC ~ 400Hz	Chassis Mount	100 °C	-25 °C	General Purpose	250 V	Single Phase	Single Stage

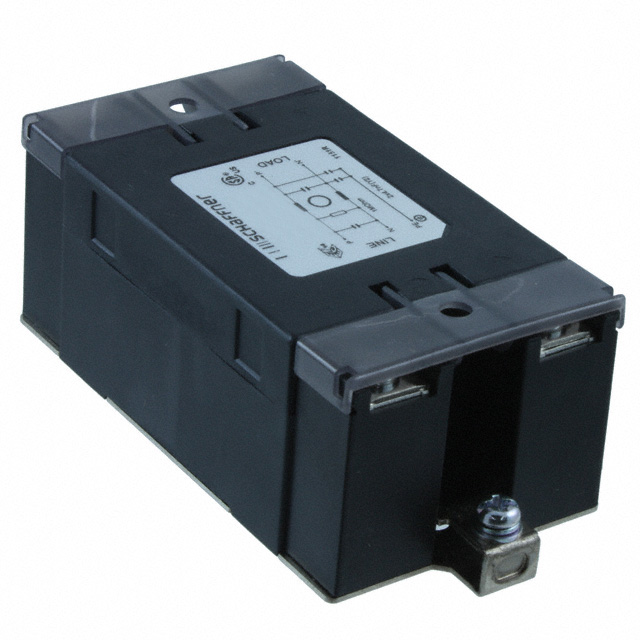

TE Connectivity AMP Connectors FN2450G-6-61	Terminal Block	CSA ENEC UR	6 A	10.5 mH	DC ~ 400Hz	Chassis Mount	100 °C	-25 °C	General Purpose	250 V	Single Phase	Single Stage
TE Connectivity AMP Connectors FN2450G-20-61	Terminal Block	CSA ENEC UR	20 A	940 µH	DC ~ 400Hz	Chassis Mount	100 °C	-25 °C	General Purpose	250 V	Single Phase	Single Stage
TE Connectivity AMP Connectors FN2450F-10-61	Terminal Block	CSA ENEC UR	10 A	4.9 mH	DC ~ 400Hz	Chassis Mount	100 °C	-25 °C	General Purpose	250 V	Single Phase	Single Stage
TE Connectivity AMP Connectors FN2450G-20-61	Terminal Block	CSA ENEC UR	20 A	940 µH	DC ~ 400Hz	Chassis Mount	100 °C	-25 °C	General Purpose	250 V	Single Phase	Single Stage
TE Connectivity AMP Connectors FN2450B-10-61	Terminal Block	CSA ENEC UR	10 A	4.9 mH	DC ~ 400Hz	Chassis Mount	100 °C	-25 °C	General Purpose	250 V	Single Phase	Single Stage
TE Connectivity AMP Connectors FN2450B-6-61	Terminal Block	CSA ENEC UR	6 A	10.5 mH	DC ~ 400Hz	Chassis Mount	100 °C	-25 °C	General Purpose	250 V	Single Phase	Single Stage
TE Connectivity AMP Connectors FN2450B-6-61	Terminal Block	CSA ENEC UR	6 A	10.5 mH	DC ~ 400Hz	Chassis Mount	100 °C	-25 °C	General Purpose	250 V	Single Phase	Single Stage
TE Connectivity AMP Connectors FN2450G-10-61	Terminal Block	CSA ENEC UR	10 A	4.9 mH	DC ~ 400Hz	Chassis Mount	100 °C	-25 °C	General Purpose	250 V	Single Phase	Single Stage
