50.134 Series

Catalog

CABLE GLND 8-16MM 3/4" NPT BRASS

Part	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max)	Thread Length	Thread Length	Color	Outside Cable Diameter (Min) [diameter]	Outside Cable Diameter (Min) [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Type	Material	Thread Size	Includes	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]

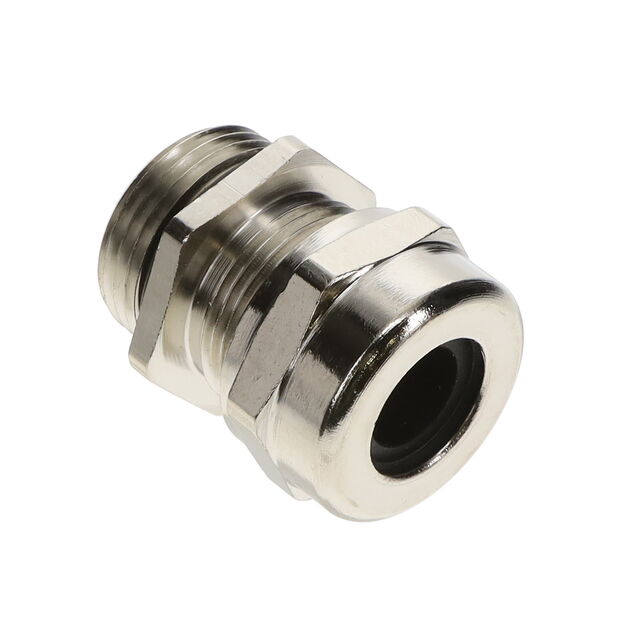

Jacob GmbH 50.134/EMV/R	0.63 in	16 mm	11 mm	0.433 in	Silver	0.315 in	8 mm	-40 C	100 °C	IP68 - Dust Tight Waterproof	Cable Gland	Brass Nickel Plated	0.75 "	O-Ring Seal

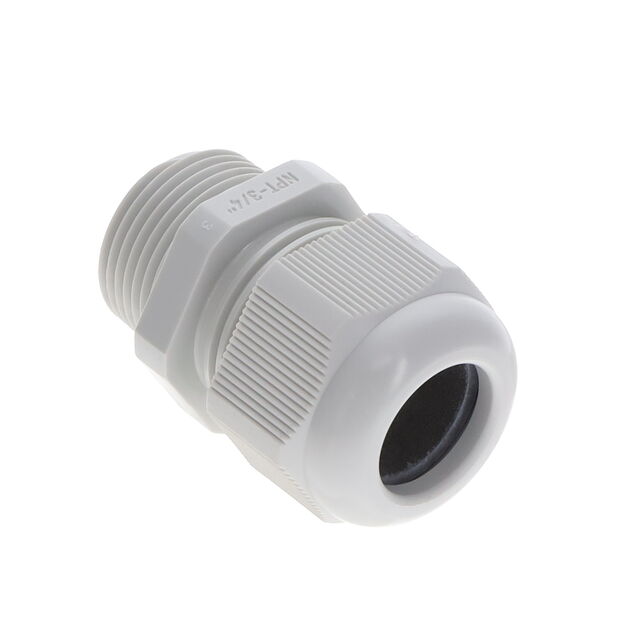

Jacob GmbH 50.134PA7035			15 mm	0.591 in	Gray			-40 C	100 °C	IP68 - Dust Tight Waterproof	Cable Gland		0.75 "	Sealing Ring	0.551 in	14 mm	18.01 mm	0.709 in

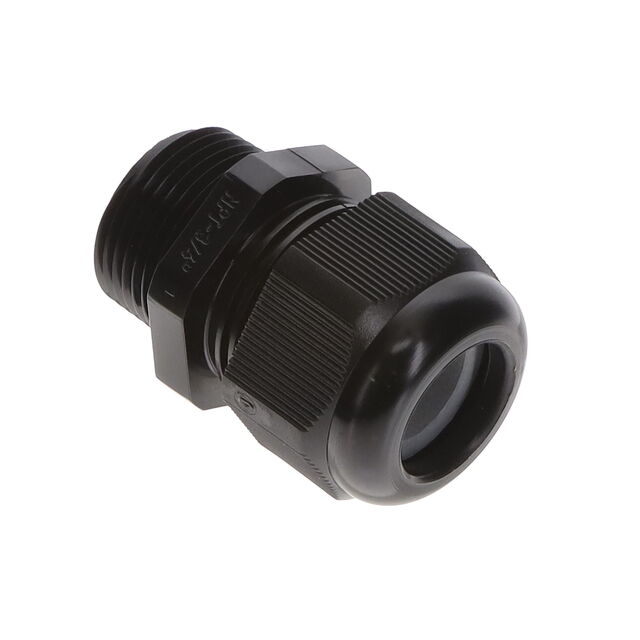

Jacob GmbH 50.134 PA/RSW	0.63 in	16 mm	15 mm	0.591 in	Black			-40 C	100 °C	IP68 - Dust Tight Waterproof	Cable Gland		0.75 "	Sealing Ring					0.354 in	9 mm

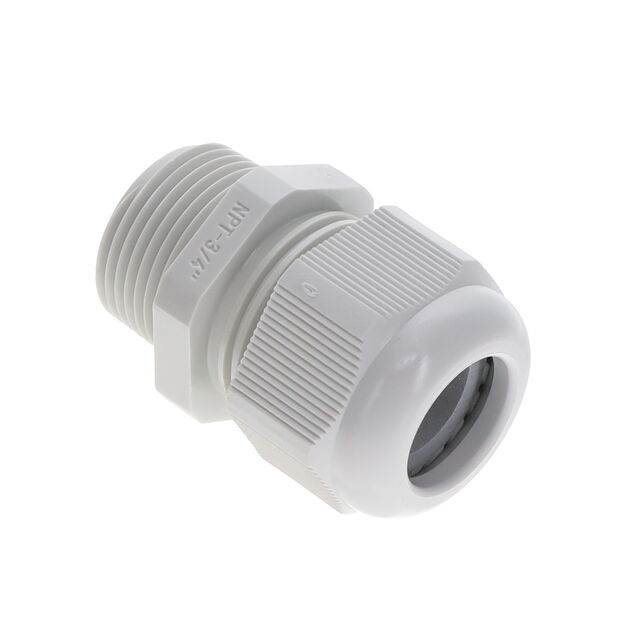

Jacob GmbH 50.134PAR7035	0.63 in	16 mm	15 mm	0.591 in	Gray			-40 C	100 °C	IP68 - Dust Tight Waterproof	Cable Gland		0.75 "	Sealing Ring					0.354 in	9 mm

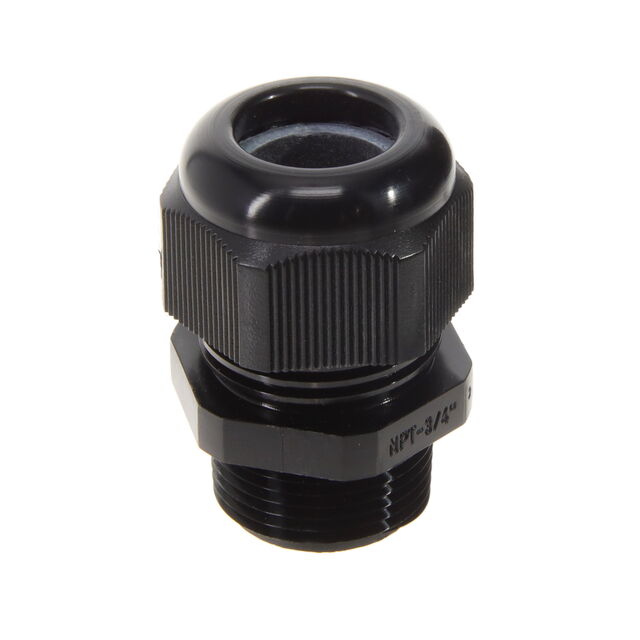

Jacob GmbH 50.134 PA/SW			15 mm	0.591 in	Black			-40 C	100 °C	IP68 - Dust Tight Waterproof	Cable Gland		0.75 "	Sealing Ring	0.551 in	14 mm	18.01 mm	0.709 in
