PSDH6060 Series

Catalog

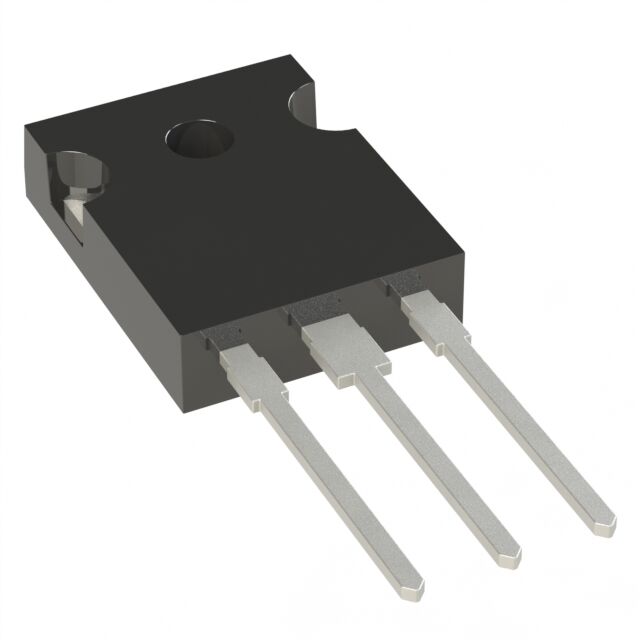

TO-247AD-3LD, FRED

Part	Current - Average Rectified (Io) (per Diode)	Package / Case	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Mounting Type	Reverse Recovery Time (trr)	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Current - Reverse Leakage @ Vr	Supplier Device Package	Diode Configuration	Voltage - Forward (Vf) (Max) @ If	Voltage - Forward (Vf) (Max) @ If [Max]	Current - Average Rectified (Io)
Panjit International Inc. PSDH6060CCS1_T0_00001	30 A	TO-247-3	200 mA 500 ns	600 V	Standard	Through Hole	70 ns	-55 °C	150 °C	250 µA	TO-247AD	1 Pair Common Cathode	2.3 V
Panjit International Inc. PSDH6060CCL1_T0_00001	30 A	TO-247-3	200 mA 500 ns	600 V	Standard	Through Hole	115 ns	-55 °C	150 °C	250 µA	TO-247AD	1 Pair Common Cathode		1.8 V

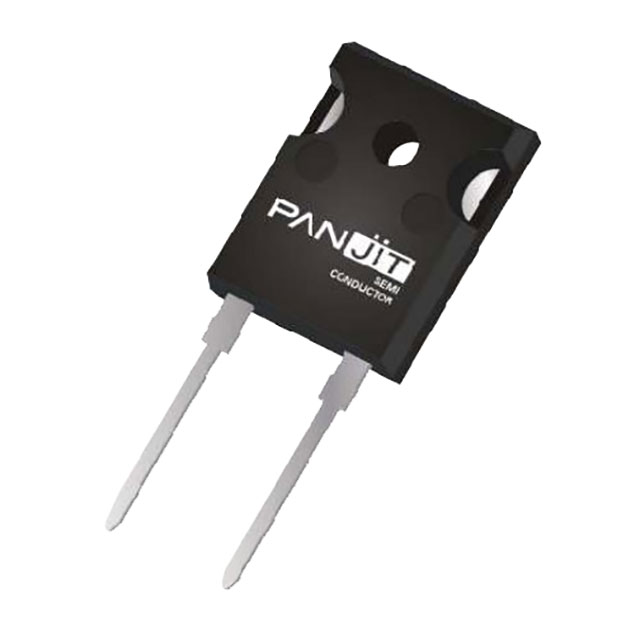

Panjit International Inc. PSDH6060S1_T0_00001		TO-247-2	200 mA 500 ns	600 V	Standard	Through Hole	85 ns	-55 °C	150 °C	250 µA	TO-247AD-2			2.3 V	60 A
Panjit International Inc. PSDH6060L1_T0_00001		TO-247-2	200 mA 500 ns	600 V	Standard	Through Hole	205 ns	-55 °C	150 °C	250 µA	TO-247AD-2			1.75 V	60 A
