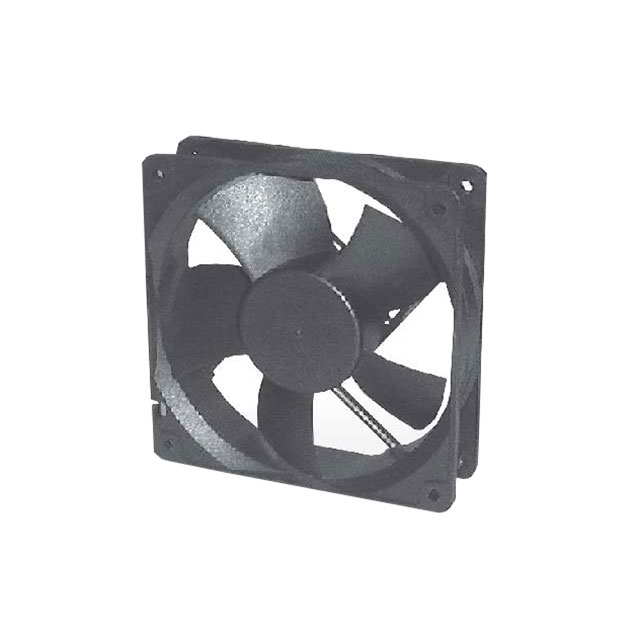

FAD1-12032 Series

Manufacturer: Qualtek

Catalog

FAN AXIAL 120X32.3MM 48VDC WIRE

Part	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Material - Frame	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Weight	Weight	RPM	Bearing Type	Termination	Size / Dimension [z]	Size / Dimension [x]	Approval Agency	Air Flow	Air Flow	Power (Watts)	Voltage - Rated	Noise	Static Pressure	Static Pressure	Width [x]	Fan Type
Qualtek FAD1-12032EHJW12	43.2 VDC	52.8 VDC	Plastic	Plastic	150 mA	70 °C	-10 °C	212.73 g	0.469 lb	3200 RPM	Hydrodynamic	2 Wire Leads	120 mm	120 mm	CE cURus TUV	133.4 CFM	3.74 m³/min	7.68 W	48 VDC	48.4 dB(A)	78.9 Pa	0.317 in H2O	32.3 mm	Tubeaxial
Qualtek FAD1-12032DBMW12	21.6 VDC	26.4 VDC	Plastic	Plastic		70 °C	-10 °C	212.73 g	0.469 lb	2400 RPM	Ball	2 Wire Leads	120 mm	120 mm	CE cURus TUV	99.1 CFM	2.77 m³/min	3.84 W	24 VDC		41.6 Pa	0.167 in H2O	32.3 mm	Tubeaxial
Qualtek FAD1-12032EBHW12	43.2 VDC	52.8 VDC	Plastic	Plastic	110 mA	70 °C	-10 °C	212.73 g	0.469 lb	2750 RPM	Ball	2 Wire Leads	120 mm	120 mm	CE cURus TUV	111.7 CFM	3.13 m³/min	5.28 W	48 VDC	43.3 dB(A)	60 Pa	0.241 in H2O	32.3 mm	Tubeaxial
Qualtek FAD1-12032CHJW12	10.8 VDC	13.2 VDC	Plastic	Plastic	0.51 A	70 °C	-10 °C	212.73 g	0.469 lb	3200 RPM	Hydrodynamic	2 Wire Leads	120 mm	120 mm	CE cURus TUV	133.4 CFM	3.74 m³/min	6.12 W	12 VDC	48.4 dB(A)	78.9 Pa	0.317 in H2O	32.3 mm	Tubeaxial
