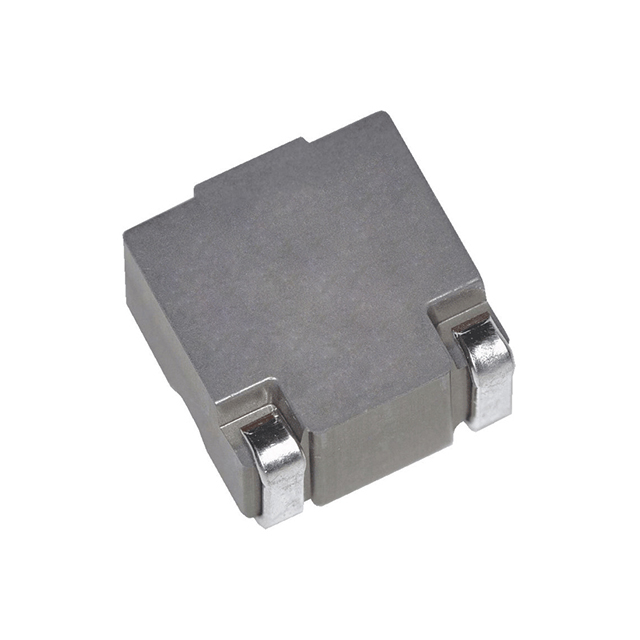

ETQ-P8 Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
POWER INDUCTOR (SMD), AEC-Q200, 680 NH, 35.4 A, SHIELDED, 56.9 A, PCC-M1280MF SERIES
| Part | Material - Core | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Ratings | Inductance | Inductance Frequency - Test | Type | Current Rating (Amps) | Tolerance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Mounting Type | Shielding | Package / Case | DC Resistance (DCR) | Operating Temperature [Min] | Operating Temperature [Max] | Current - Saturation (Isat) | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | Metal Composite | 0.52 in | 12.6 mm | 0.496 in | 13.2 mm | AEC-Q200 | 0.68 µH | 100 kHz | Drum Core Wirewound | 35.4 A | 20 % | 8 mm | 0.315 in | Surface Mount | Shielded | 2-SMD J-Lead | 1.21 mOhm | -40 °C | 160 °C | 56.9 A | |
 Panasonic Industrial Automation Sales | Metal Composite | AEC-Q200 | 4.7 ÁH | 100 kHz | Drum Core Wirewound | 16.8 A | 20 % | 8 mm | 0.315 in | Surface Mount | Shielded | 2-SMD J-Lead | -40 °C | 160 °C | 24.7 A | 5.39 mOhm | |||||
Panasonic Industrial Automation Sales | Metal Composite | AEC-Q200 | 3.3 µH | 100 kHz | Drum Core Wirewound | 19.6 A | 20 % | 8 mm | 0.315 in | Surface Mount | Shielded | 2-SMD J-Lead | -40 °C | 160 °C | 27.6 A | 3.96 mOhm |
