M22-251 Series

Catalog

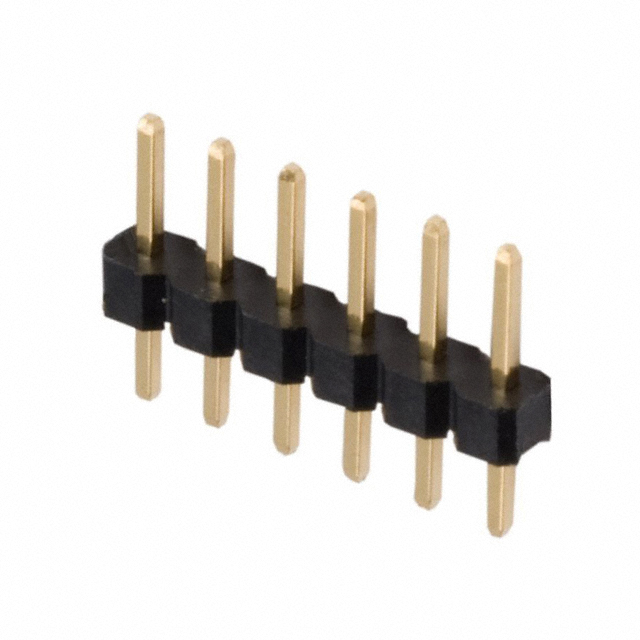

CONN HEADER VERT 6POS 2MM

Part	Mated Stacking Heights	Shrouding	Termination	Insulation Height	Insulation Height	Insulation Color	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Mounting Type	Contact Material	Contact Shape	Insulation Material	Contact Finish - Post	Connector Type	Number of Positions	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Overall Contact Length	Overall Contact Length	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Length - Post [x]	Contact Length - Post	Current Rating (Amps)	Number of Rows	Contact Finish - Mating
Harwin Inc. M22-2510646	5.9 mm 8.6 mm	Unshrouded	Solder	0.059 in	1.5 mm	Black	UL94 V-0	3.5 mm	0.138 in	Through Hole	Phosphor Bronze	Square	Nylon 6T Polyamide (PA6T)	Tin	Header Cuttable	6	Male Pin	-40 C	105 ░C	All	7.3 mm	0.287 in	0.079 "	2 mm	Push-Pull	0.091 "	2.3 mm	1 A	1
Harwin Inc. M22-2511205	5.9 mm 8.6 mm	Unshrouded	Solder	0.059 in	1.5 mm	Black	UL94 V-0	3.5 mm	0.138 in	Through Hole	Phosphor Bronze	Square	Nylon 6T Polyamide (PA6T)		Header Cuttable	12	Male Pin	-40 C	105 ░C	All	7.3 mm	0.287 in	0.079 "	2 mm	Push-Pull	0.091 "	2.3 mm	1 A	1	Gold
Harwin Inc. M22-2512505	5.9 mm 8.6 mm	Unshrouded	Solder	0.059 in	1.5 mm	Black	UL94 V-0	3.5 mm	0.138 in	Through Hole	Phosphor Bronze	Square	Nylon 6T Polyamide (PA6T)		Header Cuttable	25	Male Pin	-40 C	105 ░C	All	7.3 mm	0.287 in	0.079 "	2 mm	Push-Pull	0.091 "	2.3 mm	1 A	1	Gold
Harwin Inc. M22-2511646	5.9 mm 8.6 mm	Unshrouded	Solder	0.059 in	1.5 mm	Black	UL94 V-0	3.5 mm	0.138 in	Through Hole	Phosphor Bronze	Square	Nylon 6T Polyamide (PA6T)	Tin	Header Cuttable	16	Male Pin	-40 C	105 ░C	All	7.3 mm	0.287 in	0.079 "	2 mm	Push-Pull	0.091 "	2.3 mm	1 A	1

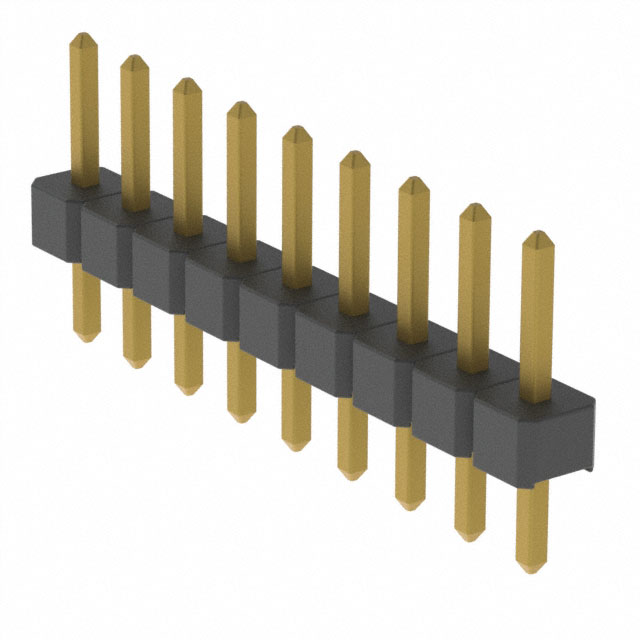

Harwin Inc. M22-2510905	5.9 mm 8.6 mm	Unshrouded	Solder	0.059 in	1.5 mm	Black	UL94 V-0	3.5 mm	0.138 in	Through Hole	Phosphor Bronze	Square	Nylon 6T Polyamide (PA6T)		Header Cuttable	9	Male Pin	-40 C	105 ░C	All	7.3 mm	0.287 in	0.079 "	2 mm	Push-Pull	0.091 "	2.3 mm	1 A	1	Gold
Harwin Inc. M22-2512046	5.9 mm 8.6 mm	Unshrouded	Solder	0.059 in	1.5 mm	Black	UL94 V-0	3.5 mm	0.138 in	Through Hole	Phosphor Bronze	Square	Nylon 6T Polyamide (PA6T)	Tin	Header Cuttable	20	Male Pin	-40 C	105 ░C	All	7.3 mm	0.287 in	0.079 "	2 mm	Push-Pull	0.091 "	2.3 mm	1 A	1
Harwin Inc. M22-2511005	5.9 mm 8.6 mm	Unshrouded	Solder	0.059 in	1.5 mm	Black	UL94 V-0	3.5 mm	0.138 in	Through Hole	Phosphor Bronze	Square	Nylon 6T Polyamide (PA6T)		Header Cuttable	10	Male Pin	-40 C	105 ░C	All	7.3 mm	0.287 in	0.079 "	2 mm	Push-Pull	0.091 "	2.3 mm	1 A	1	Gold

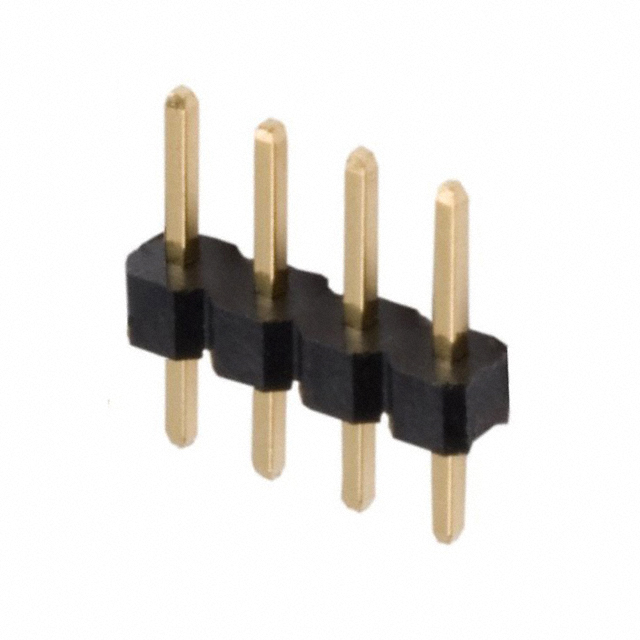

Harwin Inc. M22-2510405	5.9 mm 8.6 mm	Unshrouded	Solder	0.059 in	1.5 mm	Black	UL94 V-0	3.5 mm	0.138 in	Through Hole	Phosphor Bronze	Square	Nylon 6T Polyamide (PA6T)		Header Cuttable	4	Male Pin	-40 C	105 ░C	All	7.3 mm	0.287 in	0.079 "	2 mm	Push-Pull	0.091 "	2.3 mm	1 A	1	Gold
Harwin Inc. M22-2510605	5.9 mm 8.6 mm	Unshrouded	Solder	0.059 in	1.5 mm	Black	UL94 V-0	3.5 mm	0.138 in	Through Hole	Phosphor Bronze	Square	Nylon 6T Polyamide (PA6T)		Header Cuttable	6	Male Pin	-40 C	105 ░C	All	7.3 mm	0.287 in	0.079 "	2 mm	Push-Pull	0.091 "	2.3 mm	1 A	1	Gold

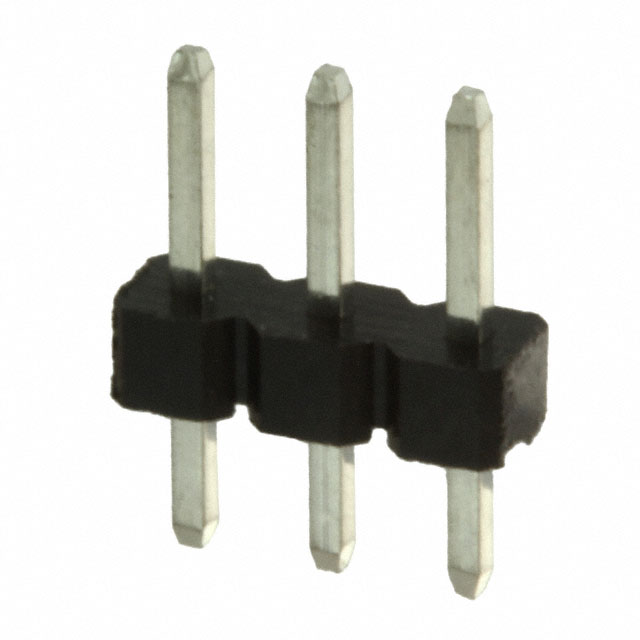

Harwin Inc. M22-2510346	5.9 mm 8.6 mm	Unshrouded	Solder	0.059 in	1.5 mm	Black	UL94 V-0	3.5 mm	0.138 in	Through Hole	Phosphor Bronze	Square	Nylon 6T Polyamide (PA6T)	Tin	Header Cuttable		Male Pin	-40 C	105 ░C	All	7.3 mm	0.287 in	0.079 "	2 mm	Push-Pull	0.091 "	2.3 mm	1 A	1
