726-007 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 7POS 0.125

Part	Number of Rows	Color	Pitch [x]	Pitch [x]	Contact Finish	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Read Out	Termination	Material - Insulation	Termination Rows	Number of Positions	Card Type	Contact Type	Number of Positions/Bay/Row [custom]
EDAC Inc. 726-007-545-101	1	Black	0.125 in	3.18 mm	Gold	Female	-40 °C	105 ░C	Through Hole	Copper Alloy	0.76 Ám	30 Áin	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	Press-Fit Wire Wrap	Polyester Thermoplastic	1	7	Non Specified - Single Edge	Cantilever	7

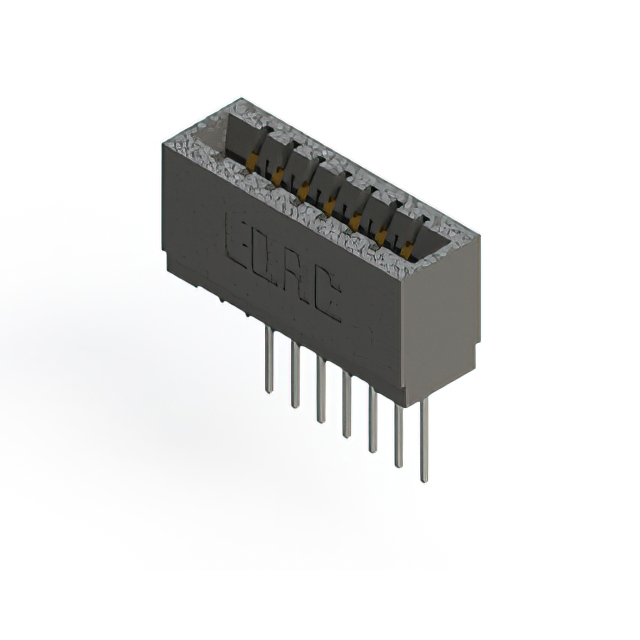

EDAC Inc. 726-007-540-101	1	Black	0.125 in	3.18 mm	Gold	Female	-40 °C	105 ░C	Through Hole	Copper Alloy	0.76 Ám	30 Áin	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	Press-Fit Wire Wrap	Polyester Thermoplastic	1	7	Non Specified - Single Edge	Cantilever	7
EDAC Inc. 726-007-520-101	1	Black	0.125 in	3.18 mm	Gold	Female	-40 °C	105 ░C	Through Hole	Copper Alloy	0.76 Ám	30 Áin	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	Press-Fit	Polyester Thermoplastic	1	7	Non Specified - Single Edge	Cantilever	7

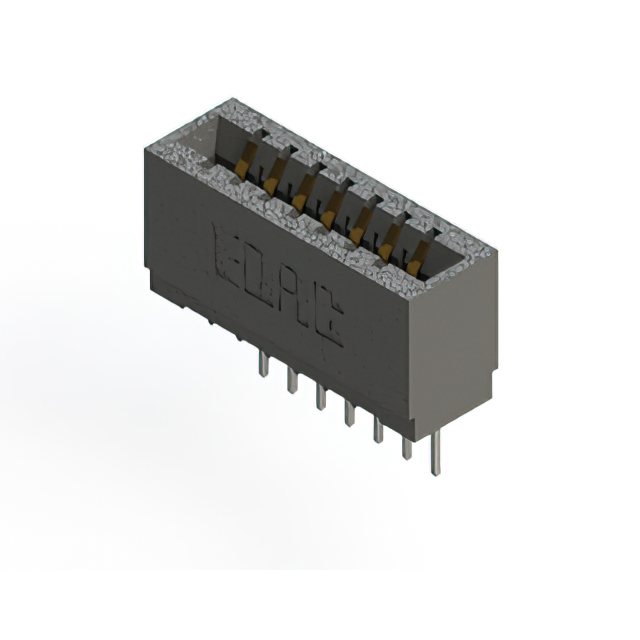

EDAC Inc. 726-007-527-101	1	Black	0.125 in	3.18 mm	Gold	Female	-40 °C	105 ░C	Through Hole	Copper Alloy	0.76 Ám	30 Áin	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	Press-Fit	Polyester Thermoplastic	1	7	Non Specified - Single Edge	Cantilever	7

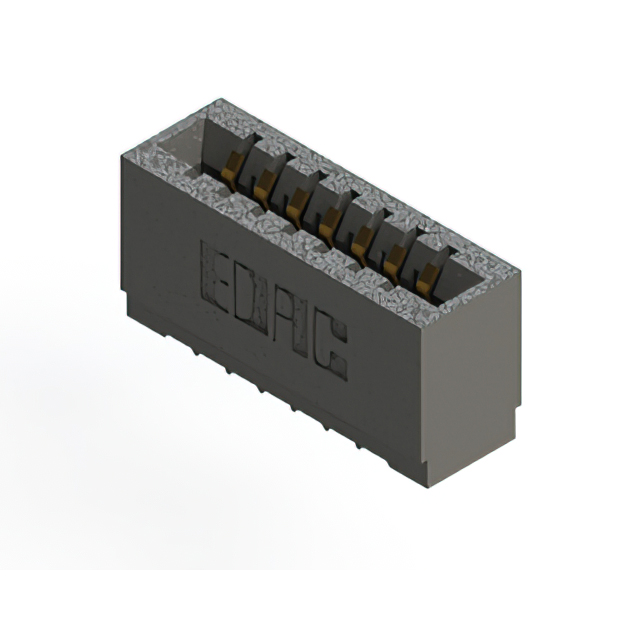

EDAC Inc. 726-007-525-101	1	Black	0.125 in	3.18 mm	Gold	Female	-40 °C	105 ░C	Through Hole	Copper Alloy	0.76 Ám	30 Áin	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	Press-Fit	Polyester Thermoplastic	1	7	Non Specified - Single Edge	Cantilever	7

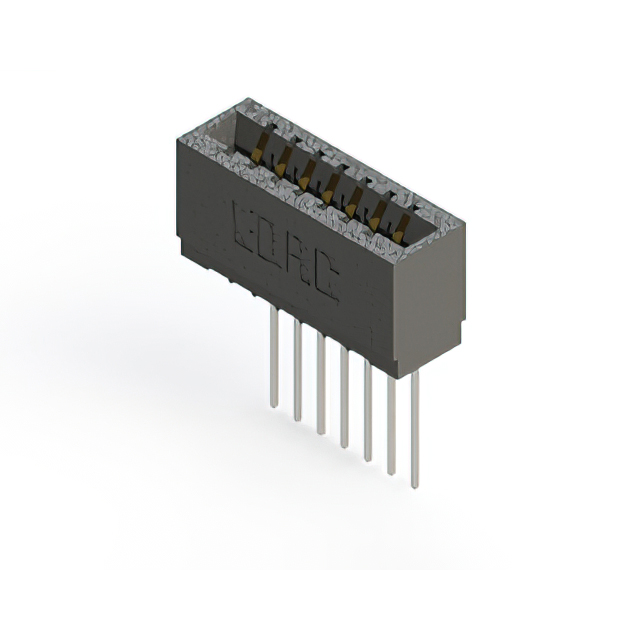

EDAC Inc. 726-007-541-101	1	Black	0.125 in	3.18 mm	Gold	Female	-40 °C	105 ░C	Through Hole	Copper Alloy	0.76 Ám	30 Áin	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	Press-Fit Wire Wrap	Polyester Thermoplastic	1	7	Non Specified - Single Edge	Cantilever	7
