5170/20C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

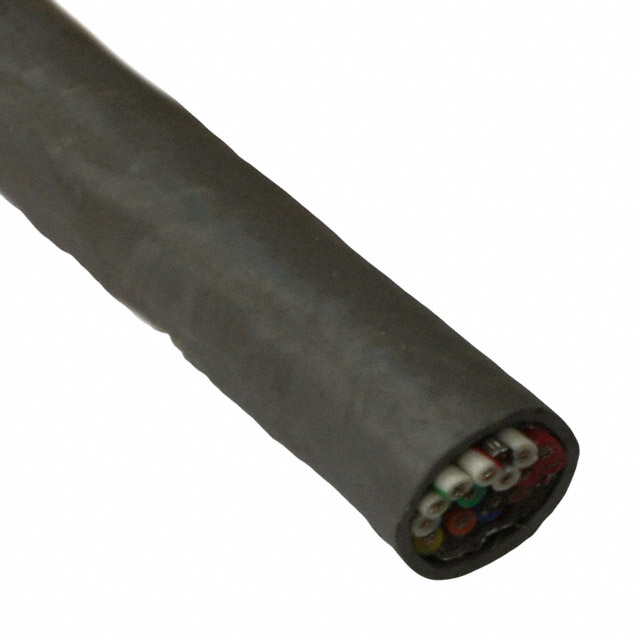

MULTI-CONDUCTOR CABLES 18 AWG 20 CONDUCTOR 300V SUPRASHIELD PVC PVC, 500 FT SPOOL - SLATE
| Part | Shield Coverage | Shield Material | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Features | Length | Length | Ratings | Usage | Cable Type | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Number of Conductors | Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Material | Length | Spool Size [x] | Spool Size [x] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Braid Foil | 0.512 in | 13.01 mm | 18 AWG | 16 | 30 AWG | Poly-Vinyl Chloride (PVC) | Biological Compatibility Drain Wire Rip Cord | 152.4 m | 500 ft | ISO 10993 | Communication Control | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | Slate | 20 | 300 VDC | -35 °C | 105 ░C | Copper Tinned | |||||
ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Braid Foil | 0.512 in | 13.01 mm | 18 AWG | 16 | 30 AWG | Poly-Vinyl Chloride (PVC) | Biological Compatibility Drain Wire Rip Cord | 304.8 m | 1000 ft | ISO 10993 | Communication Control | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | Slate | 20 | 300 VDC | -35 °C | 105 ░C | Copper Tinned | Enter Number of Feet in Order Quantity | 304.8 m | 1000 ft | ||
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Braid Foil | 0.512 in | 13.01 mm | 18 AWG | 16 | 30 AWG | Poly-Vinyl Chloride (PVC) | Biological Compatibility Drain Wire Rip Cord | ISO 10993 | Communication Control | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | Slate | 20 | 300 VDC | -35 °C | 105 ░C | Copper Tinned | |||||||
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Braid Foil | 0.532 in | 13.51 mm | 18 AWG | 16 | 30 AWG | Poly-Vinyl Chloride (PVC) | Biological Compatibility Drain Wire Rip Cord | ISO 10993 | Communication Control | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | Slate | 20 | 300 VDC | -35 °C | 105 ░C | Copper Tinned | 100 ft | 30.5 m | |||||
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Braid Foil | 0.512 in | 13.01 mm | 18 AWG | 16 | 30 AWG | Poly-Vinyl Chloride (PVC) | Biological Compatibility Drain Wire Rip Cord | 304.8 m | 1000 ft | ISO 10993 | Communication Control | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | Black | 20 | 300 VDC | -35 °C | 105 ░C | Copper Tinned |
