2842122 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

8P,2MM,BRK HDR,SRRT,2.8,0.1AU,BO

Part	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Insulation Color	Mounting Type	Insulation Height	Insulation Height	Contact Shape	Insulation Material	Fastening Type	Current Rating (Amps)	Contact Material	Number of Positions Loaded	Connector Type	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Material Flammability Rating	Contact Length - Post [x]	Contact Length - Post	Shrouding	Number of Rows	Contact Type	Contact Finish - Post

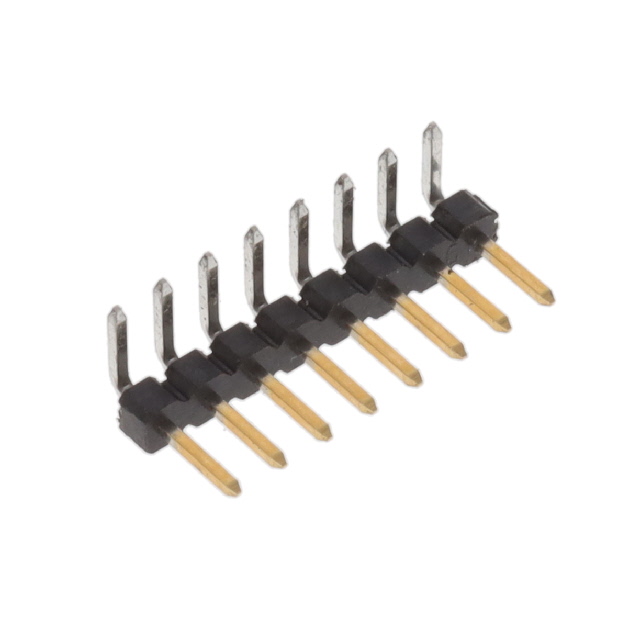

TE Connectivity Raychem Cable Protection 2842122-8	Solder	2 çm	78.7 çin	3.94 µin	0.1 µm	125 VAC	Black	Through Hole Right Angle	1.5 mm	0.059 "	Square	Thermoplastic	Push-Pull	2 A	Copper Alloy	All	Breakaway Header	Gold	4 mm	0.157 in	0.079 in	2 mm	125 °C	-40 °C	8	UL94 V-0	0.11 in	2.79 mm	Unshrouded	1	Male Pin	Tin

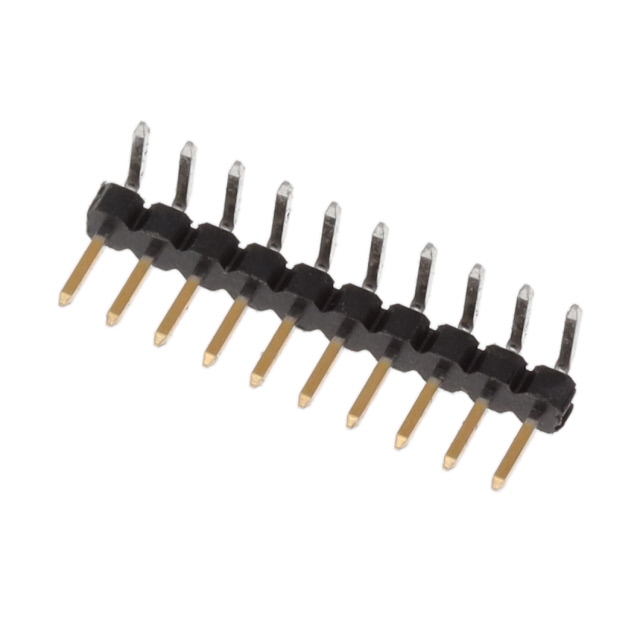

TE Connectivity Raychem Cable Protection 1-2842122-0	Solder	2 çm	78.7 çin	3.94 µin	0.1 µm	125 VAC	Black	Through Hole Right Angle	1.5 mm	0.059 "	Square	Thermoplastic	Push-Pull	2 A	Copper Alloy	All	Breakaway Header	Gold	4 mm	0.157 in	0.079 in	2 mm	125 °C	-40 °C	10	UL94 V-0	0.11 in	2.79 mm	Unshrouded	1	Male Pin	Tin

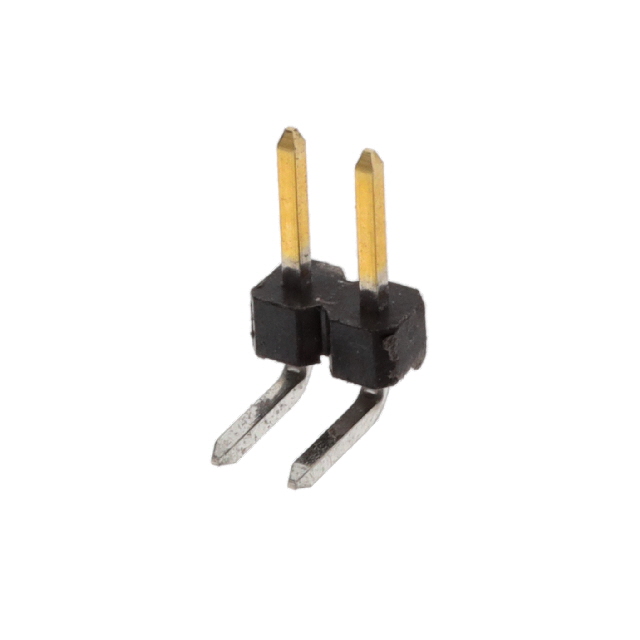

TE Connectivity Raychem Cable Protection 2842122-2	Solder	2 çm	78.7 çin	3.94 µin	0.1 µm	125 VAC	Black	Through Hole Right Angle	1.5 mm	0.059 "	Square	Thermoplastic	Push-Pull	2 A	Copper Alloy	All	Breakaway Header	Gold	4 mm	0.157 in	0.079 in	2 mm	125 °C	-40 °C	2	UL94 V-0	0.11 in	2.79 mm	Unshrouded	1	Male Pin	Tin

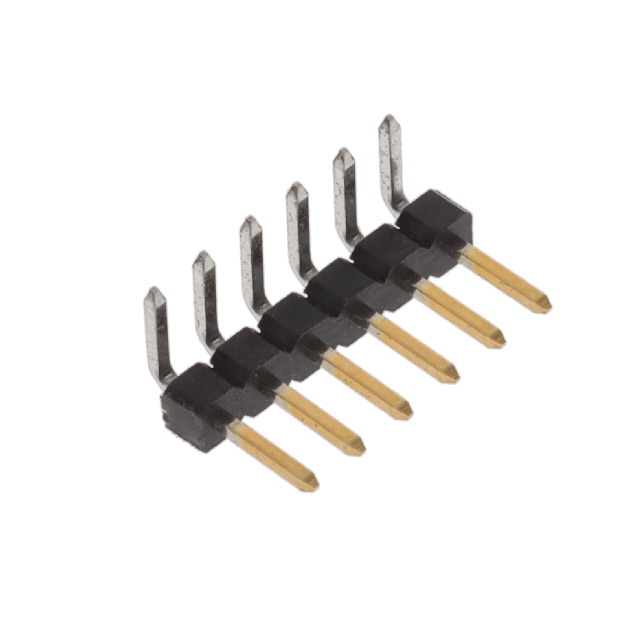

TE Connectivity Raychem Cable Protection 2842122-6	Solder	2 çm	78.7 çin	3.94 µin	0.1 µm	125 VAC	Black	Through Hole Right Angle	1.5 mm	0.059 "	Square	Thermoplastic	Push-Pull	2 A	Copper Alloy	All	Breakaway Header	Gold	4 mm	0.157 in	0.079 in	2 mm	125 °C	-40 °C	6	UL94 V-0	0.11 in	2.79 mm	Unshrouded	1	Male Pin	Tin

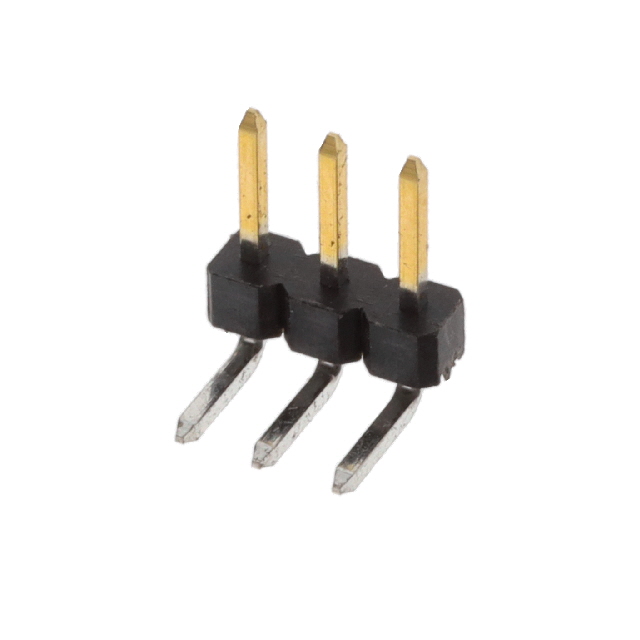

TE Connectivity Raychem Cable Protection 2842122-3	Solder	2 çm	78.7 çin	3.94 µin	0.1 µm	125 VAC	Black	Through Hole Right Angle	1.5 mm	0.059 "	Square	Thermoplastic	Push-Pull	2 A	Copper Alloy	All	Breakaway Header	Gold	4 mm	0.157 in	0.079 in	2 mm	125 °C	-40 °C		UL94 V-0	0.11 in	2.79 mm	Unshrouded	1	Male Pin	Tin

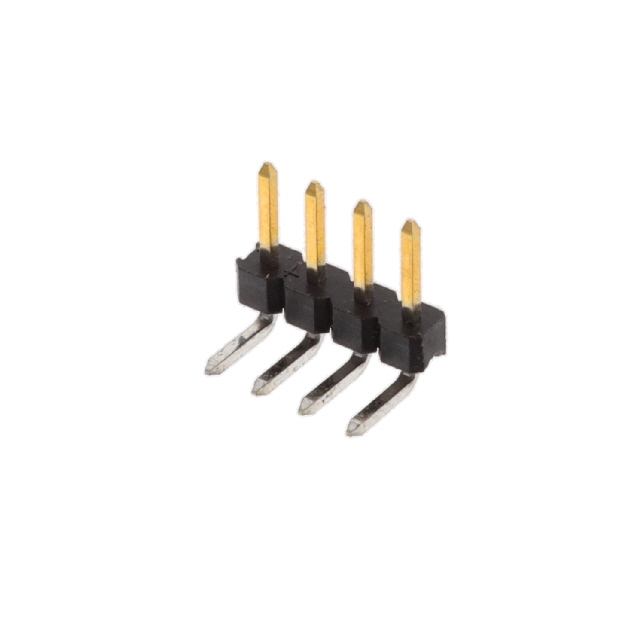

TE Connectivity Raychem Cable Protection 2842122-4	Solder	2 çm	78.7 çin	3.94 µin	0.1 µm	125 VAC	Black	Through Hole Right Angle	1.5 mm	0.059 "	Square	Thermoplastic	Push-Pull	2 A	Copper Alloy	All	Breakaway Header	Gold	4 mm	0.157 in	0.079 in	2 mm	125 °C	-40 °C	4	UL94 V-0	0.11 in	2.79 mm	Unshrouded	1	Male Pin	Tin

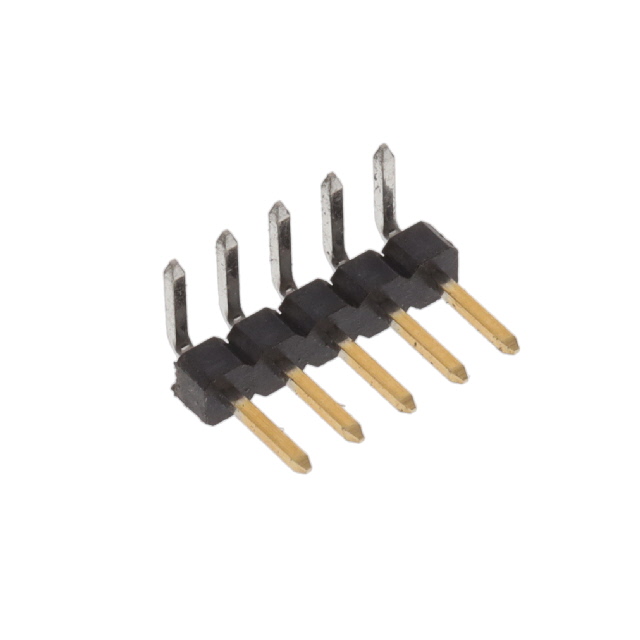

TE Connectivity Raychem Cable Protection 2842122-5	Solder	2 çm	78.7 çin	3.94 µin	0.1 µm	125 VAC	Black	Through Hole Right Angle	1.5 mm	0.059 "	Square	Thermoplastic	Push-Pull	2 A	Copper Alloy	All	Breakaway Header	Gold	4 mm	0.157 in	0.079 in	2 mm	125 °C	-40 °C		UL94 V-0	0.11 in	2.79 mm	Unshrouded	1	Male Pin	Tin
