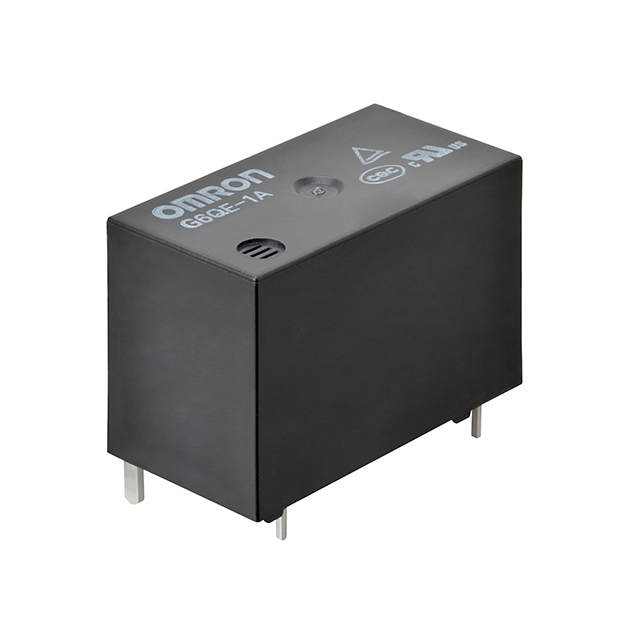

G6QE-1A Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
POWER RELAY, SPST-NO, 12VDC, 32A, TH
| Part | Switching Voltage [Max] | Operate Time | Contact Rating (Current) | Must Release Voltage | Relay Type | Contact Material | Seal Rating | Load - Max Switching [Max] | Coil Resistance | Approval Agency | Coil Current | Mounting Type | Contact Form | Termination Style | Coil Type | Release Time | Must Operate Voltage | Coil Voltage | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 277 VAC | 20 ms | 36 A | 0.6 VDC | General Purpose | Cadmium Free Silver Alloy | Sealed - Flux Protection | 9000 VA | 102.9 Ohms | CQC cULus TUV | 117 mA | Through Hole | SPST-NO (1 Form A) | PC Pin | Non Latching | 10 ms | 8.4 VDC | 12 VDC | 85 °C | -40 °C |
Omron Electronics Inc-EMC Div | 277 VAC | 20 ms | 36 A | 0.25 VDC | General Purpose | Cadmium Free Silver Alloy | Sealed - Flux Protection | 9000 VA | 17.9 Ohms | CQC cULus TUV | 280 mA | Through Hole | SPST-NO (1 Form A) | PC Pin | Non Latching | 10 ms | 3.5 VDC | 5 VDC | 85 °C | -40 °C |
