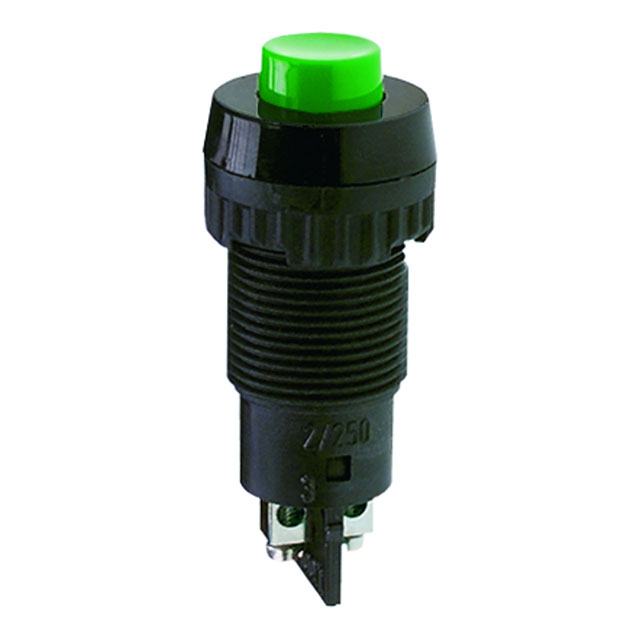

1.10102 Series
Manufacturer: RAFI USA
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
SWITCH PUSH SPST-NO 2A 250V
| Part | Switch Function | Mounting Type | Type | Voltage Rating - AC | Termination Style | Actuator Marking | Panel Cutout Diameter | Panel Cutout Shape | Current Rating | Color - Actuator/Cap | Actuator Type | Operating Temperature (Max) | Operating Temperature (Min) | Ingress Protection | Circuit | Electrical Life (Cycles) | Mechanical Life (Cycles) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 RAFI USA | Off-Mom | Front Panel Mount | Standard | 250 V | Screw Terminal | No Marking | 16.2 mm | Circular | 2 A | White | Button Round | 85 °C | -25 °C | IP40 | SPST-NO | ||
RAFI USA | Off-Mom | Front Panel Mount | Standard | 250 V | Screw Terminal | No Marking | 16.2 mm | Circular | 2 A | White | Button Round | 85 °C | -25 °C | IP40 | SPST-NO | 150000 Cycles | 150000 Cycles |
 RAFI USA | Off-Mom | Front Panel Mount | Standard | 250 V | Screw Terminal | No Marking | 16.2 mm | Circular | 2 A | Red | Button Round | 85 °C | -25 °C | IP40 | SPST-NO | ||
RAFI USA | Off-Mom | Front Panel Mount | Standard | 250 V | Screw Terminal | No Marking | 16.2 mm | Circular | 2 A | Red | Button Round | 85 °C | -25 °C | IP40 | SPST-NO | 150000 Cycles | 150000 Cycles |
RAFI USA | On-Mom | Front Panel Mount | Standard | 250 V | Screw Terminal | No Marking | 16.2 mm | Circular | 2 A | Red | Button Round | 85 °C | -25 °C | IP40 | SPST-NC | ||
RAFI USA | On-Mom | Front Panel Mount | Standard | 250 V | Screw Terminal | No Marking | 16.2 mm | Circular | 2 A | Red | Button Round | 85 °C | -25 °C | IP40 | SPST-NC | 150000 Cycles | 150000 Cycles |
