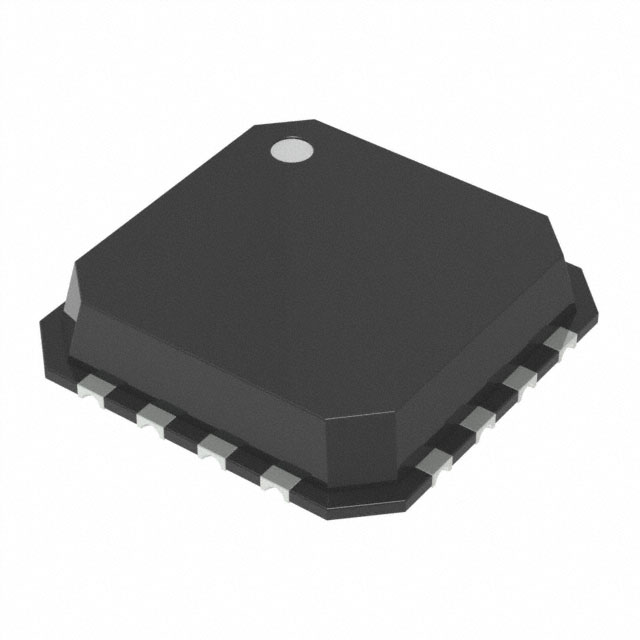

AS5261 Series
Manufacturer: ams-OSRAM USA INC.
Beta
⌘K
SENSOR ANGLE 360DEG SMD
| Part | Supplier Device Package | Operating Temperature [Min] | Operating Temperature [Max] | Rotation Angle - Electrical, Mechanical [Max] | Rotation Angle - Electrical, Mechanical [Min] | Mounting Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Technology | For Measuring | Actuator Type | Package / Case | Termination Style | Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ams-OSRAM USA INC. | 16-MLF (6x6) | -40 C | 150 °C | 360 ° | 0 ° | Surface Mount | 5.5 V | 4.5 V | Hall Effect | Angle | External Magnet Not Included | 16-VQFN Exposed Pad | SMD (SMT) Tab | PWM |
ams-OSRAM USA INC. | 16-MLF (6x6) | -40 C | 150 °C | 360 ° | 0 ° | Surface Mount | 5.5 V | 4.5 V | Hall Effect | Angle | External Magnet Not Included | 16-VQFN Exposed Pad | SMD (SMT) Tab | PWM |
