Interlock Snap-acting Switches
| Part | Features | Termination Style | Switch Function | Operating Position | Operating Position | Voltage Rating - AC | Current Rating (Amps) | Mounting Type | Overtravel | Operating Temperature [Max] | Operating Temperature [Min] | Electrical Life | Circuit | Actuator Type | Operating Force | Operating Position [x] | Operating Position [x] | Overtravel | Voltage Rating - DC | Pretravel | Pretravel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

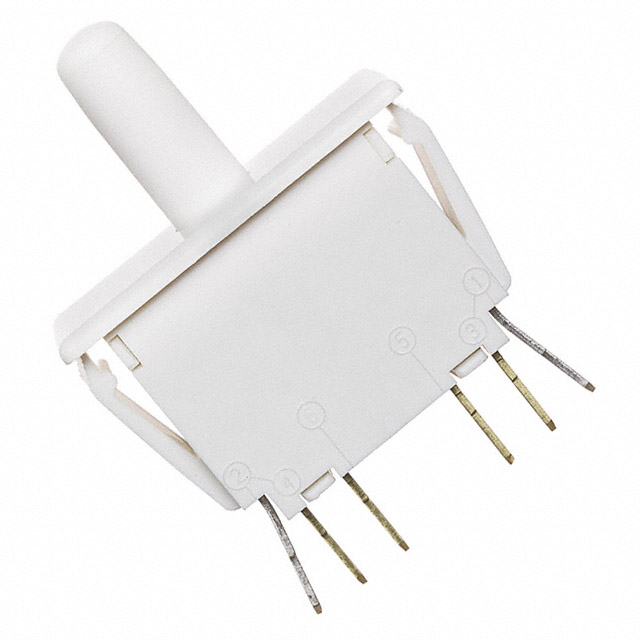

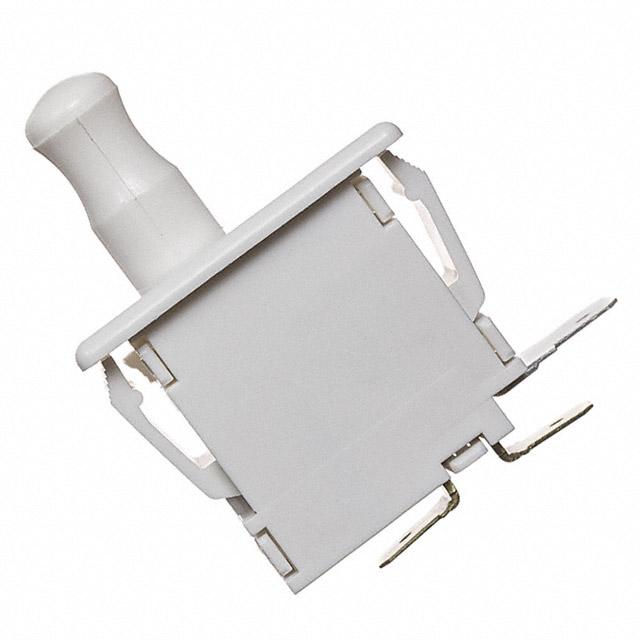

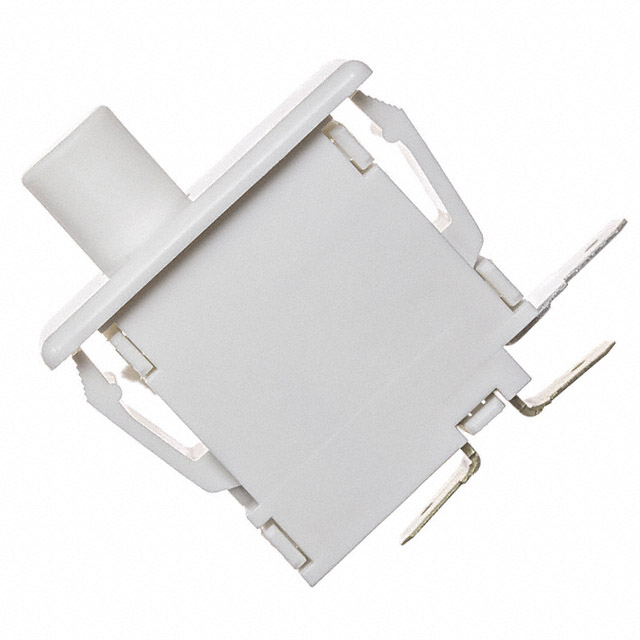

 Littelfuse/Commercial Vehicle Products | Pull On Lock | Quick Connect - 0.187" (4.7mm) | On-Mom | 0.66 in | 16.76 mm | 125 V | 10 A | Panel Mount Snap-In | 0.52 " 13.2 mm | 85 °C | -40 °C | 50000 Cycles | SPDT | Push-Pull Plunger | |||||||
 Littelfuse/Commercial Vehicle Products | Quick Connect - 0.250" (6.3mm) | On-Mom | 125 V | 10 A | Panel Mount Snap-In | 3.2 mm | 85 °C | -40 °C | 50000 Cycles | SPDT | Round (Pin Plunger) | 425 gf | 0.35 in | 8.9 mm | 0.125 in | ||||||

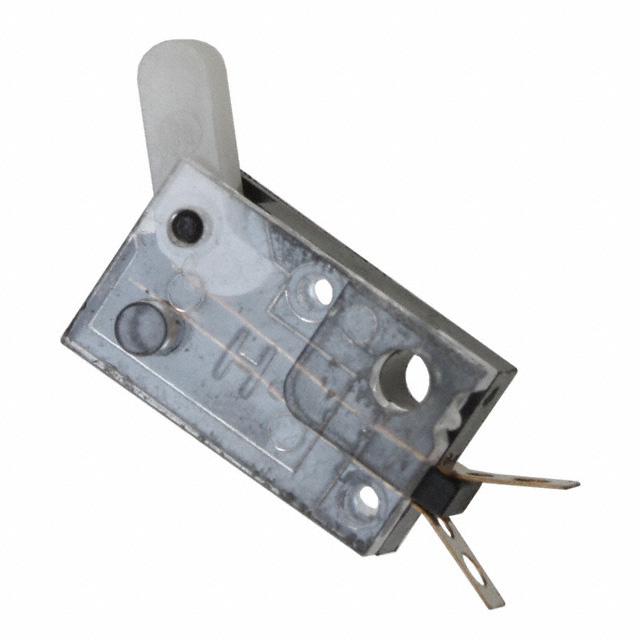

 Littelfuse/Commercial Vehicle Products | Solder Lug | Off-Mom | 100 mA | Chassis Mount | 70 °C | -20 C | 20000 Steps | SPST-NO | Angled Toggle (Detector) | 30 gf | 0.15 in | 3.8 mm | 16 V | ||||||||
Littelfuse/Commercial Vehicle Products | Pull On Lock | Quick Connect - 0.250" (6.3mm) | On-Mom | 0.66 in | 16.76 mm | 125 V | 10 A | Panel Mount Snap-In | 0.52 " 13.2 mm | 85 °C | -40 °C | 50000 Cycles | SPDT | Push-Pull Plunger | |||||||
 Littelfuse/Commercial Vehicle Products | Quick Connect - 0.187" (4.7mm) | On-Mom | 0.77 " | 19.5 mm | 125 V | 100 mA | Panel Mount Snap-In | 10.1 mm | 85 °C | -40 °C | 50000 Cycles | DPDT | Round (Pin Plunger) | 0.68 kgf | 0.398 " | ||||||
 Littelfuse/Commercial Vehicle Products | Quick Connect - 0.250" (6.3mm) | On-Mom | 0.77 " | 19.5 mm | 125 V | 10 A | Panel Mount Snap-In | 10.1 mm | 85 °C | -40 °C | 50000 Cycles | DPDT | Round (Pin Plunger) | 0.68 kgf | 0.398 " | ||||||
 Littelfuse/Commercial Vehicle Products | Pull On Lock | Quick Connect - 0.250" (6.3mm) | On-Mom | 0.66 in | 16.76 mm | 125 V | 10 A | Panel Mount Snap-In | 0.52 " 13.2 mm | 85 °C | -40 °C | 50000 Cycles | DPDT | Push-Pull Plunger | 560 gf | ||||||
Littelfuse/Commercial Vehicle Products | Quick Connect - 0.250" (6.3mm) | On-Mom | 125 V | 100 mA | Panel Mount Snap-In | 3.2 mm | 85 °C | -40 °C | 50000 Cycles | SPDT | Round (Pin Plunger) | 425 gf | 0.35 in | 8.9 mm | 0.125 in | ||||||
 Littelfuse/Commercial Vehicle Products | Quick Connect - 0.187" (4.7mm) | On-Mom | 125 V | 100 mA | Panel Mount Snap-In | 3.2 mm | 85 °C | -40 °C | 50000 Cycles | DPDT | Round (Pin Plunger) | 0.68 kgf | 0.35 in | 8.9 mm | 0.125 in | ||||||
 Littelfuse/Commercial Vehicle Products | Board Guide | Gull Wing | Off-Mom | 0.148 " | 3.75 mm | 1 mA | Surface Mount Right Angle | 50000 Cycles | SPST-NO | Angled Toggle (Detector) | 60 gf | 5 V | 0.45 mm | 0.018 in |
Key Features
• Snap-in mounting
• Reliable snap action mechanism
• Latch or momentary
Description
AI
For designers looking to create a circuit interrupt, or the latest interlock or detection switch, C&K’s DS series interlock snap switches are a perfect fit. Featuring snap-in mounting, a reliable snap action mechanism and Halogen-free material, the DS series are RoHS compliant and available in either latch or momentary variations.
