BD2069FJ-M Series

2.4A Current Limit High Side Switch ICs

Catalog

2.4A Current Limit High Side Switch ICs

Part	Supplier Device Package	Rds On (Typ)	Voltage - Supply (Vcc/Vdd)	Output Type	Ratio - Input:Output	Input Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Current - Output (Max) [Max]	Output Configuration	Switch Type	Mounting Type	Fault Protection	Voltage - Load [Min]	Voltage - Load [Max]	Interface	Grade	Package / Case	Package / Case	Package / Case	Qualification

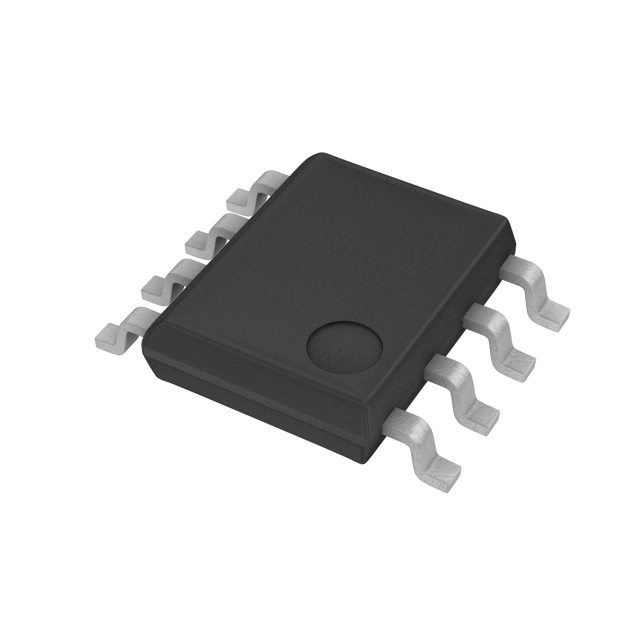

Rohm Semiconductor BD2069FJ-MGE2	8-SOP-J	80 mOhm	Not Required	N-Channel	1:2	Non-Inverting	85 C	-40 ¯C	2	3 A	High Side	USB Switch	Surface Mount	Current Limiting (Fixed) Over Temperature Reverse Current UVLO	2.7 V	5.5 V	On/Off	Automotive	0.154 in	8-SOIC	3.9 mm	AEC-Q100

Catalog

2.4A Current Limit High Side Switch ICs

Description

BD2069FJ-M is dual channel high side switch ICs with an over-current protection for of Universal Serial Bus (USB) power supply line. Its switch unit has two channels of N-Channel power MOSFET. Over current detection circuit, thermal shutdown circuit, under-voltage lockout, and soft-start circuit are built in.
