FMN.0M Series
Manufacturer: LEMO
Beta
⌘K

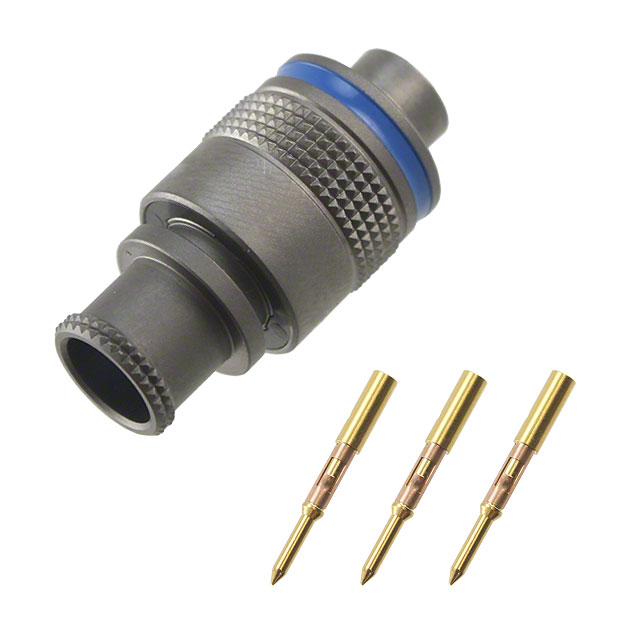

CONN PLUG MALE 2POS GOLD CRIMP
| Part | Contact Finish - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Shell Finish | Primary Material | Current Rating (Amps) | Contact Material | Insert Material | Color | Features | Fastening Type | Mounting Type | Cable Opening | Cable Opening | Orientation | Shell Size - Insert | Shielding | Number of Positions | Ingress Protection | Shell Material | Termination | Connector Type | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO | Gold | 200 °C | -55 C | Aerospace Automotive Aviation Military | Nickel | Metal | 10 A | Brass | Polyetheretherketone (PEEK) | Gray | Coupling Nut | Threaded | Free Hanging (In-Line) | 8 mm | 0.315 in | N (Normal) | 302 | Shielded | 2 | IP68 - Dust Tight Waterproof | Aluminum Alloy | Crimp | Plug Male Pins | 39.4 µin | 1 µm |
LEMO | Gold | 200 °C | -55 C | Aerospace Automotive Aviation Military | Nickel | Metal | 7 A | Brass | Polyetheretherketone (PEEK) | Gray | Coupling Nut | Threaded | Free Hanging (In-Line) | 8 mm | 0.315 in | N (Normal) | 304 | Shielded | 4 | IP68 - Dust Tight Waterproof | Aluminum Alloy | Crimp | Plug Male Pins | 39.4 µin | 1 µm |
LEMO | Gold | 200 °C | -55 C | Aerospace Automotive Aviation Military | Nickel | Metal | 6.5 A | Brass | Polyetheretherketone (PEEK) | Gray | Coupling Nut | Threaded | Free Hanging (In-Line) | 8 mm | 0.315 in | N (Normal) | 305 | Shielded | 5 | IP68 - Dust Tight Waterproof | Aluminum Alloy | Crimp | Plug Male Pins | 39.4 µin | 1 µm |
