D38999/26WJ Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

PLUG ASSY

Part	Shell Material	Primary Material	Type	Housing Color	Contact Shape	Insert Material	Features	Grade	Shielding	Contact Type	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Fastening Type	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Qualification	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size, MIL	Shell Finish	Contact Size	Orientation	Ingress Protection	Note	Connector Type	Mounting Type	Contact Material	Number of Positions	Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Termination	Voltage Rating	Voltage Rating	Shell Size - Insert	Contact Finish - Mating	Current Rating (Amps)
TE Connectivity AMP Connectors D38999/26WJ20SN L/C	Aluminum	Metal	For Female Sockets	Olive Drab	Circular	Thermoplastic	Coupling Nut	Military	Shielded	Crimp	25	20	Threaded	23	4	3	MIL-DTL-38999 Series III	-65 ░C	175 °C	J	Cadmium	8 12 16 20	N (Normal)	Environment Resistant	Contacts Not Included	Plug Housing	Free Hanging (In-Line)
TE Connectivity AMP Connectors D38999/26WJ4PA	Aluminum	Metal				Thermoplastic	Coupling Nut	Military	Shielded				Threaded				MIL-DTL-38999 Series III	-65 ░C	175 °C		Olive Drab Cadmium		A	Environment Resistant		Plug Male Pins	Free Hanging (In-Line)	Copper Alloy	56	Olive Drab	50 µin	1.27 µm	Aviation Communication Systems Industrial Military	Crimp	600 VAC	850 VDC	25-4	Gold
TE Connectivity AMP Connectors D38999/26WJ29SE	Aluminum	Metal				Thermoplastic	Coupling Nut	Military	Shielded		29	25	Threaded				MIL-DTL-38999 Series III	-65 ░C	175 °C		Olive Drab Cadmium		E	Environment Resistant		Plug Female Sockets	Free Hanging (In-Line)	Copper Alloy	29	Olive Drab	50 µin	1.27 µm	Aviation Communication Systems Industrial Military	Crimp	600 VAC	850 VDC		Gold
TE Connectivity AMP Connectors D38999/26WJ35SN	Aluminum	Metal				Thermoplastic	Self Locking	Military	Shielded				Threaded				MIL-DTL-38999 Series III	-65 ░C	175 °C	J	Olive Drab Cadmium		N (Normal)	Environment Resistant		Plug Female Sockets	Free Hanging (In-Line)	Copper Alloy	128	Olive Drab	50 µin	1.27 µm	Aviation Communication Systems Industrial Military	Crimp				Gold	5 A

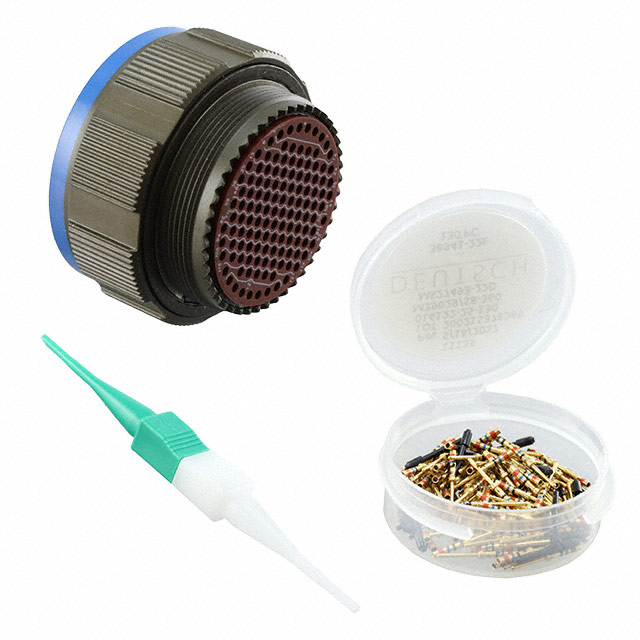

TE Connectivity AMP Connectors D38999/26WJ35PA	Aluminum	Metal				Thermoplastic	Self Locking	Military	Shielded				Threaded				MIL-DTL-38999 Series III	-65 ░C	175 °C	J	Olive Drab Cadmium		A	Environment Resistant		Plug Male Pins	Free Hanging (In-Line)	Copper Alloy	128	Olive Drab	50 µin	1.27 µm	Aviation Communication Systems Industrial Military	Crimp				Gold	5 A
TE Connectivity AMP Connectors D38999/26WJ61SN-LC	Aluminum	Metal	For Female Sockets	Olive Drab	Circular	Thermoplastic	Coupling Nut	Military	Shielded	Crimp	61	25	Threaded				MIL-DTL-38999 Series III	-65 ░C	175 °C	J	Cadmium	20	N (Normal)	Environment Resistant	Contacts Not Included	Plug Housing	Free Hanging (In-Line)		61
TE Connectivity AMP Connectors D38999/26WJ37SE	Aluminum	Metal				Thermoplastic	Self Locking	Military	Shielded		37	25	Threaded				MIL-DTL-38999 Series III	-65 ░C	175 °C	J	Olive Drab Cadmium		E	Environment Resistant		Plug Female Sockets	Free Hanging (In-Line)	Copper Alloy	37	Olive Drab	50 µin	1.27 µm	Aviation Communication Systems Industrial Military	Crimp	750 Vrms 1050 VDC			Gold

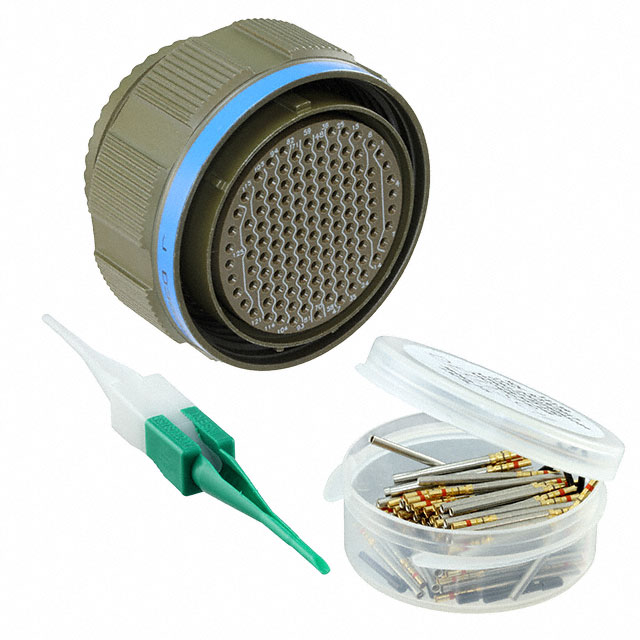

TE Connectivity AMP Connectors D38999/26WJ35SA	Aluminum	Metal				Thermoplastic	Self Locking	Military	Shielded				Threaded				MIL-DTL-38999 Series III	-65 ░C	175 °C	J	Olive Drab Cadmium		A	Environment Resistant		Plug Female Sockets	Free Hanging (In-Line)	Copper Alloy	128	Olive Drab	50 µin	1.27 µm	Aviation Communication Systems Industrial Military	Crimp				Gold	5 A

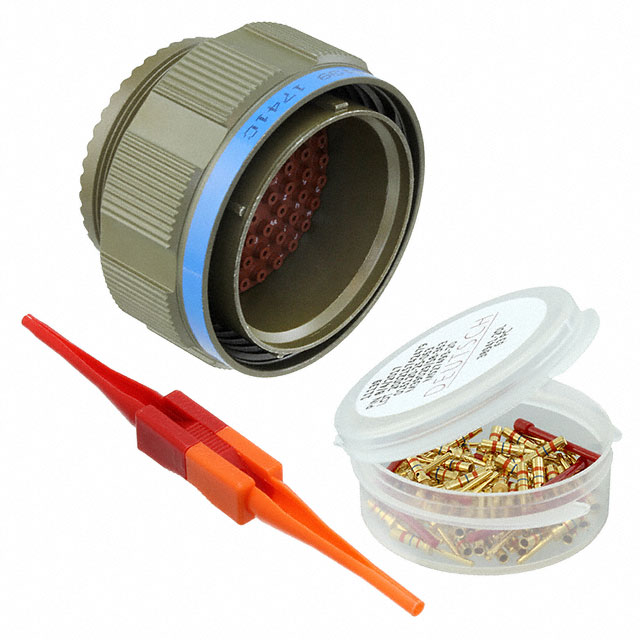

TE Connectivity AMP Connectors D38999/26WJ61PN	Aluminum	Metal				Thermoplastic	Self Locking	Military	Shielded		61	25	Threaded				MIL-DTL-38999 Series III	-65 ░C	175 °C	J	Olive Drab Cadmium		N (Normal)	Environment Resistant		Plug Male Pins	Free Hanging (In-Line)	Copper Alloy	61	Olive Drab	50 µin	1.27 µm	Aviation Communication Systems Industrial Military	Crimp				Gold	7.5 A
