1030A Series
Manufacturer: Belden Inc.
Beta
⌘K

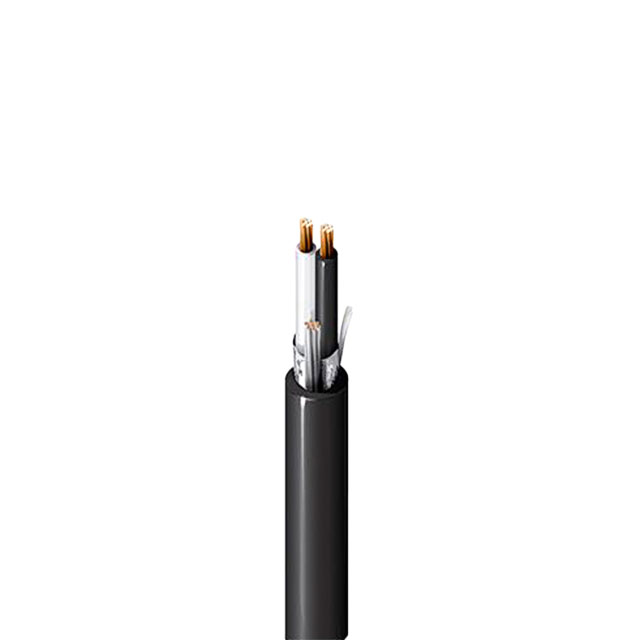

CABLE 2 COND 16AWG BLACK
| Part | Shield Coverage | Length | Length | Shield Material | Conductor Insulation | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Number of Conductors | Jacket (Insulation) Material | Cable Type | Length | Shield Type | Voltage | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Ratings | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | 3048 m | 10000 ft | Aluminum | Poly-Vinyl Chloride (PVC) | Copper Bare | 0.259 in | 6.58 mm | Black | 2 | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Enter Number of Feet in Order Quantity | Foil | 300 VDC | 16 AWG | 7 | 24 AWG | -30 ░C | 105 ░C | 0.94 mm | 0.037 in | |||
Belden Inc. | 100 % | Aluminum | Poly-Vinyl Chloride (PVC) | Copper Bare | 0.259 in | 6.58 mm | Black | 2 | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Foil | 300 VDC | 16 AWG | 7 | 24 AWG | -30 ░C | 105 ░C | 0.94 mm | 0.037 in | ||||||
Belden Inc. | 100 % | 304.8 m | 1000 ft | Aluminum | Poly-Vinyl Chloride (PVC) | Copper Bare | 0.259 in | 6.58 mm | Black | 2 | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Foil | 16 AWG | 7 | 24 AWG | -30 ░C | 105 ░C | 0.94 mm | 0.037 in | UL Style 2464 | ||||
Belden Inc. | 100 % | Aluminum | Poly-Vinyl Chloride (PVC) | Copper Bare | 0.259 in | 6.58 mm | Black | 2 | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Foil | 300 VDC | 16 AWG | 7 | 24 AWG | -30 ░C | 105 ░C | 0.94 mm | 0.037 in | 20000 ft | 6096 m |
