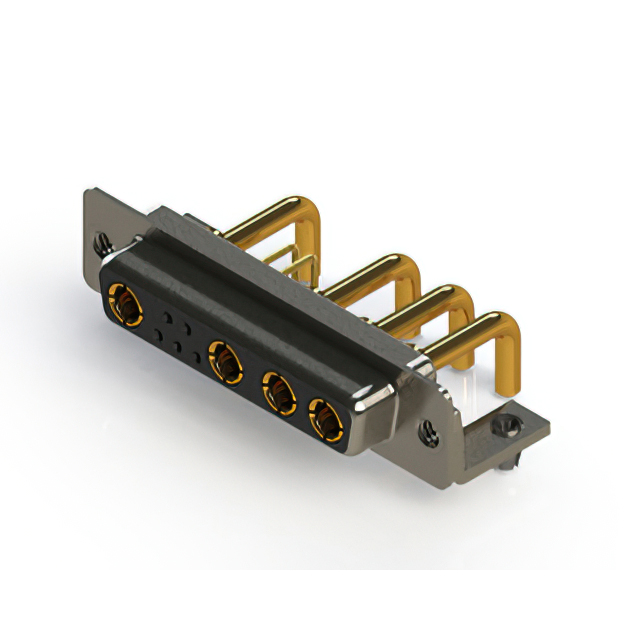

630-9W4 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN D-SUB RCPT 9POS R/A SLDR
| Part | Dielectric Material | Contact Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Color | Termination | Connector Style | Contact Finish Thickness | Material Flammability Rating | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [x] | Contact Finish | Number of Rows [custom] | Flange Feature | Flange Feature | Backset Spacing | Backset Spacing | Number of Positions [Max] | Number of Positions [custom] | Number of Positions [custom] | Mounting Type | Contact Type | Shell Material, Finish | Connector Type | Number of Positions [custom] | Number of Positions [custom] | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness | Features | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | 125 VDC | -55 C | 125 °C | Black | Solder | Combo D-Sub | Flash | UL94 V-0 | DB B - 9W4 | 3 | Gold | 2 | Housing/Shell | 4-40 | 9.4 mm | 0.37 in | 9 | 4 | 5 | Right Angle Through Hole | Coax Signal | Nickel Plated Steel | Receptacle Female Sockets | |||||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | 125 VDC | -55 C | 125 °C | Black | Solder | Combo D-Sub | UL94 V-0 | DB B - 9W4 | 3 | Gold | 2 | Housing/Shell | 4-40 | 9.4 mm | 0.37 in | Right Angle Through Hole | Signal and Power | Nickel Plated Steel | Receptacle Female Sockets | 4 | 5 | 20A 5A | 30 Áin | 0.76 Ám | ||||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | 125 VDC | -55 C | 125 °C | Black | Solder | Combo D-Sub | UL94 V-0 | DB B - 9W4 | 3 | Gold | 2 | 4-40 | 9.4 mm | 0.37 in | Right Angle Through Hole | Signal and Power | Receptacle Female Sockets | 4 | 5 | 20A 5A | 30 Áin | 0.76 Ám | Board Lock Mounting Brackets | |||||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | 125 VDC | -55 C | 125 °C | Black | Solder | Combo D-Sub | UL94 V-0 | DB B - 9W4 | 3 | Gold | 2 | 4-40 | 9.4 mm | 0.37 in | 9 | 4 | 5 | Right Angle Through Hole | Coax Signal | Receptacle Female Sockets | 30 Áin | 0.76 Ám | Board Lock Mounting Brackets | |||||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | 125 VDC | -55 C | 125 °C | Black | Solder | Combo D-Sub | UL94 V-0 | DB B - 9W4 | 3 | Gold | 2 | 4-40 | 9.4 mm | 0.37 in | Right Angle Through Hole | Signal and Power | Receptacle Female Sockets | 4 | 5 | 10A 5A | 30 Áin | 0.76 Ám | Board Lock | |||||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | 125 VDC | -55 C | 125 °C | Black | Solder | Combo D-Sub | Flash | UL94 V-0 | DB B - 9W4 | 3 | Gold | 2 | Housing/Shell (M3) | 9.4 mm | 0.37 in | 9 | 4 | 5 | Right Angle Through Hole | Coax Signal | Receptacle Female Sockets | Mounting Brackets | ||||||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | 125 VDC | -55 C | 125 °C | Black | Solder | Combo D-Sub | Flash | UL94 V-0 | DB B - 9W4 | 3 | Gold | 2 | M3 | 9.4 mm | 0.37 in | Right Angle Through Hole | Signal and Power | Receptacle Female Sockets | 4 | 5 | Mounting Brackets | 5 A 40 A | ||||||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | 125 VDC | -55 C | 125 °C | Black | Solder | Combo D-Sub | Flash | UL94 V-0 | DB B - 9W4 | 3 | Gold | 2 | Housing/Shell (M3) | 9.4 mm | 0.37 in | Right Angle Through Hole | Signal and Power | Receptacle Female Sockets | 4 | 5 | 20A 5A | Board Lock Mounting Brackets | ||||||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | 125 VDC | -55 C | 125 °C | Black | Solder | Combo D-Sub | UL94 V-0 | DB B - 9W4 | 3 | Gold | 2 | Housing/Shell | 4-40 | 9.4 mm | 0.37 in | Right Angle Through Hole | Signal and Power | Nickel Plated Steel | Receptacle Female Sockets | 4 | 5 | 10A 5A | 30 Áin | 0.76 Ám | Mounting Brackets | |||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | 125 VDC | -55 C | 125 °C | Black | Solder | Combo D-Sub | Flash | UL94 V-0 | DB B - 9W4 | 3 | Gold | 2 | M3 | 9.4 mm | 0.37 in | Right Angle Through Hole | Signal and Power | Receptacle Female Sockets | 4 | 5 | Board Lock Mounting Brackets | 5 A 40 A |
