D22018 Series
Manufacturer: NKK Switches
Beta
⌘K

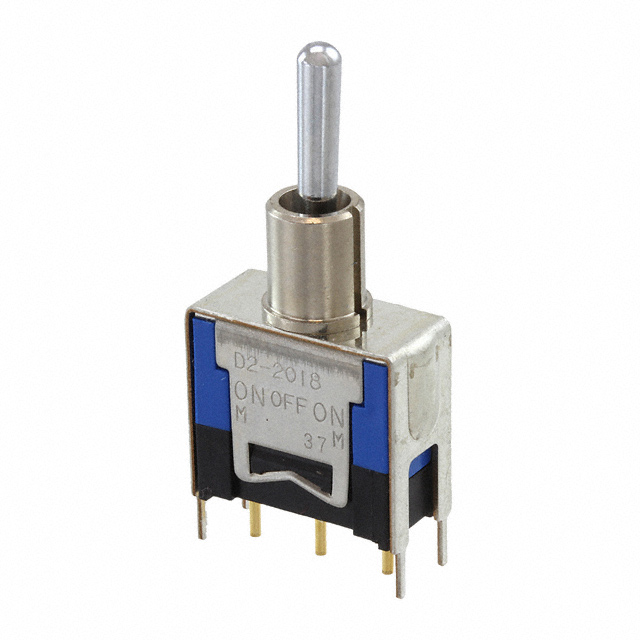

TOGGLE SWITCH, D2 SERIES, SPDT, (ON)-OFF-(ON), PANEL, 48 V
| Part | Electrical Life | Actuator Material | Bushing Thread | Bushing Thread | Circuit | Switch Function | Current Rating (Amps) | Illumination | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Termination Style | Voltage Rating - AC | Panel Cutout Dimensions [diameter] | Voltage Rating - DC | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 50000 Cycles | Brass Chrome Plated | 0.75 | M6 | SPDT | Mom-Off-Mom | 0.4 VA | Non-Illuminated | 70 °C | -10 °C | Standard Round | PC Pin | 48 V | 6.5 mm | 48 V | Panel Mount |
NKK Switches | 50000 Cycles | Brass Chrome Plated | Unthreaded | SPDT | Mom-Off-Mom | 0.4 VA | Non-Illuminated | 70 °C | -10 °C | Standard Round | PC Pin | 48 V | 48 V | Right Angle Through Hole Vertical | ||
 NKK Switches | 50000 Cycles | Brass Chrome Plated | Unthreaded | SPDT | Mom-Off-Mom | 0.4 VA | Non-Illuminated | 70 °C | -10 °C | Standard Round | PC Pin | 48 V | 48 V | Through Hole |
