UF15K Series

Catalog

FAN 172X150X55MM 230V HIGH TEMP

Part	Material - Blade	Current Rating (Amps)	Material - Frame	Weight	Weight	Width	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Bearing Type	Features	Termination	Voltage - Rated	Air Flow	Air Flow	Noise	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	RPM	Static Pressure	Static Pressure	Fan Type	Static Pressure	Weight [custom]	Weight [custom]	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection
Mechatronics Fan Group UF15KMR23-BTHR-F	Metal	0.38 A	Aluminum	1.1 kg	2.4 lbs	55 mm	Rectangular/Rounded	150 mm	172 mm	45 W	Ball	Reverse Air Flow Thermal Overload Protector (TOP)	2	230 VAC	255 CFM	7.14 mł/min	61 dB(A)	-40 C	90 °C	CE cUL TUV UL	3250 RPM	124.5 Pa	0.5 in H2O	Tubeaxial

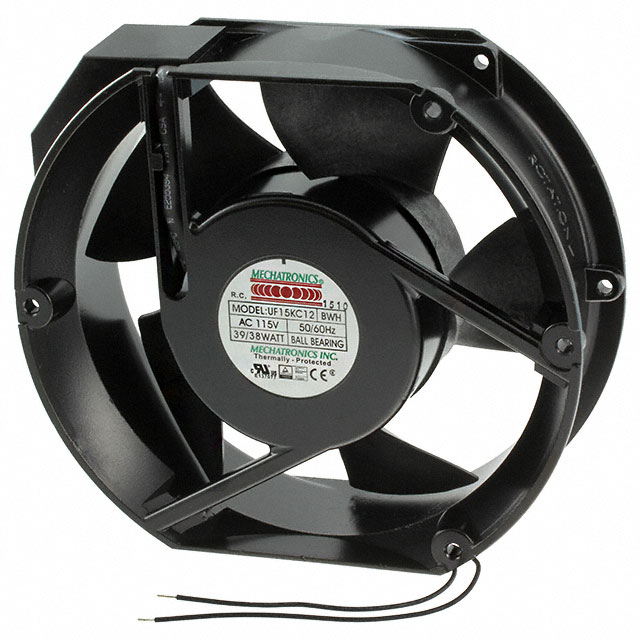

Mechatronics Fan Group UF15KC12-BWHR	Polybutylene Terephthalate (PBT)	0.34 A	Aluminum			55 mm	Rectangular/Rounded	150 mm	172 mm	38 Watts	Ball	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)		115 VAC	293 CFM	8.2 m³/min	60 dB(A)	-40 C	70 °C	CE cUL TUV UL	3400 RPM		224.2 Pa	Tubeaxial	0.9 in H2O	2.3 lbs	1 kg	3 Wire Leads	70 °C	-40 °C

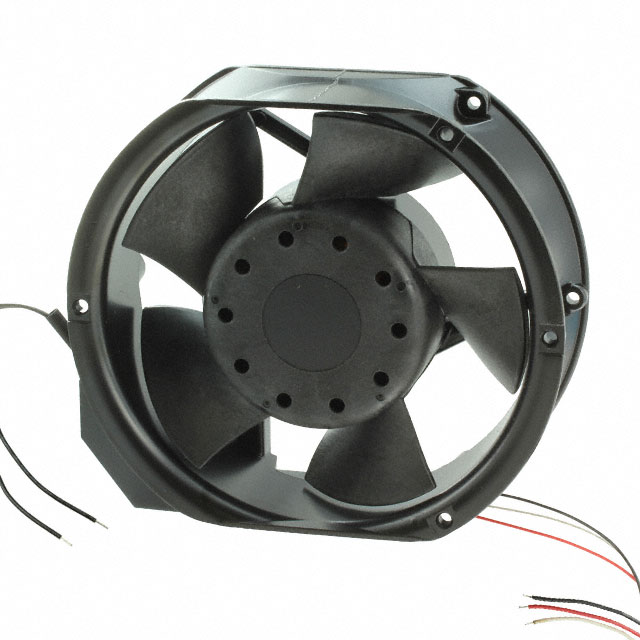

Mechatronics Fan Group UF15KC12-BWHR-B1	Polybutylene Terephthalate (PBT)	0.34 A	Aluminum			55 mm	Rectangular/Rounded	150 mm	172 mm	38 Watts	Ball	Permanent Split Capacitor Motor Speed Sensor (Tach) Thermal Overload Protector (TOP)		115 VAC	293 CFM	8.2 m³/min	60 dB(A)	-40 C	70 °C	CE cUL TUV UL	3400 RPM		224.2 Pa	Tubeaxial	0.9 in H2O	2.3 lbs	1 kg	5 Wire Leads	70 °C	-40 °C
Mechatronics Fan Group UF15KM12-BTHR-F-B1	Metal	0.47 A	Aluminum	1.1 kg	2.4 lbs	55 mm	Rectangular/Rounded	150 mm	172 mm	42 W	Ball	Speed Sensor (Tach) Thermal Overload Protector (TOP)	3 Terminals	115 VAC	230 CFM	6.44 m³/min	53 dB	-40 C	90 °C	CE cUL TUV UL	3250 RPM		156.9 Pa	Tubeaxial	0.63 in H2O
Mechatronics Fan Group UF15KC23-BTHNR	Polybutylene Terephthalate (PBT)	0.17 A	Aluminum			55 mm	Rectangular/Rounded	150 mm	172 mm	38 Watts	Ball	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	3 Terminals	230 VAC	293 CFM	8.2 m³/min	60 dB(A)	-40 C	70 °C	CE cUL TUV UL	3400 RPM		224.2 Pa	Tubeaxial	0.9 in H2O	2.3 lbs	1 kg		70 °C	-40 °C	IP55 - Dust Protected Water Resistant
Mechatronics Fan Group UF15KC12-BWHNSR	Polybutylene Terephthalate (PBT)	0.34 A	Aluminum			55 mm	Rectangular/Rounded	150 mm	172 mm	38 Watts	Ball	Permanent Split Capacitor Motor Salt Fog Rated Thermal Overload Protector (TOP)		115 VAC	293 CFM	8.2 m³/min	60 dB(A)	-40 C	70 °C	CE cUL TUV UL	3400 RPM		224.2 Pa	Tubeaxial	0.9 in H2O	2.3 lbs	1 kg	4 Wire Leads	70 °C	-40 °C	IP55 - Dust Protected Water Resistant
Mechatronics Fan Group UF15KC12-BWHNSR-B1	Polybutylene Terephthalate (PBT)	0.34 A	Aluminum			55 mm	Rectangular/Rounded	150 mm	172 mm	38 Watts	Ball	Permanent Split Capacitor Motor Salt Fog Rated Speed Sensor (Tach) Thermal Overload Protector (TOP)	5 Terminals	115 VAC	293 CFM	8.2 m³/min	60 dB(A)	-40 C	70 °C	CE cUL TUV UL	3400 RPM		224.2 Pa	Tubeaxial	0.9 in H2O	2.3 lbs	1 kg		70 °C	-40 °C	IP55 - Dust Protected Water Resistant
Mechatronics Fan Group UF15KM23-BTHR-F	Metal	0.37 A	Aluminum	1.1 kg	2.4 lbs	55 mm	Rectangular/Rounded	150 mm	172 mm	42 W	Ball	Thermal Overload Protector (TOP)	2	230 VAC	230 CFM	6.44 m³/min	53 dB	-40 C	90 °C	CE cUL TUV UL	3250 RPM		156.9 Pa	Tubeaxial	0.63 in H2O
Mechatronics Fan Group UF15KC23-BTHR-B2	Polybutylene Terephthalate (PBT)	0.17 A	Aluminum			55 mm	Rectangular/Rounded	150 mm	172 mm	38 Watts	Ball	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	3 Terminals	230 VAC	293 CFM	8.2 m³/min	60 dB(A)	-40 C	70 °C	CE cUL TUV UL	3400 RPM		224.2 Pa	Tubeaxial	0.9 in H2O	2.3 lbs	1 kg		70 °C	-40 °C
Mechatronics Fan Group UF15KM12-BWHR-F	Metal	750 mA	Aluminum	1.1 kg	2.4 lbs	55 mm	Rectangular/Rounded	150 mm	172 mm	42 W	Ball	Thermal Overload Protector (TOP)		115 VAC	230 CFM	6.44 m³/min	53 dB	-40 C	90 °C	CE cUL TUV UL	3250 RPM		156.9 Pa	Tubeaxial	0.63 in H2O			2 Wire Leads
