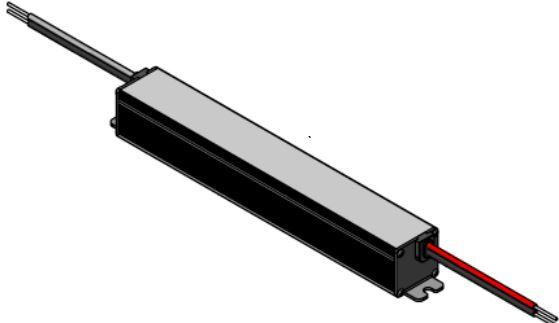

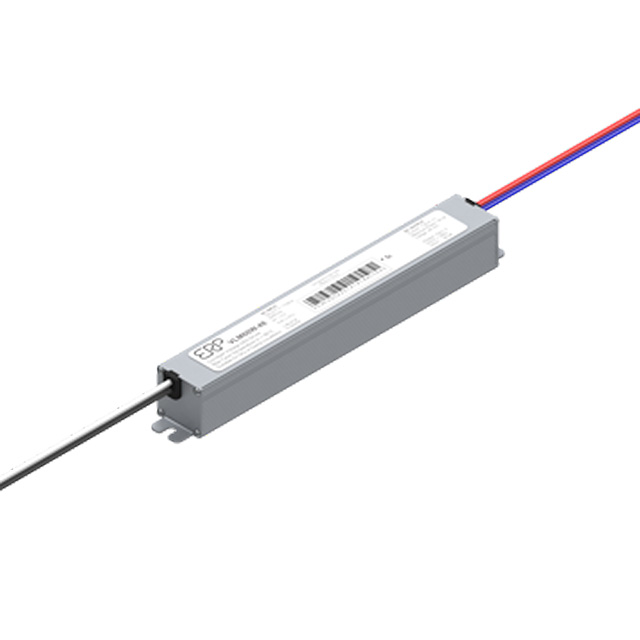

VLM100W Series
Manufacturer: ERP Power, LLC
Beta
⌘K
LED DRIVER CV 120-277VAC 12VDC
| Part | Mounting Type | Approval Agency | Operating Temperature | Voltage - Output | Voltage - Input (Min) [Min] | Power (Watts) | Type | Number of Outputs | Efficiency | Termination Style | Voltage - Input (Max) [Max] | Current - Output (Max) [Max] | Topology | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ERP Power, LLC | Chassis Mount | CB CE cULus | 194 °F | 12 V | 120 VAC | 96 W | Constant Voltage | 1 | 93 % | Wire Leads | 277 VAC | 8 A | AC DC Converter | 1.02 in | 0.75 " | 137 mm | 26 mm | 5.39 " | 19 mm | IP20 |
 ERP Power, LLC | Chassis Mount | CB CE cULus | 194 °F | 24 V | 120 VAC | 96 W | Constant Voltage | 1 | 93 % | Wire Leads | 277 VAC | 4 A | AC DC Converter | 1.02 in | 0.75 " | 137 mm | 26 mm | 5.39 " | 19 mm | IP20 |
ERP Power, LLC | Chassis Mount | CB CE cULus | 194 °F | 48 V | 120 VAC | 96 W | Constant Voltage | 1 | 93 % | Wire Leads | 277 VAC | 2 A | AC DC Converter | 1.02 in | 0.75 " | 137 mm | 26 mm | 5.39 " | 19 mm | IP20 |
