THS4501 Series

High-Speed Fully Differential Amplifier, +/-5 V

Catalog

High-Speed Fully Differential Amplifier, +/-5 V

Part	Gain Bandwidth Product	Output Type	Package / Case	Package / Case [custom]	-3db Bandwidth	Number of Circuits	Operating Temperature [Max]	Operating Temperature [Min]	Amplifier Type	Current - Supply	Voltage - Input Offset	Slew Rate	Current - Input Bias	Supplier Device Package	Voltage - Supply Span (Max) [Max]	Voltage - Supply Span (Min) [Min]	Mounting Type	Package / Case	Current - Output / Channel	Package / Case [y]	Package / Case [x]	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Utilized IC / Part	Supplied Contents	Current - Supply (Main IC)	Contents	Board Type	Channels per IC
Texas Instruments THS4501CDGN	300 MHz	Differential	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm	370 MHz	1	70 °C	0 °C	Differential	23 mA	4 mV	2800 V/µs	4 µA	8-HVSSOP	15 V	4.5 V	Surface Mount
Texas Instruments THS4501IDGK	300 MHz	Differential	8-MSOP 8-TSSOP	0.118 in	370 MHz	1	85 °C	-40 °C	Differential	23 mA	4 mV	2800 V/µs	4 µA		15 V	4.5 V	Surface Mount	3 mm	120 mA
Texas Instruments THS4501CD	300 MHz	Differential	8-SOIC		370 MHz	1	70 °C	0 °C	Differential	23 mA	4 mV	2800 V/µs	4 µA	8-SOIC	15 V	4.5 V	Surface Mount			3.9 mm	0.154 in
Texas Instruments THS4501IDR	300 MHz	Differential	8-SOIC		370 MHz	1	85 °C	-40 °C	Differential	23 mA	4 mV	2800 V/µs	4 µA	8-SOIC	15 V	4.5 V	Surface Mount			3.9 mm	0.154 in

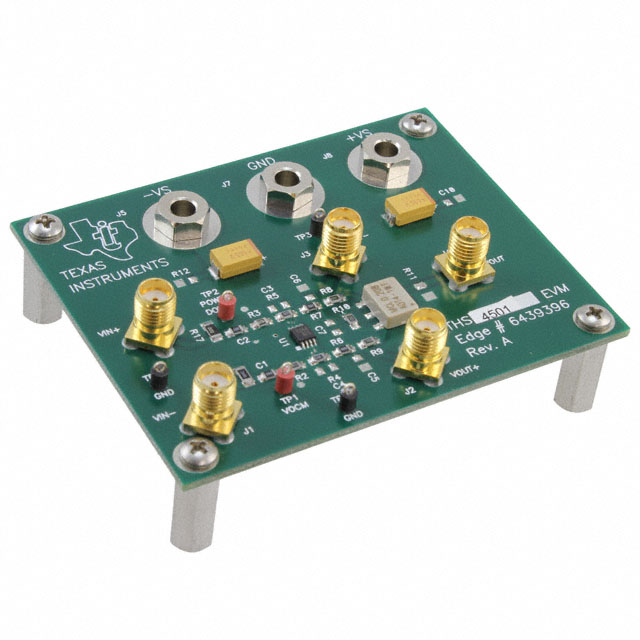

Texas Instruments THS4501EVM	300 MHz	Differential			370 MHz				Differential			2800 V/µs							120 mA 120 mA			-2.25 V 4.5 V	7.5 V 15 V	THS4501	Board(s)	23 mA	Board(s)	Fully Populated	1 - Single
Texas Instruments THS4501ID	300 MHz	Differential	8-SOIC		370 MHz	1	85 °C	-40 °C	Differential	23 mA	4 mV	2800 V/µs	4 µA	8-SOIC	15 V	4.5 V	Surface Mount		120 mA	3.9 mm	0.154 in

Catalog

High-Speed Fully Differential Amplifier, +/-5 V

Key Features

• Fully Differential ArchitectureBandwidth: 370 MHzSlew Rate: 2800 V/µsIMD3: –90 dBc at 30 MHzOIP3: 49 dBm at 30 MHzOutput Common-Mode ControlWide Power-Supply Voltage Range: 5 V, ±5 V, 12 V, 15 VInput Common-Mode Range Shifted to Include Negative Power-Supply RailPower-Down Capability (THS4500)Evaluation Module AvailableFully Differential ArchitectureBandwidth: 370 MHzSlew Rate: 2800 V/µsIMD3: –90 dBc at 30 MHzOIP3: 49 dBm at 30 MHzOutput Common-Mode ControlWide Power-Supply Voltage Range: 5 V, ±5 V, 12 V, 15 VInput Common-Mode Range Shifted to Include Negative Power-Supply RailPower-Down Capability (THS4500)Evaluation Module Available

Description

The THS4500 and THS4501 are high-performance fully differential amplifiers from Texas Instruments. The THS4500, featuring power-down capability, and the THS4501, without power-down capability, set new performance standards for fully differential amplifiers with unsurpassed linearity, supporting 14-bit operation through 40 MHz. Package options include the SOIC-8 and the MSOP-8 with PowerPAD for a smaller footprint, enhanced ac performance, and improved thermal dissipation capability. The THS4500 and THS4501 are high-performance fully differential amplifiers from Texas Instruments. The THS4500, featuring power-down capability, and the THS4501, without power-down capability, set new performance standards for fully differential amplifiers with unsurpassed linearity, supporting 14-bit operation through 40 MHz. Package options include the SOIC-8 and the MSOP-8 with PowerPAD for a smaller footprint, enhanced ac performance, and improved thermal dissipation capability.
