5690111 Series

Manufacturer: DIALIGHT

Catalog

LED CBI 3MM BI-LVL RED/BLANK RA

Part	Current	Voltage Rating	Viewing Angle	Lens Size	Lens Size	Millicandela Rating	Wavelength - Peak	Configuration	Lens Style	Color	Mounting Type	Lens Type	Lens Size [diameter]
DIALIGHT 5690111000F	20 mA	2 V	60 °	3 mm	T-1	10 mcd	635 nm	2 High	Round with Domed Top	Blank (x 1) Red (x 1)	Right Angle Through Hole	Diffused Tinted
DIALIGHT 5690111300F	20 mA	2 V 2.1 V	60 °			10 mcd	585 nm 635 nm	2 High	Round with Domed Top	Red (x 1) Yellow (x 1)	Right Angle Through Hole	Diffused Tinted	3 mm

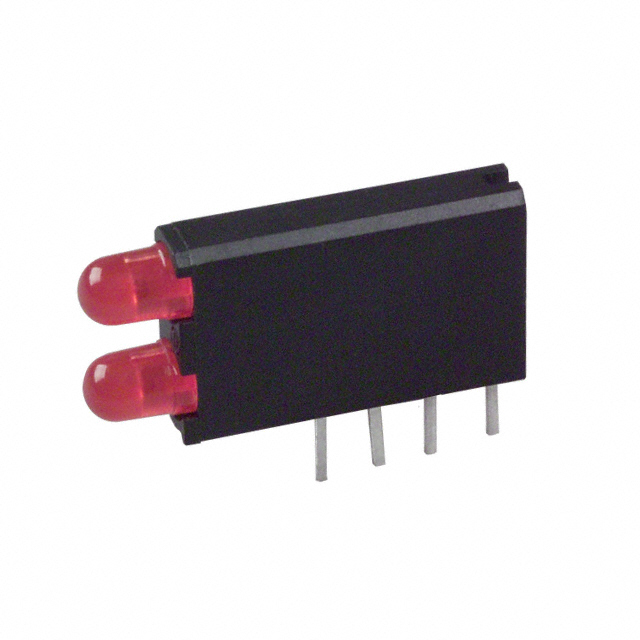

DIALIGHT 5690111100F	20 mA	2 V	60 °			10 mcd	635 nm	2 High		Red	Right Angle Through Hole	Diffused Tinted
DIALIGHT 5690111700F	25 mA 30 mA	1.9 V 2 V	60 °	3 mm	T-1	7.4 mcd 10 mcd	600 nm 635 nm	2 High	Round with Domed Top	Orange (x 1) Red (x 1)	Right Angle Through Hole	Diffused Tinted
DIALIGHT 5690111802F	20 mA					10 mcd 12.5 mcd		2 High	Round with Domed Top		Right Angle Through Hole	Diffused Tinted	3 mm
DIALIGHT 5690111200F	20 mA	2 V 2.1 V	60 °	3 mm	T-1	12.6 mcd	565 nm	2 High	Round with Domed Top	Green (x 1) Red (x 1)	Right Angle Through Hole	Diffused Tinted
DIALIGHT 5690111801F	20 mA			3 mm	T-1	10 mcd 12.5 mcd		2 High	Round with Domed Top		Right Angle Through Hole	Diffused Tinted
