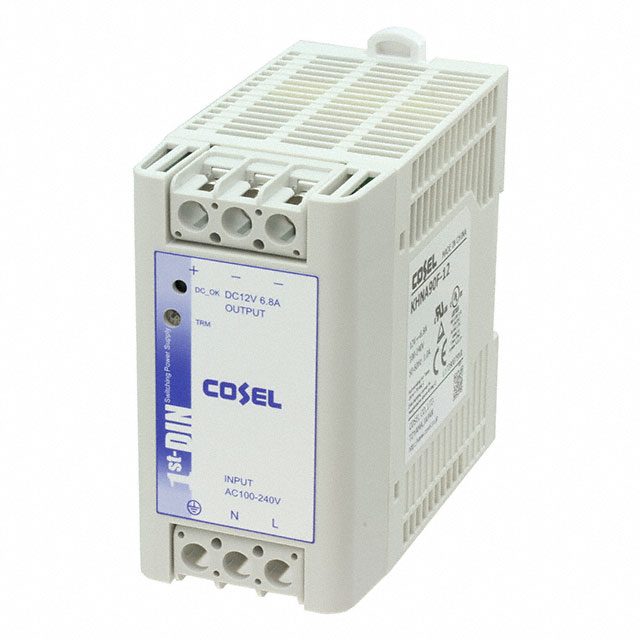

KHNA90F Series
Manufacturer: Cosel USA, Inc.
Beta
⌘K
AC/DC DIN RAIL SUPPLY 12V 90W
| Part | Voltage - Isolation | DC Voltage - Input (Min) [Min] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Voltage - Output 1 | Power (Watts) | Current - Output (Max) [Max] | Input Type | Standard Number | Efficiency | Approval Agency | Number of Outputs | Operating Temperature [Min] | Operating Temperature [Max] | Features | Applications | AC Voltage - Input [Max] | AC Voltage - Input [Min] | DC Voltage - Input (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cosel USA, Inc. | 3000 V | 120 V | 1.97 in | 4.88 in | 4.77 in | 121.2 mm | 50 mm | 124 mm | 12 V | 90 W | 6.8 A | AC or DC | 60950-1 | 88 % | CE cULus cURus TUV | 1 | -20 ░C | 70 °C | Adjustable Output PFC Remote On/Off Universal Input | ITE (Commercial) | 264 VAC | 85 VAC | 370 V |
