3311 Series

Catalog

CONN BNC PLUG R/A 50 OHM PUSH

Part	Cable Group	Connector Style	Fastening Type	Connector Type	Dielectric Material	Body Finish	Includes	Housing Color	Frequency - Max [Max]	Body Material	Contact Termination	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Mating Cycles	Center Contact Material	Shield Termination	Impedance	Number of Ports	Center Contact Plating	Voltage Rating	Termination	Features	Contact Material	Length - Overall [x]	Length - Overall [x]	Terminal Type	Insulation	Wire Gauge	Stud/Tab Size	Contact Finish	Width - Outer Edges [x]	Width - Outer Edges [x]	Thickness	Thickness
TE Connectivity Raychem Cable Protection 331178	188 RG-174	BNC	Bayonet Lock	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Silver	1 Connector 1 Contact 1 Ferrule 1 Gasket	Silver	2.5 GHz	Copper Alloy	Push On	85 °C	-55 °C	Free Hanging (In-Line) Right Angle	500	Brass	Crimp	50 Ohms	1	Gold	500 V

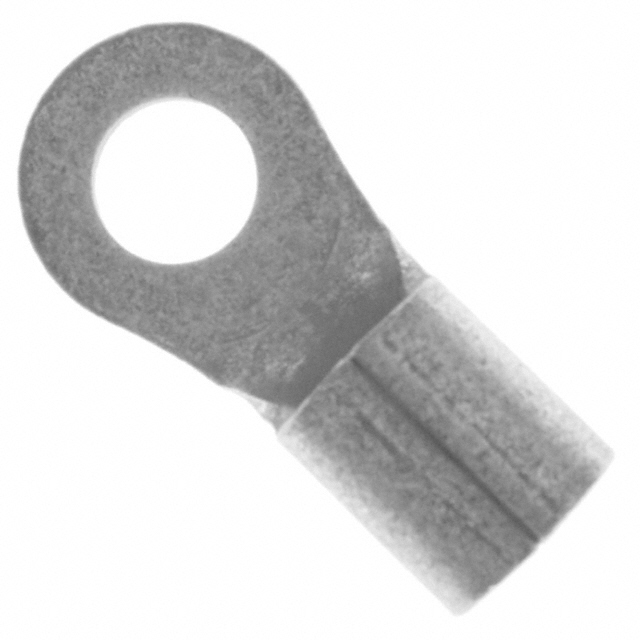

TE Connectivity Raychem Cable Protection 33115														Free Hanging (In-Line)								Crimp	Brazed Seam Serrated Termination	Copper	1.324 "	33.63 mm	Circular	Non-Insulated	4 AWG	0.3125 Stud	Tin	0.625 in	15.88 mm	1.78 mm	0.07 in

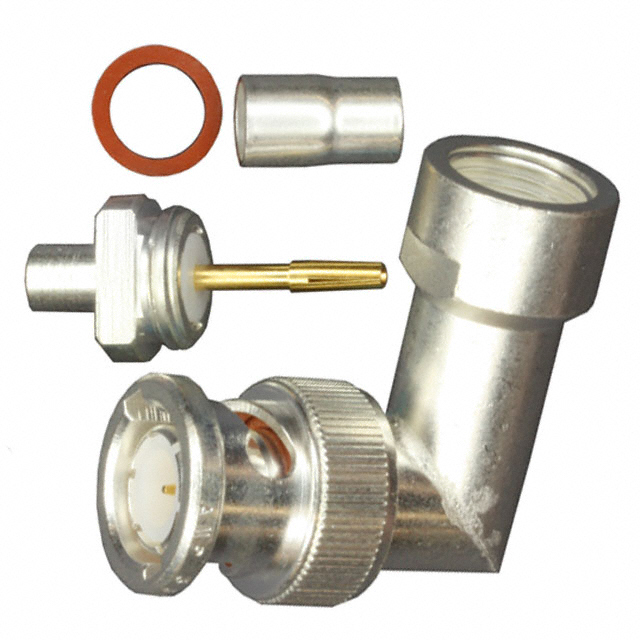

TE Connectivity Raychem Cable Protection 331175	58A 58B 58C RG-58	BNC	Bayonet Lock	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Silver	1 Connector 1 Contact 1 Ferrule 1 Gasket	Silver	2.5 GHz	Copper	Push On	85 °C	-55 °C	Free Hanging (In-Line) Right Angle	500	Brass	Crimp	50 Ohms	1	Gold	500 V
