74LVXT4053 Series

Catalog

ANALOG MULTIPLEXER/DEMULTIPLEXER, 3 CIRCUITS, 2:1, 86 OHM, 2.5V TO 6V, TSSOP-16, -55 °C TO 125 °C

Part	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Current - Leakage (IS(off)) (Max) [Max]	Multiplexer/Demultiplexer Circuit	Mounting Type	Channel-to-Channel Matching (ΔRon)	On-State Resistance (Max) [Max]	-3db Bandwidth	Number of Circuits	Switch Circuit	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Package / Case [x]	Package / Case	Package / Case [y]	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Charge Injection	Voltage - Supply, Dual (V±) [Max]	Voltage - Supply, Dual (V±) [Min]
ON Semiconductor MC74LVXT4053DTRG	16-TSSOP	125 °C	-55 °C	100 nA	2:1	Surface Mount	10 Ohm	26 Ohm	80 MHz	3	SPDT	2.5 V	6 V	0.173 in	16-TSSOP	4.4 mm	10 pF	10 pF	12 pC	6 V	-6 V

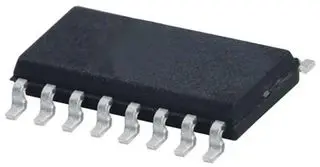

ON Semiconductor MC74LVXT4053DR2G	16-SOIC	125 °C	-55 °C	100 nA	2:1	Surface Mount	10 Ohm	26 Ohm	80 MHz	3	SPDT	2.5 V	6 V	0.154 in	16-SOIC	3.9 mm	10 pF	10 pF	12 pC	6 V	-6 V
