1514 Series

Catalog

CONN BARRIER STRP 14CIRC 0.375"

Part	Material - Insulation	Mounting Type	Material Flammability Rating	Terminal Screw Material	Operating Temperature	Features	Barrier Type	Number of Rows [custom]	Number of Circuits	Bottom Termination	Number of Wire Entries	Top Termination	Wire Gauge [Max]	Wire Gauge [Min]	Pitch	Pitch	Current Rating (Amps)	Terminal Block Type

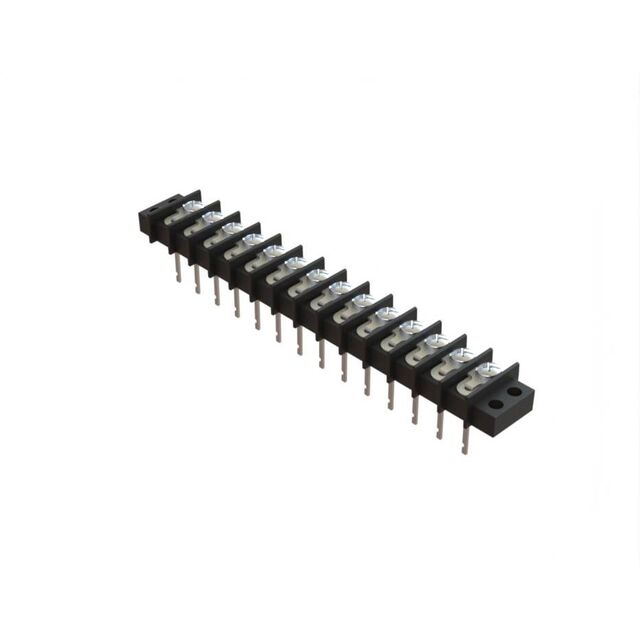

Curtis Industries 1514-YSY	Polyphenylene Oxide (PPO)	Chassis Panel Through Hole	UL94 V-0	Steel	110 °C	Flange	2 Wall (Dual)	2	14	PC Pin	28	Screws	22 AWG	10 AWG	9.53 mm	0.375 in	20 A	Barrier Block

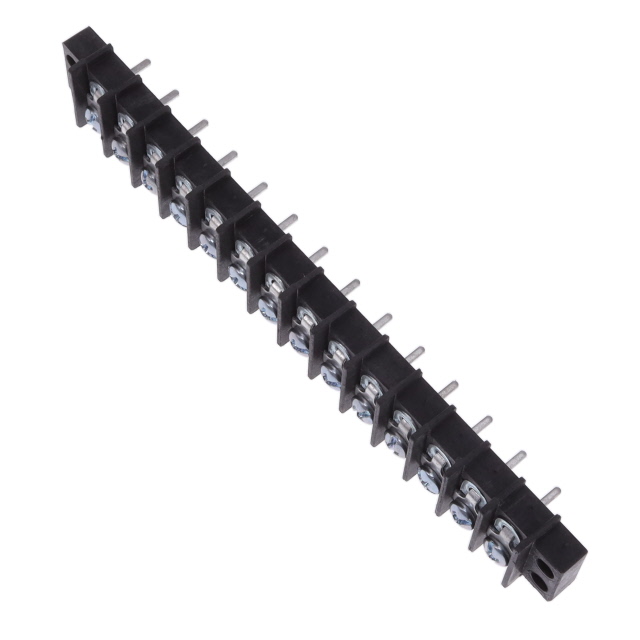

Curtis Industries 1514-Y	Polyphenylene Oxide (PPO)	Chassis Panel Through Hole	UL94 V-0	Steel	110 °C	Flange	2 Wall (Dual)	2	14	PC Pin	28	Screws	22 AWG	10 AWG	9.53 mm	0.375 in	20 A	Barrier Block
Curtis Industries 1514-YWY	Polyphenylene Oxide (PPO)	Chassis Panel Through Hole	UL94 V-0	Steel	110 °C	Flange	2 Wall (Dual)	2	14	Wire Wrap	28	Screws	22 AWG	10 AWG	9.53 mm	0.375 in	20 A	Barrier Block
