NCV47821 Series

LDO Regulator, 200 mA, Low Dropout, High PSRR

Catalog

LDO Regulator, 200 mA, Low Dropout, High PSRR

Part	Board Type	Regulator Type	Voltage - Output [Max]	Voltage - Output [Min]	Channels per IC	Utilized IC / Part	Voltage - Input [Min]	Voltage - Input [Max]	Supplied Contents	Current - Output	Number of Regulators	Grade	Control Features	Output Configuration	Voltage - Input (Max) [Max]	Current - Quiescent (Iq)	Package / Case	Voltage Dropout (Max) [Max]	Output Type	Voltage - Output (Max) [Max]	Supplier Device Package	PSRR	Operating Temperature [Max]	Operating Temperature [Min]	Current - Supply (Max) [Max]	Qualification	Mounting Type	Protection Features	Voltage - Output (Min/Fixed)

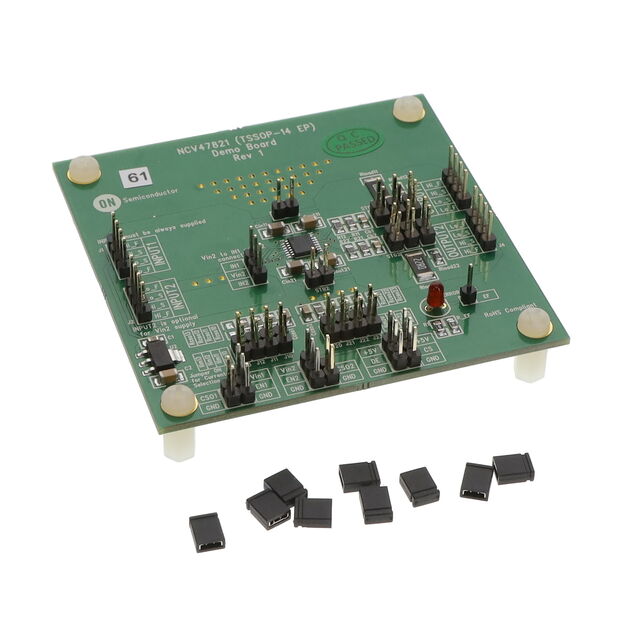

ON Semiconductor NCV47821PAAJGEVB	Fully Populated	Positive Adjustable	20 V	3.3 V	2 - Dual	NCV47821	4.4 V	40 V	Board(s)	200 mA
ON Semiconductor NCV47821PAAJR2G										200 mA	2	Automotive	Enable	Positive	45 V	1 mA	14-TSSOP (0.173" 4.40mm Width) Exposed Pad	0.5 V	Adjustable	20 V	14-TSSOP-EP	75 dB	150 °C	-40 °C	25 mA	AEC-Q100	Surface Mount	Over Current Over Temperature	3.3 V

Catalog

LDO Regulator, 200 mA, Low Dropout, High PSRR

Key Features

• Two Independent Enable Inputs (3.3 V Logic Compatible)

• Adjustable Current Limits: up to 300 mA

• Diagnostic Features:Short to Battery and Open Load detection in OFF StateInternal Components for OFF State DiagnosticsOpen Collector Flag Output

• Adjustable Outputs: 3.3 V to 20 V ±3% Output Voltage

• Output Current per Channel: up to 200 mA

• Protection: Current Limitation, Thermal Shutdown, Reverse Input Voltage

Description

The NCV47821 dual channel LDO regulator with 200 mA per channel is designed for use in harsh automotive environments. The device has a high peak input voltage tolerance and reverse input voltage, reverse bias, overcurrent and overtemperature protections. The integrated current sense feature (adjustable by resistor connected to CSO pin for each channel) provides diagnosis and system protection functionality. The CSO pin output current creates voltage drop across CSO resistor which is proportional to output current of each channel. Extended diagnostic features in OFF state are also available and controlled by dedicated input and output pins.
