NPTC212 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

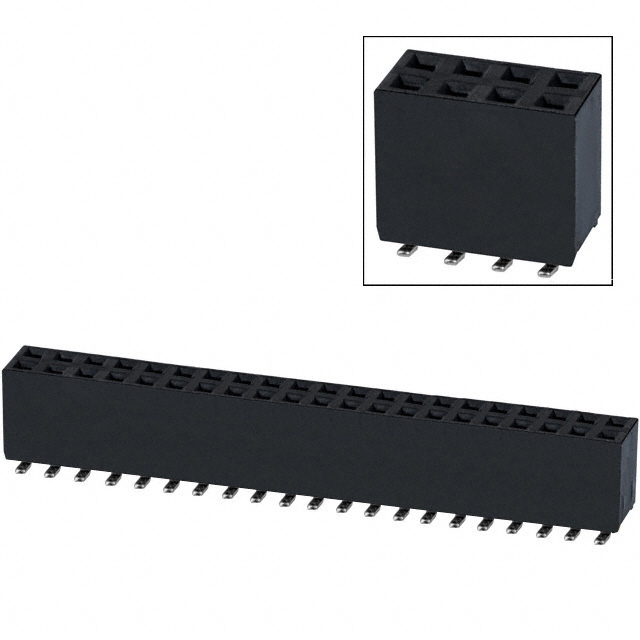

CONN HDR 42POS 0.1 TIN SMD
| Part | Contact Shape | Insulation Material | Contact Material | Pitch - Mating | Pitch - Mating | Insulation Height [z] | Insulation Height | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Connector Type | Mounting Type | Voltage Rating | Contact Type | Current Rating (Amps) | Termination | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Post | Insulation Color | Number of Positions | Material Flammability Rating | Number of Rows [custom] | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Square | Nylon 6T Polyamide (PA6T) | Phosphor Bronze | 0.1 " | 2.54 mm | 0.299 " | 7.6 mm | 0.1 in | 2.54 mm | Header | Surface Mount | 250 V | Female Socket | 3 A | Solder | Push-Pull | 125 °C | -40 C | Tin | Black | 42 | UL94 V-0 | 2 | All |
