Schaffner FN2010 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
LINE FILTER 250VAC/VDC 1A CHASS
| Part | Configuration | Termination Style | Filter Type | Voltage - Rated AC | Approval Agency | Applications | Current | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Rated DC | Frequency - Operating | Inductance | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Single Stage | Quick Connect | Single Phase | 250 V | CE CSA ENEC UR | General Purpose | 1 A | 100 °C | -25 °C | 250 V | DC ~ 400Hz | 12 mH | Chassis Mount |
TE Connectivity AMP Connectors | Single Stage | Quick Connect | Single Phase | 250 V | CSA ENEC UR | Safety | 10 A | 100 °C | -25 °C | DC ~ 400Hz | 800 µH | Chassis Mount | |

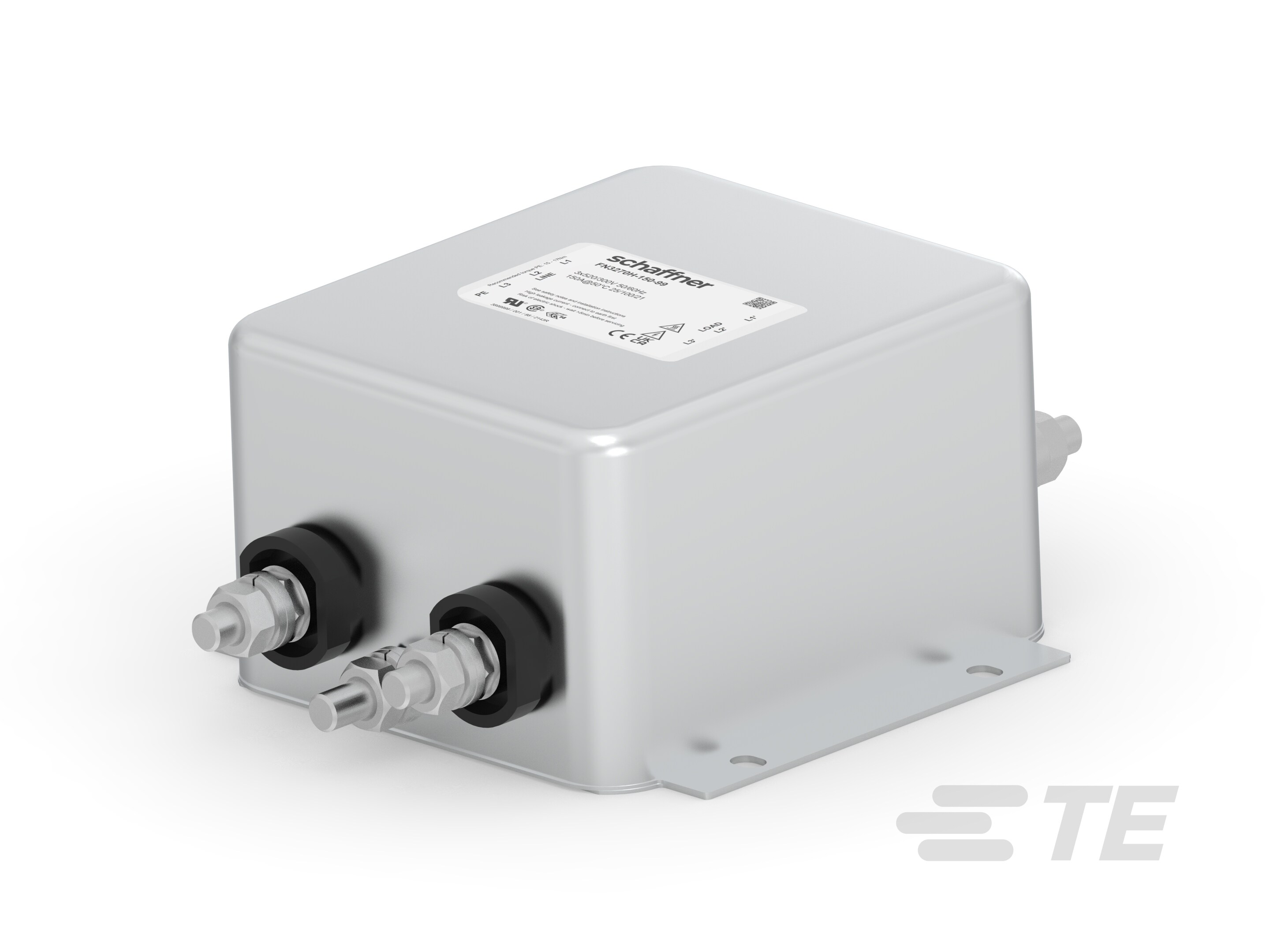

 TE Connectivity AMP Connectors | Single Stage | Threaded Post (M6) | Single Phase | 250 V | CE CSA ENEC UKCA UR | Medical | 60 A | 100 °C | -25 °C | 250 V | DC ~ 400Hz | 1 mH | Chassis Mount |

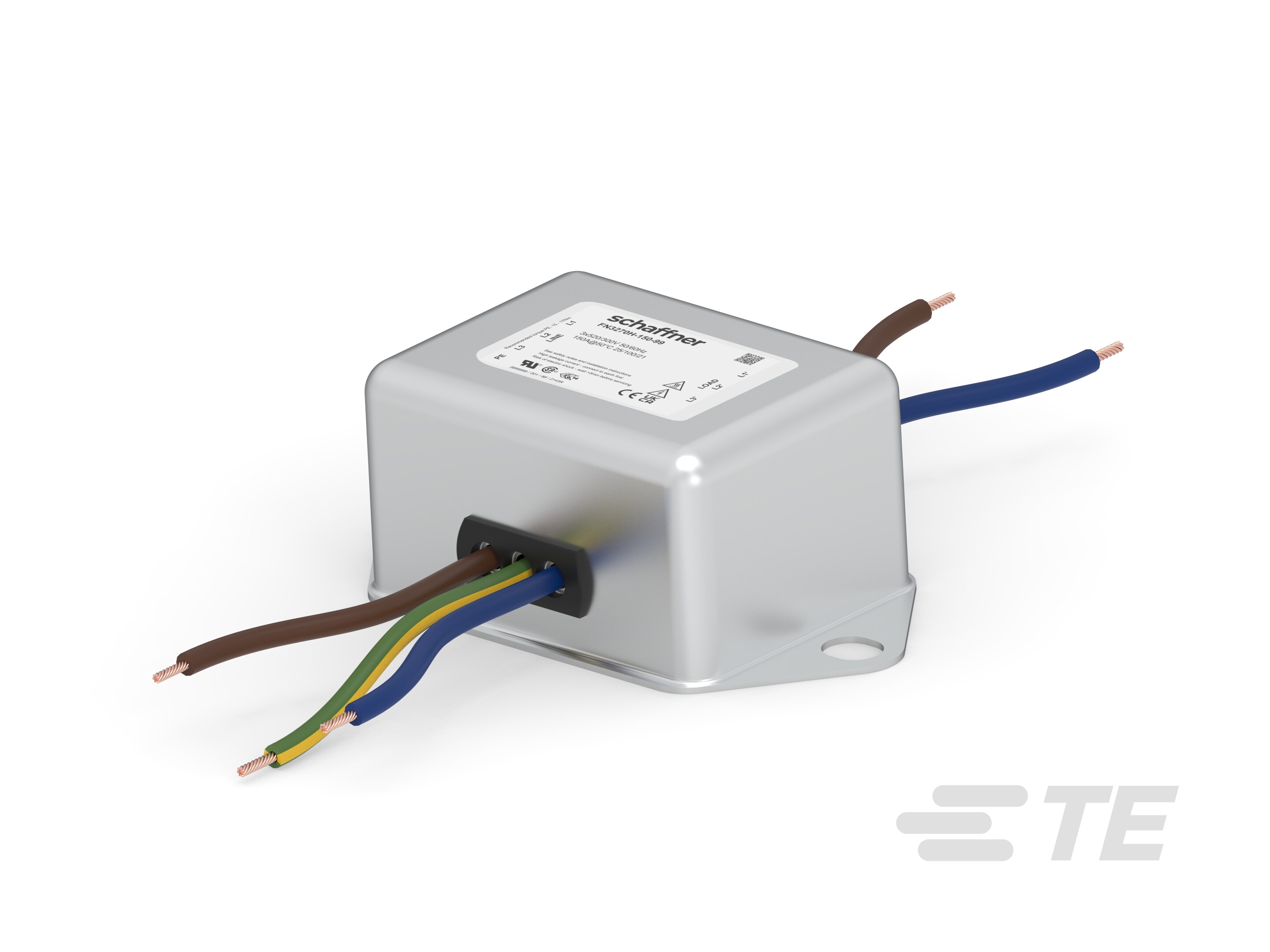

 TE Connectivity AMP Connectors | Single Stage | Wire Leads | Single Phase | 250 V | CSA ENEC UR | General Purpose | 6 A | 100 °C | -25 °C | DC ~ 400Hz | 1 mH | Chassis Mount | |
 TE Connectivity AMP Connectors | Single Stage | Quick Connect | Single Phase | 250 V | CSA ENEC UR | General Purpose | 10 A | 100 °C | -25 °C | DC ~ 400Hz | 800 µH | Chassis Mount | |
 TE Connectivity AMP Connectors | Single Stage | Wire Leads | Single Phase | 250 V | CE CQC CSA ENEC UKCA UR | Safety | 1 A | 100 °C | -25 °C | 250 V | DC ~ 400Hz | 12 mH | Chassis Mount |

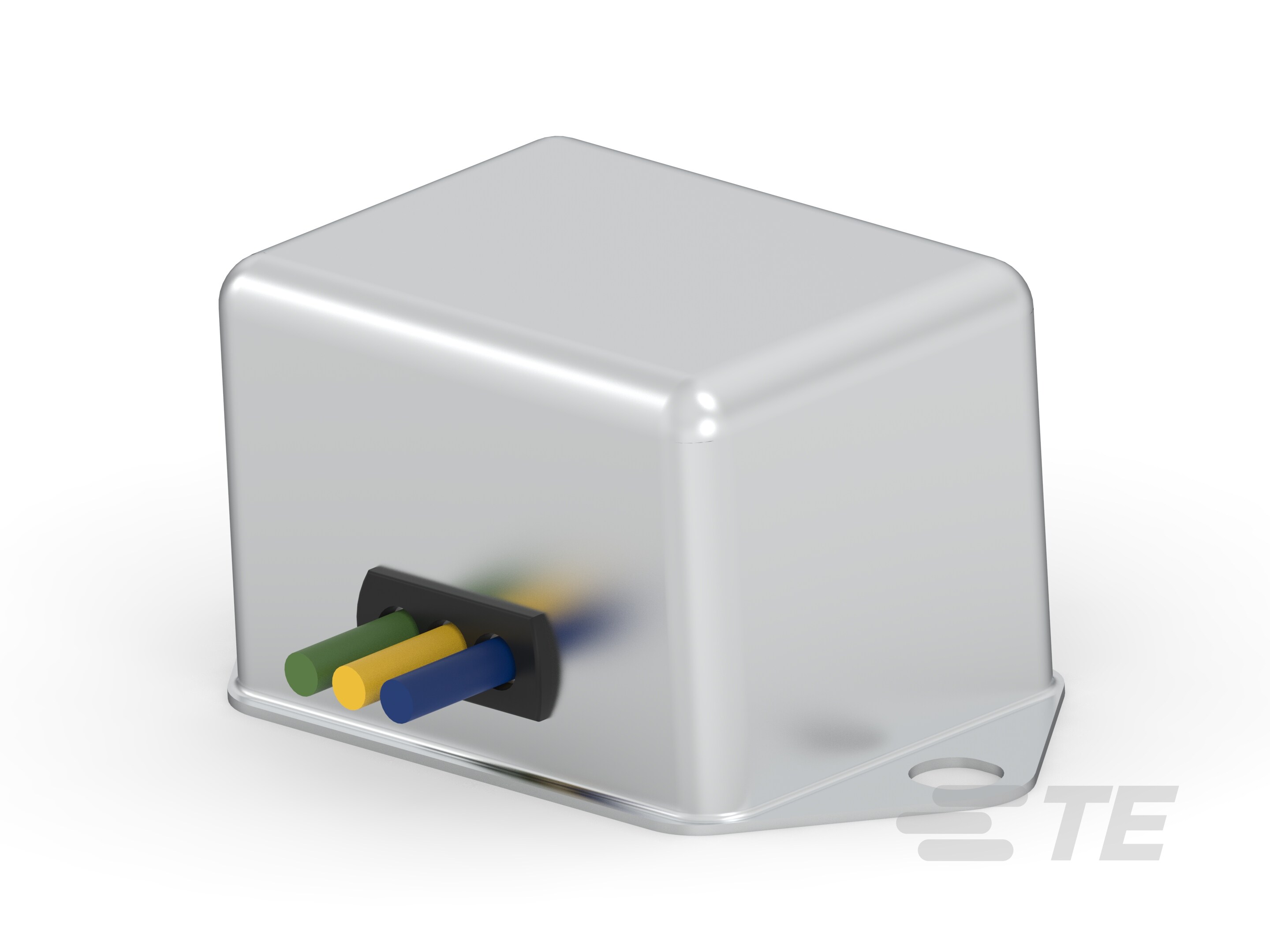

 TE Connectivity AMP Connectors | Single Stage | Wire Leads | Single Phase | 250 V | CSA ENEC UR | General Purpose | 12 A | 100 °C | -25 °C | DC ~ 400Hz | 700 µH | Chassis Mount | |
 TE Connectivity AMP Connectors | Single Stage | Threaded Post (M6) | Single Phase | 250 V | CSA ENEC UR | General Purpose | 60 A | 100 °C | -25 °C | DC ~ 400Hz | 1 mH | Chassis Mount | |
 TE Connectivity AMP Connectors | Single Stage | Threaded Post (M4) | Single Phase | 250 V | CE CSA ENEC UR | General Purpose | 16 A | 100 °C | -25 °C | 250 V | DC ~ 400Hz | 700 µH | Chassis Mount |
TE Connectivity AMP Connectors | Single Stage | Quick Connect | Single Phase | 250 V | CSA ENEC UR | Safety | 1 A | 100 °C | -25 °C | DC ~ 400Hz | 12 mH | Chassis Mount |
