PRO-OB Series

Catalog

RF ANT 868MHZ/2.4GHZ STAMPED MET

Part	Number of Bands	Return Loss	Frequency (Center/Band)	Frequency Group	Applications	Mounting Type	Termination	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Antenna Type	Frequency Range [Min]	Frequency Range [Max]	RF Family/Standard	Height (Max) [z]	Height (Max) [z]	Gain

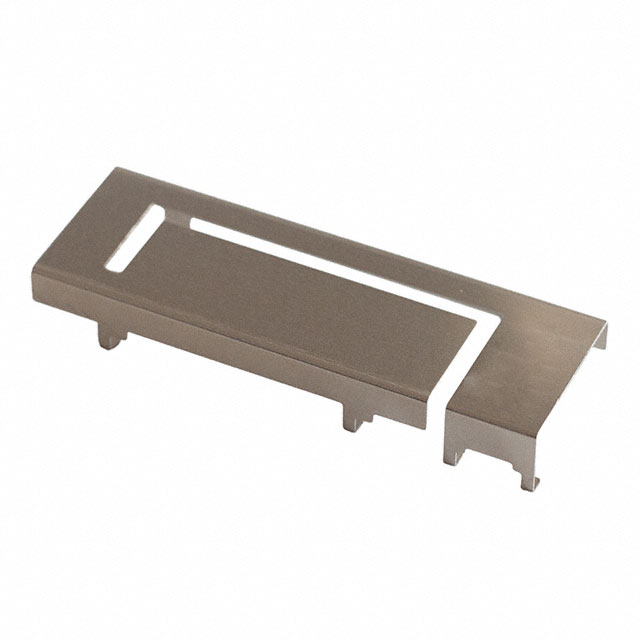

Abracon LLC PRO-OB-518	2	-6 dB	2.4 GHz 868 MHz	UHF (2GHz ~ 3GHz) UHF (300MHz ~ 1GHz)	6LoWPAN Zigbee™	Surface Mount	Solder	0.197 in	5 mm	Stamped Metal	2.4 GHz 860 MHz	2.5 GHz 870 MHz	802.15.4

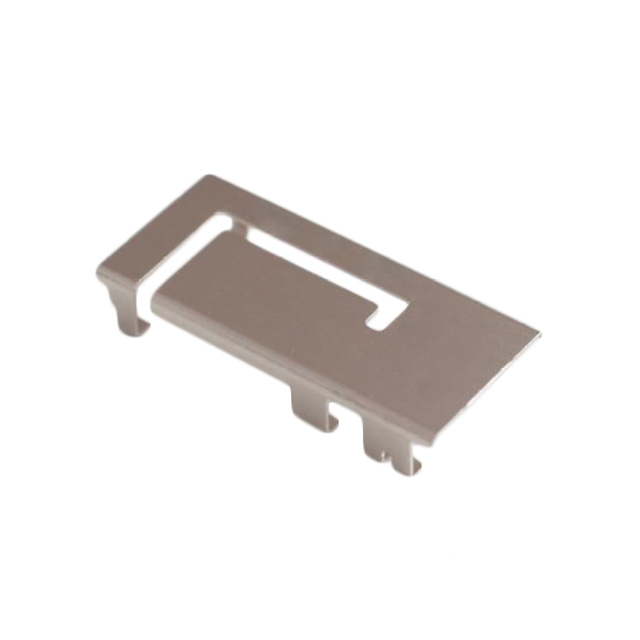

Abracon LLC PRO-OB-536	2	-8 dB	2.4 GHz 5.5 GHz	SHF UHF	Bluetooth WLAN Zigbee™	Surface Mount	Solder	0.098 in	2.5 mm	Stamped Metal	2.4 GHz 5.15 GHz	2.5 GHz 5.85 GHz	802.15.4 Bluetooth WiFi

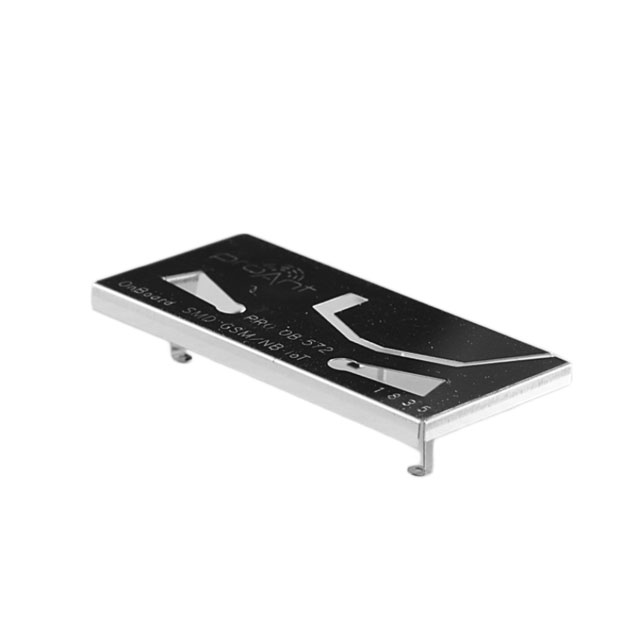

Abracon LLC PRO-OB-572	2	-6 dB	1.94 GHz 875.5 MHz	Wide Band	GSM UMTS	Surface Mount	Solder			Stamped Metal	1.71 GHz 791 MHz	2.17 GHz 960 MHz	Cellular	0.394 in	10 mm

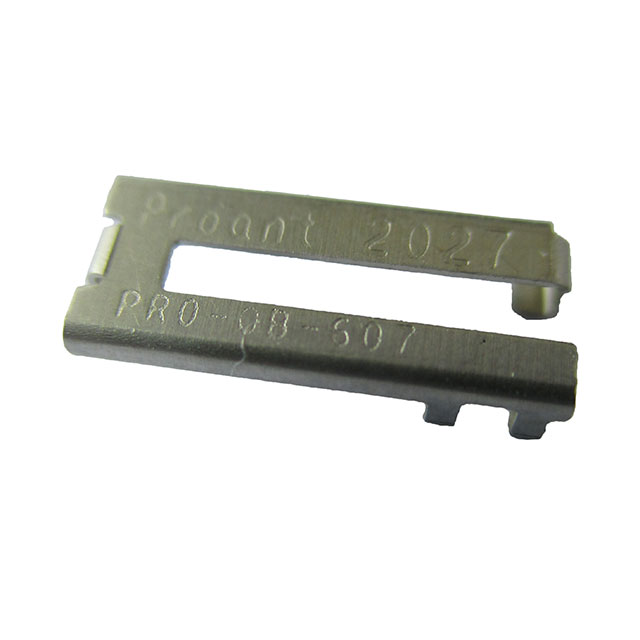

Abracon LLC PRO-OB-607	1	-6.3 dB			Bluetooth IoT Devices Wi-Fi WLAN Zigbee™	Surface Mount	Solder			Stamped Metal	2.4 GHz	2.497 GHz	802.15.4 General ISM WiFi		0.079 in 2 mm	-1.5 dBi
