OQ18 Series
Manufacturer: Amphenol Anytek
Catalog
CONNECTOR: PLUGGABLE TERMINAL BLOCK; SOCKET; MALE; OQ; 20A; 300V
| Part | Contact Tail Length | Contact Tail Length | Header Orientation | Positions Per Level | Material Flammability Rating | Voltage - UL | Pitch [x] | Pitch [x] | Type | Housing Material | Current - UL | Contact Material | Mounting Type | Number of Levels | Color | Termination Style | Insulation Height | Insulation Height | Features | Contact Mating Finish | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Insulation Height [z] | Insulation Height [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Anytek | 0.157 in | 4 mm | Vertical | 18 | UL94 V-0 | 300 V | 5 mm | 0.197 in | Header Male Pins Shrouded (4 Side) | Thermoplastic | 20 A | Copper | Through Hole | 1 | Black | Solder | 0.472 in | 12 mm | Mating Flange | Tin | -40 °C | 115 °C | 18 | ||
 Amphenol Anytek | 0.138 in | 3.5 mm | 90° Right Angle | 18 | UL94 V-0 | 300 V | 5 mm | 0.197 in | Header Male Pins Shrouded (4 Side) | Thermoplastic Resin | 12 A | Copper Alloy | Through Hole | 1 | Green | Solder | 0.335 " | 8.51 mm | Tin | -40 °C | 115 °C | 18 | |||

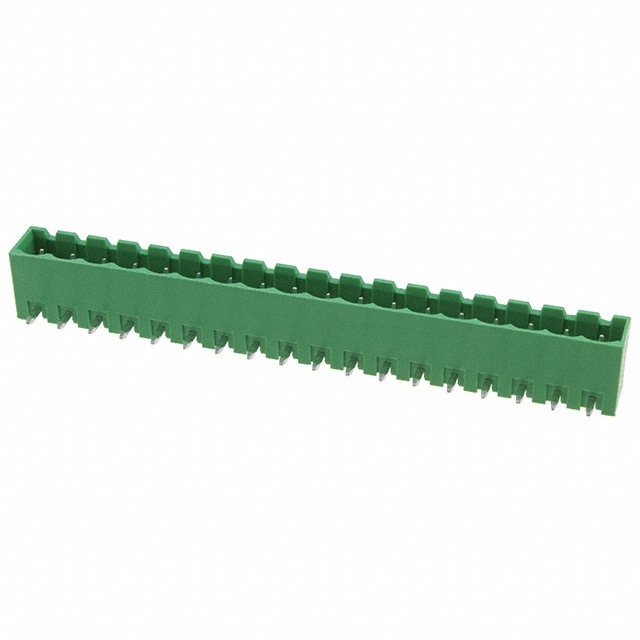

Amphenol Anytek | 0.157 in | 4 mm | Vertical | 18 | UL94 V-0 | 300 V | 5.08 mm | 0.2 in | Header Male Pins Shrouded (4 Side) | Thermoplastic | 20 A | Copper | Through Hole | 1 | Green | Solder | 0.472 in | 12 mm | Locking Ramp | Tin | -40 °C | 115 °C | 18 | ||
Amphenol Anytek | 0.157 in | 4 mm | Vertical | 18 | UL94 V-0 | 300 V | 5.08 mm | 0.2 in | Header Male Pins Shrouded (4 Side) | Thermoplastic | 20 A | Copper | Through Hole | 1 | Gray | Solder | 0.472 in | 12 mm | Locking Ramp | Tin | -40 °C | 115 °C | 18 | ||
Amphenol Anytek | 0.138 in | 3.5 mm | 90° Right Angle | 18 | UL94 V-0 | 300 V | 5.08 mm | 0.2 in | Header Male Pins Shrouded (4 Side) | Thermoplastic | 20 A | Copper | Through Hole | 1 | Black | Solder | 0.335 " | 8.51 mm | Tin | -40 °C | 115 °C | 18 | |||
Amphenol Anytek | 0.138 in | 3.5 mm | 90° Right Angle | 18 | UL94 V-0 | 300 V | 5.08 mm | 0.2 in | Header Male Pins Shrouded (2 Side) | Thermoplastic | 20 A | Copper | Through Hole | 1 | Green | Solder | 0.335 " | 8.51 mm | Tin | -40 °C | 115 °C | 18 | |||
Amphenol Anytek | 0.138 in | 3.5 mm | 90° Right Angle | 18 | UL94 V-0 | 300 V | 3.81 mm | 0.15 in | Header Male Pins Shrouded (4 Side) | Thermoplastic | 10 A | Copper | Through Hole | 1 | Black | Solder | 0.283 " | 7.19 mm | Tin | -40 °C | 115 °C | 18 | |||
Amphenol Anytek | 0.138 in | 3.5 mm | 90° Right Angle | 18 | UL94 V-0 | 300 V | 3.5 mm | 0.138 in | Header Male Pins Shrouded (4 Side) | Thermoplastic Resin | 10 A | Copper Alloy | Through Hole | 1 | Green | Solder | Tin | -40 °C | 115 °C | 18 | 7 mm | 0.276 in | |||
Amphenol Anytek | 0.138 in | 3.5 mm | 90° Right Angle | 18 | UL94 V-0 | 300 V | 3.5 mm | 0.138 in | Header Male Pins Shrouded (4 Side) | Thermoplastic | 10 A | Copper | Through Hole | 1 | Green | Solder | 0.283 " | 7.19 mm | Locking Ramp | Tin | -40 °C | 115 °C | 18 | ||
Amphenol Anytek | 0.138 in | 3.5 mm | Vertical | 18 | UL94 V-0 | 150 V | 2.5 mm | 0.098 in | Header Male Pins Shrouded (4 Side) | Thermoplastic | 4 A | Copper | Through Hole | 1 | Black | Solder | 0.398 in | 10.11 mm | Tin | -40 °C | 115 °C | 18 |
