S13B-ZR Series

Catalog

CONN HEADER SMD R/A 13POS 1.5MM

Part	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Color	Termination	Shrouding	Features	Fastening Type	Material Flammability Rating	Insulation Height	Insulation Height	Insulation Material	Number of Rows	Style	Connector Type	Number of Positions Loaded	Contact Shape	Contact Type	Contact Material	Mounting Type	Number of Positions	Contact Finish - Post	Voltage Rating	Contact Length - Mating	Contact Length - Mating	Contact Length - Post [x]	Contact Length - Post	Contact Length - Post [x]
JST Sales America Inc. S13B-ZR-SM4A-TF	85 °C	-25 °C	Natural	Solder	Shrouded - 4 Wall	Solder Retention	Detent Lock	UL94 V-0	3.7 mm	0.146 in	Nylon 6T Polyamide (PA6T)	1	Board to Cable/Wire	Header	All	Circular	Male Pin	Brass	Right Angle Surface Mount	13	Tin	50 V

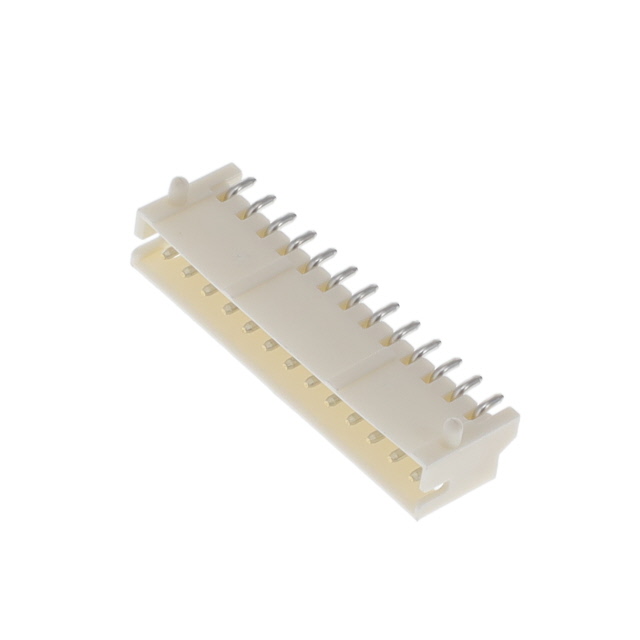

JST Sales America Inc. S13B-ZR-SM2-TF	85 °C	-25 °C	Natural	Solder	Shrouded - 4 Wall	Board Guide	Detent Lock	UL94 V-0	3.7 mm	0.146 in	Glass Filled Nylon 4/6 Polyamide (PA46)	1	Board to Cable/Wire	Header	All	Circular	Male Pin	Brass	Right Angle Surface Mount	13	Tin	50 V	2.4 mm	0.094 in

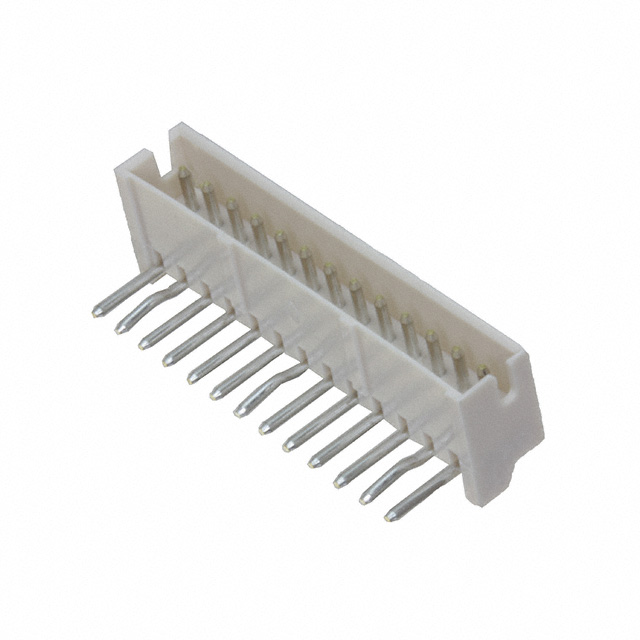

JST Sales America Inc. S13B-ZR-3.4	85 °C	-25 °C	Natural	Solder	Shrouded - 4 Wall		Detent Lock	UL94 V-0	3.7 mm	0.146 in	Glass Filled Nylon 6/6 Polyamide (PA66)	1	Board to Cable/Wire	Header	All	Circular	Male Pin	Brass	Right Angle Through Hole	13	Tin	50 V			0.134 "	3.4 mm

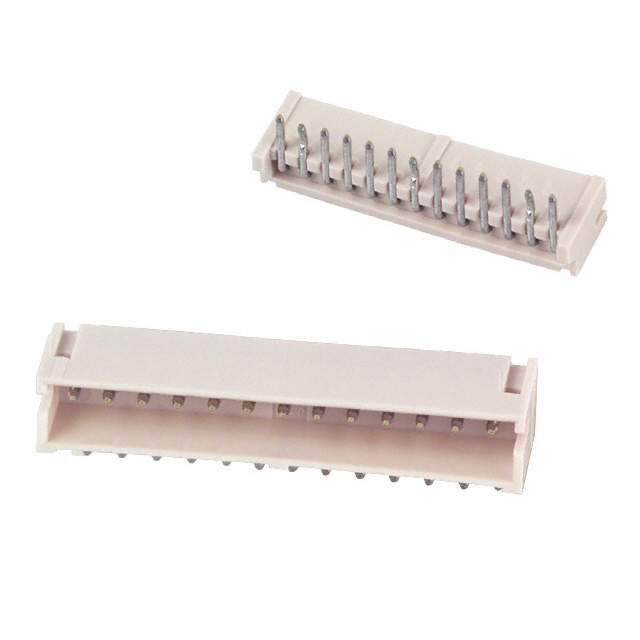

JST Sales America Inc. S13B-ZR	85 °C	-25 °C	Natural	Solder	Shrouded - 4 Wall		Detent Lock	UL94 V-0	3.7 mm	0.146 in	Glass Filled Nylon 6/6 Polyamide (PA66)	1	Board to Cable/Wire	Header	All	Circular	Male Pin	Brass	Right Angle Through Hole	13	Tin	50 V	2.4 mm	0.094 in	0.106 in		2.69 mm
