842-064 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 64POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Card Type	Pitch	Pitch	Number of Positions	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Contact Type	Read Out	Number of Positions/Bay/Row	Card Thickness [Max]	Card Thickness [Min]	Gender	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Color	Termination	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Features

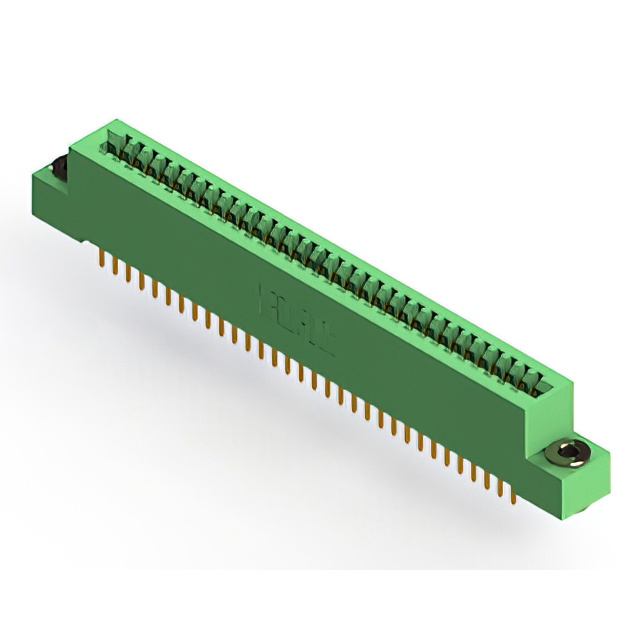

EDAC Inc. 842-064-521-203	2	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	0.1 "	2.54 mm	64	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Cantilever	Dual	32	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	2	0.25 Ám	10 Áin	Copper Alloy	Green	Solder	Through Hole	125 °C	-40 C	Gold

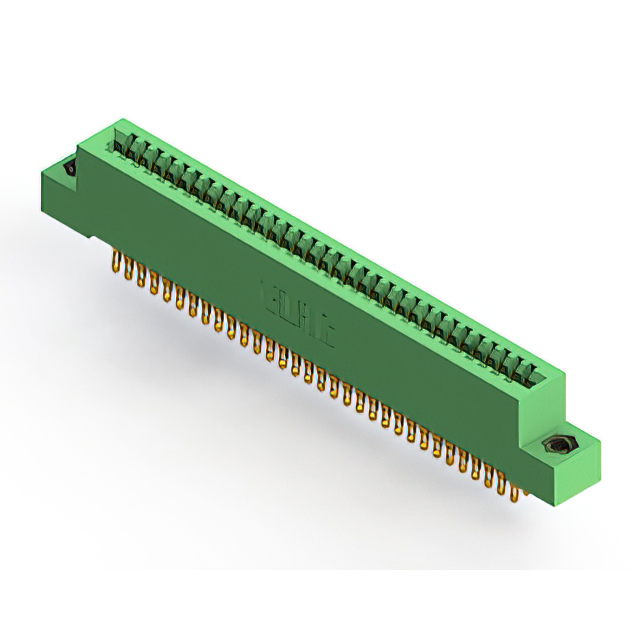

EDAC Inc. 842-064-555-207	2	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	0.1 "	2.54 mm	64		Flush Mount M3 Threaded Insert Top Opening		Cantilever	Dual	32	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	2	0.25 Ám	10 Áin	Copper Alloy	Green	Solder	Board Edge Straddle Mount	125 °C	-40 C	Gold	Card Extender

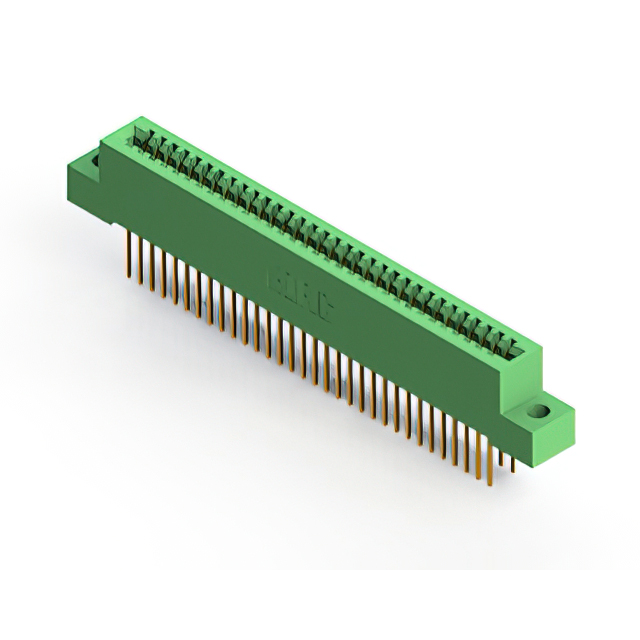

EDAC Inc. 842-064-540-204	2	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	0.1 "	2.54 mm	64	0.156 "	Flush Mount Top Opening Unthreaded	3.96 mm	Cantilever	Dual	32	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	2	0.25 Ám	10 Áin	Copper Alloy	Green	Wire Wrap	Through Hole	125 °C	-40 C	Gold

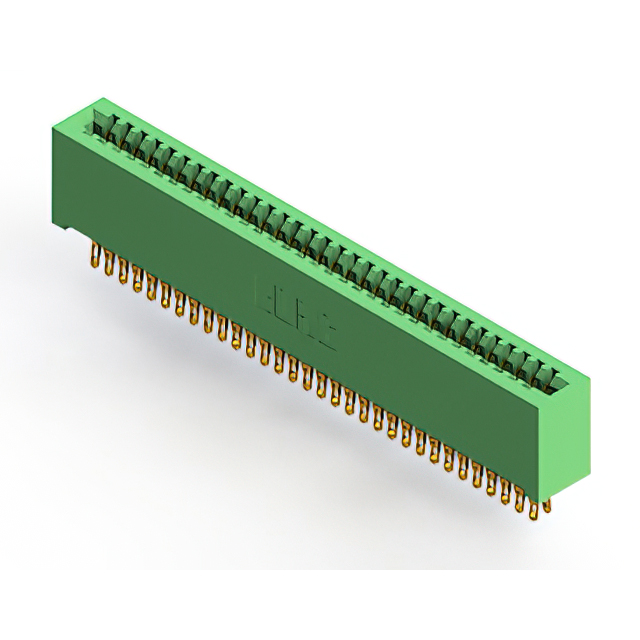

EDAC Inc. 842-064-555-201	2	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	0.1 "	2.54 mm	64				Cantilever	Dual	32	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	2	0.25 Ám	10 Áin	Copper Alloy	Green	Solder	Board Edge Straddle Mount	125 °C	-40 C	Gold	Card Extender

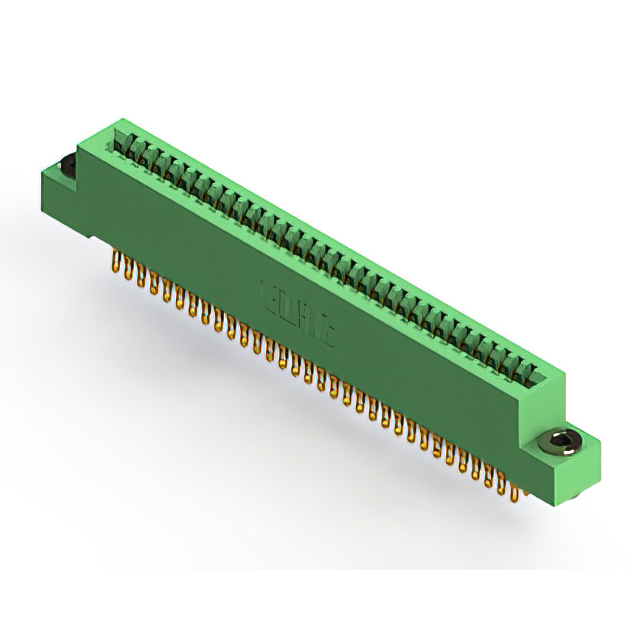

EDAC Inc. 842-064-555-203	2	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	0.1 "	2.54 mm	64	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Cantilever	Dual	32	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	2	0.25 Ám	10 Áin	Copper Alloy	Green	Solder	Board Edge Straddle Mount	125 °C	-40 C	Gold	Card Extender
EDAC Inc. 842-064-523-201	2	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	0.1 "	2.54 mm	64				Cantilever	Dual	32	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	2	0.25 Ám	10 Áin	Copper Alloy	Green	Solder	Through Hole	125 °C	-40 C	Gold
EDAC Inc. 842-064-560-208	2	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	0.1 "	2.54 mm	64		4-40 Flush Mount Threaded Insert Top Opening		Cantilever	Dual	32	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	2	0.25 Ám	10 Áin	Copper Alloy	Green	Solder	Board Edge Straddle Mount	125 °C	-40 C	Gold	Card Extender
EDAC Inc. 842-064-558-208	2	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	0.1 "	2.54 mm	64		4-40 Flush Mount Threaded Insert Top Opening		Cantilever	Dual	32	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	2	0.25 Ám	10 Áin	Copper Alloy	Green	Solder	Right Angle Through Hole	125 °C	-40 C	Gold

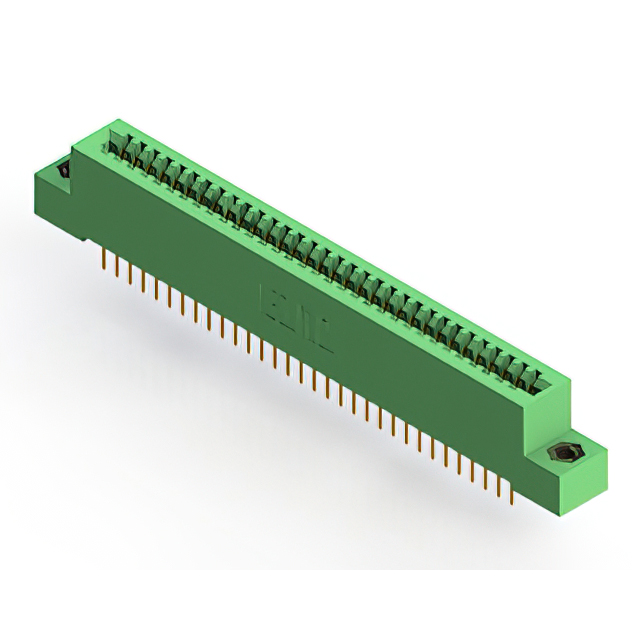

EDAC Inc. 842-064-524-207	2	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	0.1 "	2.54 mm	64		Flush Mount M3 Threaded Insert Top Opening		Cantilever	Dual	32	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	2	0.25 Ám	10 Áin	Copper Alloy	Green	Solder	Through Hole	125 °C	-40 C	Gold

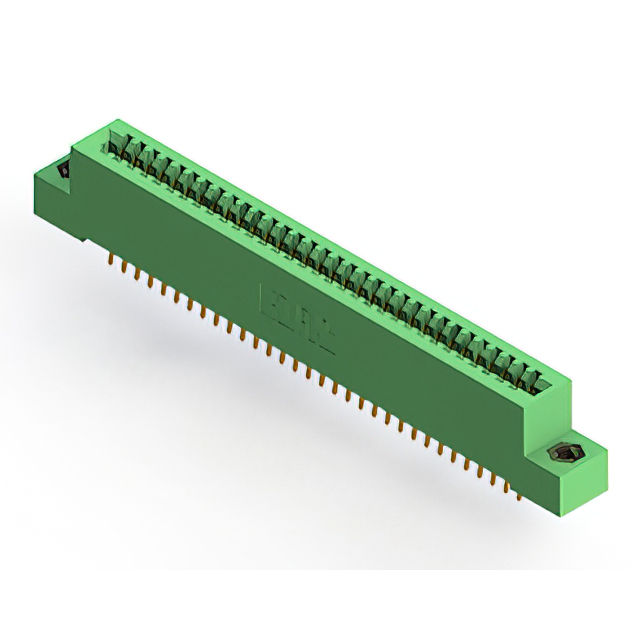

EDAC Inc. 842-064-556-208	2	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	0.1 "	2.54 mm	64		4-40 Flush Mount Threaded Insert Top Opening		Cantilever	Dual	32	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	2	0.25 Ám	10 Áin	Copper Alloy	Green	Solder	Board Edge Straddle Mount	125 °C	-40 C	Gold	Card Extender
