PLB1G Series

Catalog

CIRCULAR

...

Part	Connector Type	Fastening Type	Number of Positions	Shielding	Insert Material	Contact Finish - Mating	Shell Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Ingress Protection	Applications	Primary Material	Orientation	Current Rating (Amps)	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature	Color	Orientation [custom]	Orientation [custom]
ITT Cannon, LLC PLB1G020E14	Receptacle Female Sockets	Latch Lock Push-Pull	14	Unshielded	Polyetheretherketone (PEEK)	Gold	Polysulfone (PSU)	0.51 µm	20 µin	Copper Alloy	IP50 - Dust Protected	Industrial Medical Testing Equipment & Measurement	Plastic	E	2 A	Panel Mount	150 °C	-50 °C	Bulkhead - Front or Rear Side Nut

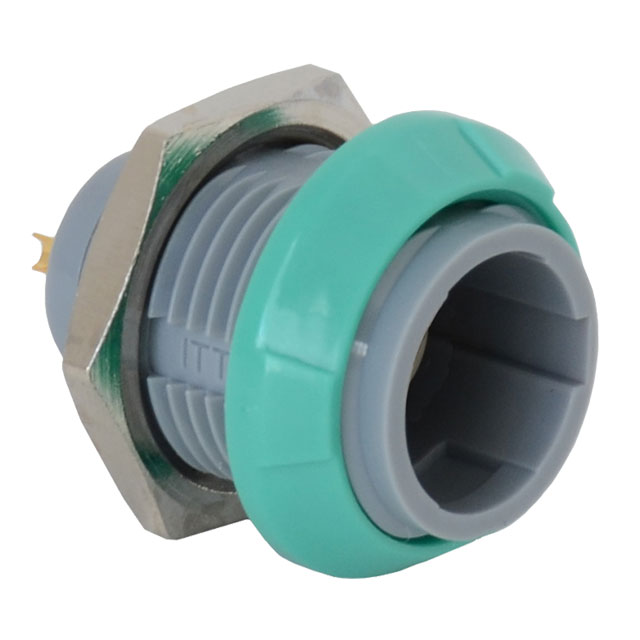

ITT Cannon, LLC PLB1G520C08	Receptacle Female Sockets	Latch Lock Push-Pull	8	Unshielded	Polyetheretherketone (PEEK)	Gold	Polysulfone (PSU)	0.51 µm	20 µin	Copper Alloy	IP50 - Dust Protected	Industrial Medical Testing Equipment & Measurement	Plastic	C	5 A	Panel Mount	150 °C	-50 °C	Bulkhead - Front or Rear Side Nut	Gray Green
ITT Cannon, LLC PLB1G520002	Receptacle Female Sockets	Latch Lock Push-Pull	2	Unshielded	Polyetheretherketone (PEEK)	Gold	Polysulfone (PSU)	0.51 µm	20 µin	Copper Alloy	IP50 - Dust Protected	Industrial Medical Testing Equipment & Measurement	Plastic		10 A	Panel Mount	150 °C	-50 °C	Front and Rear Side Nut	Gray Green	0 °
ITT Cannon, LLC PLB1G120J06	Receptacle Female Sockets	Latch Lock Push-Pull	6	Unshielded	Polyetheretherketone (PEEK)	Gold	Polysulfone (PSU)	0.51 µm	20 µin	Copper Alloy	IP50 - Dust Protected	Industrial Medical Testing Equipment & Measurement	Plastic		6 A	Panel Mount	150 °C	-50 °C	Bulkhead - Front or Rear Side Nut	Gray White		J
ITT Cannon, LLC PLB1G120J07	Receptacle Female Sockets	Latch Lock Push-Pull	7	Unshielded	Polyetheretherketone (PEEK)	Gold	Polysulfone (PSU)	0.51 µm	20 µin	Copper Alloy	IP50 - Dust Protected	Industrial Medical Testing Equipment & Measurement	Plastic		5 A	Panel Mount	150 °C	-50 °C	Bulkhead - Front or Rear Side Nut	Gray White		J
ITT Cannon, LLC PLB1G120E09	Receptacle Female Sockets	Latch Lock Push-Pull	9	Unshielded	Polyetheretherketone (PEEK)	Gold	Polysulfone (PSU)	0.51 µm	20 µin	Copper Alloy	IP50 - Dust Protected	Industrial Medical Testing Equipment & Measurement	Plastic	E	3 A	Panel Mount	150 °C	-50 °C	Bulkhead - Front or Rear Side Nut	Gray White
ITT Cannon, LLC PLB1G520H02	Receptacle Female Sockets	Latch Lock Push-Pull	2	Unshielded	Polyetheretherketone (PEEK)	Gold	Polysulfone (PSU)	0.51 µm	20 µin	Copper Alloy	IP50 - Dust Protected	Industrial Medical Testing Equipment & Measurement	Plastic	H	10 A	Panel Mount	150 °C	-50 °C	Bulkhead - Front or Rear Side Nut	Gray Green
ITT Cannon, LLC PLB1G520H07	Receptacle Female Sockets	Latch Lock Push-Pull	7	Unshielded	Polyetheretherketone (PEEK)	Gold	Polysulfone (PSU)	0.51 µm	20 µin	Copper Alloy	IP50 - Dust Protected	Industrial Medical Testing Equipment & Measurement	Plastic	H	5 A	Panel Mount	150 °C	-50 °C	Bulkhead - Front or Rear Side Nut	Gray Green
ITT Cannon, LLC PLB1G520J02	Receptacle Female Sockets	Latch Lock Push-Pull	2	Unshielded	Polyetheretherketone (PEEK)	Gold	Polysulfone (PSU)	0.51 µm	20 µin	Copper Alloy	IP50 - Dust Protected	Industrial Medical Testing Equipment & Measurement	Plastic		10 A	Panel Mount	150 °C	-50 °C	Bulkhead - Front or Rear Side Nut	Gray Green		J
ITT Cannon, LLC PLB1G120A14	Receptacle Female Sockets	Latch Lock Push-Pull	14	Unshielded	Polyetheretherketone (PEEK)	Gold	Polysulfone (PSU)	0.51 µm	20 µin	Copper Alloy	IP50 - Dust Protected	Industrial Medical Testing Equipment & Measurement	Plastic	A	2 A	Panel Mount	150 °C	-50 °C	Bulkhead - Front or Rear Side Nut	Gray White
