1445055 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER R/A 5POS 3MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Fastening Type	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Material	Style	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Insulation Material	Termination	Insulation Height [custom]	Insulation Height [custom]	Shrouding	Number of Rows	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Contact Type	Contact Finish - Post	Insulation Color	Current Rating (Amps)	Material Flammability Rating	Voltage Rating	Connector Type	Number of Positions Loaded	Contact Length - Post	Contact Length - Post

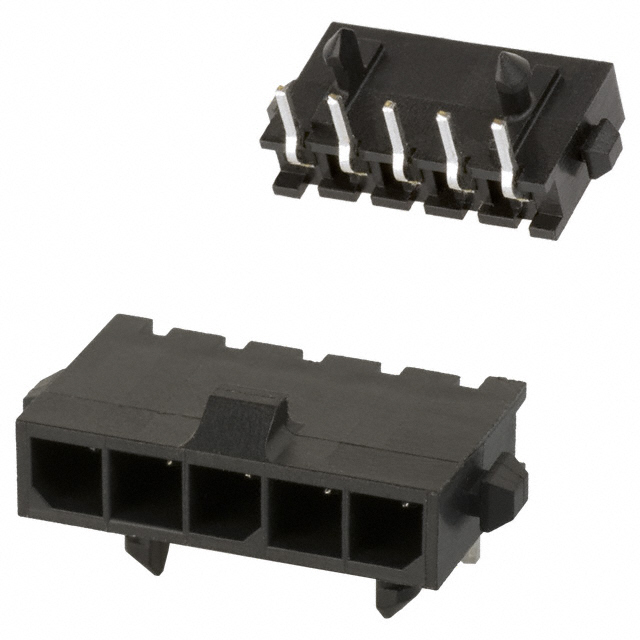

TE Connectivity AMP Connectors 1445055-5	2.54 µm	100 µin	General Purpose	Locking Ramp	Square	-40 C	105 ░C	5	Brass	Board to Cable/Wire	Tin-Lead	3 mm	0.118 in	Nylon Polyamide (PA)	Solder	0.152 in	3.85 mm	Shrouded - 4 Wall	1	Right Angle Through Hole	100 çin	2.54 çm	Board Lock	Male Pin	Tin-Lead	Black	Varies by Wire Gauge	UL94 V-0	250 V	Header	All	0.138 in	3.5 mm

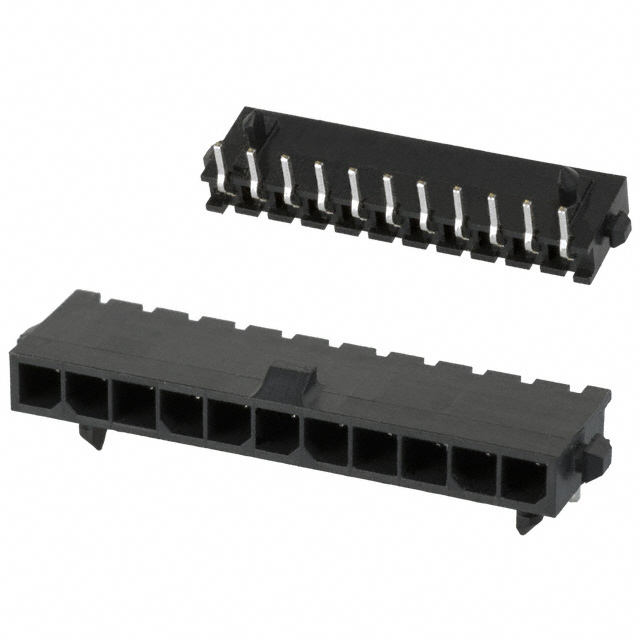

TE Connectivity AMP Connectors 1-1445055-1	2.54 µm	100 µin	General Purpose	Locking Ramp	Square	-40 C	105 ░C	11	Brass	Board to Cable/Wire	Tin-Lead	3 mm	0.118 in	Nylon Polyamide (PA)	Solder	0.152 in	3.85 mm	Shrouded - 4 Wall	1	Right Angle Through Hole	100 çin	2.54 çm	Board Lock	Male Pin	Tin-Lead	Black	Varies by Wire Gauge	UL94 V-0	250 V	Header	All	0.138 in	3.5 mm
TE Connectivity AMP Connectors 1-1445055-0	2.54 µm	100 µin	General Purpose	Locking Ramp	Square	-40 C	105 ░C	10	Brass	Board to Cable/Wire	Tin-Lead	3 mm	0.118 in	Nylon Polyamide (PA)	Solder	0.152 in	3.85 mm	Shrouded - 4 Wall	1	Right Angle Through Hole	100 çin	2.54 çm	Board Lock	Male Pin	Tin-Lead	Black	Varies by Wire Gauge	UL94 V-0	250 V	Header	All	0.138 in	3.5 mm

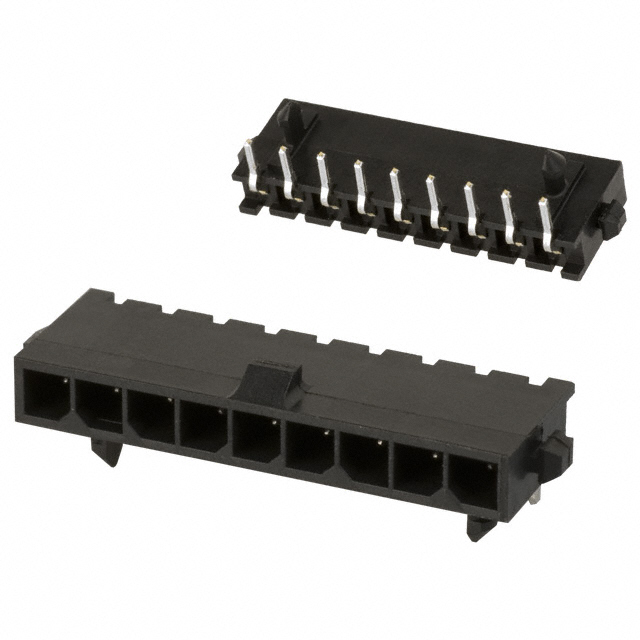

TE Connectivity AMP Connectors 1445055-8	2.54 µm	100 µin	General Purpose	Locking Ramp	Square	-40 C	105 ░C	8	Brass	Board to Cable/Wire	Tin-Lead	3 mm	0.118 in	Nylon Polyamide (PA)	Solder	0.152 in	3.85 mm	Shrouded - 4 Wall	1	Right Angle Through Hole	100 çin	2.54 çm	Board Lock	Male Pin	Tin-Lead	Black	Varies by Wire Gauge	UL94 V-0	250 V	Header	All	0.138 in	3.5 mm

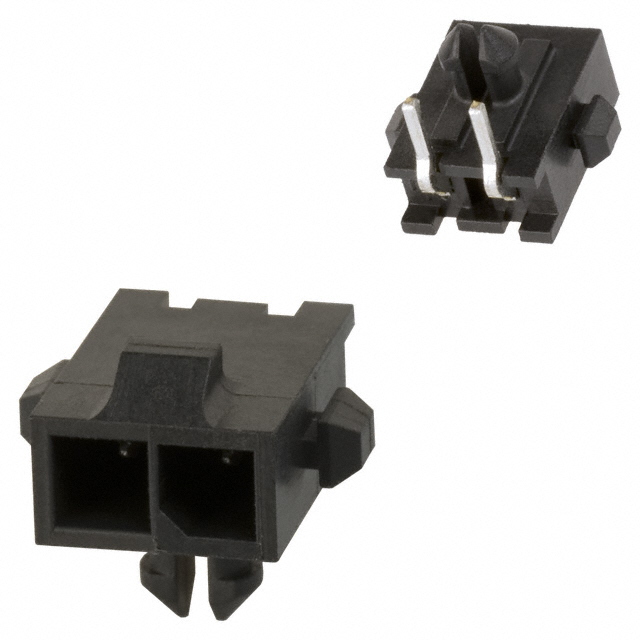

TE Connectivity AMP Connectors 1445055-2	2.54 µm	100 µin	General Purpose	Locking Ramp	Square	-40 C	105 ░C	2	Brass	Board to Cable/Wire	Tin-Lead	3 mm	0.118 in	Nylon Polyamide (PA)	Solder	0.152 in	3.85 mm	Shrouded - 4 Wall	1	Right Angle Through Hole	100 çin	2.54 çm	Board Lock	Male Pin	Tin-Lead	Black	Varies by Wire Gauge	UL94 V-0	250 V	Header	All	0.138 in	3.5 mm
TE Connectivity AMP Connectors 1445055-9	2.54 µm	100 µin	General Purpose	Locking Ramp	Square	-40 C	105 ░C	9	Brass	Board to Cable/Wire	Tin-Lead	3 mm	0.118 in	Nylon Polyamide (PA)	Solder	0.152 in	3.85 mm	Shrouded - 4 Wall	1	Right Angle Through Hole	100 çin	2.54 çm	Board Lock	Male Pin	Tin-Lead	Black	Varies by Wire Gauge	UL94 V-0	250 V	Header	All	0.138 in	3.5 mm
