850-40 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN HEADER R/A 1POS

...

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Connector Type	Mounting Type	Insulation Color	Contact Material	Termination	Fastening Type	Shrouding	Insulation Height	Insulation Height	Contact Type	Number of Positions Loaded	Insulation Material	Contact Length - Mating	Contact Length - Mating	Contact Shape	Contact Length - Post	Contact Length - Post	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Pitch	Pitch	Contact Finish	Color	Contact Finish Thickness	Contact Finish Thickness
Mill-Max Manufacturing Corp. 850-40-001-20-001000	200 µin	5.08 µm	1	Header	Right Angle Through Hole	Black	Brass Alloy	Solder	Push-Pull	Unshrouded	0.087 "	2.2 mm	Male Pin	All	Nylon 4/6 Polyamide (PA46)	3 mm	0.118 in	Circular	0.118 in	3 mm	1	5.08 µm	200 µin	Tin

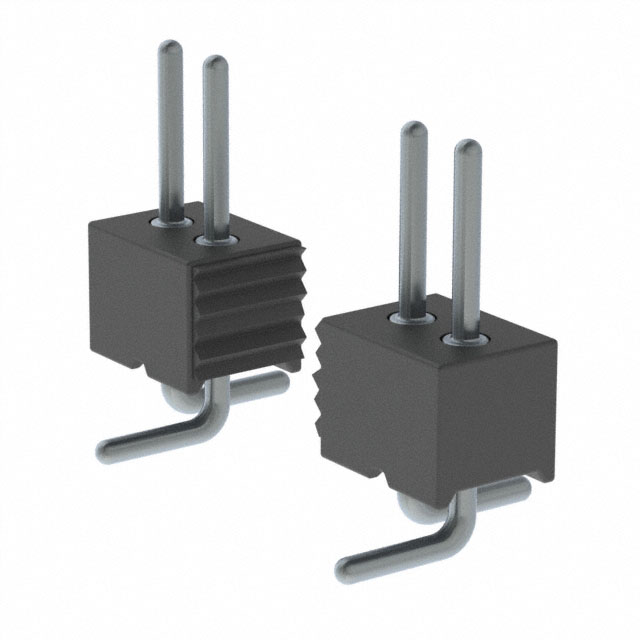

Mill-Max Manufacturing Corp. 850-40-030-30-002000	200 µin	5.08 µm	1	Header	Surface Mount	Black	Brass Alloy	Solder	Push-Pull	Unshrouded	0.087 "	2.2 mm	Male Pin	All	Nylon 4/6 Polyamide (PA46)	3 mm	0.118 in	Circular			30	5.08 µm	200 µin	Tin	1.27 mm	0.05 in
Mill-Max Manufacturing Corp. 850-40-020-30-002000	200 µin	5.08 µm	1	Header	Surface Mount	Black	Brass Alloy	Solder	Push-Pull	Unshrouded	0.087 "	2.2 mm	Male Pin	All	Nylon 4/6 Polyamide (PA46)	3 mm	0.118 in	Circular			20	5.08 µm	200 µin	Tin	1.27 mm	0.05 in
Mill-Max Manufacturing Corp. 850-40-022-20-001000	200 µin	5.08 µm	1	Header	Right Angle Through Hole	Black	Brass Alloy	Solder	Push-Pull	Unshrouded	0.087 "	2.2 mm	Male Pin	All	Nylon 4/6 Polyamide (PA46)	3 mm	0.118 in	Circular	0.118 in	3 mm	22	5.08 µm	200 µin	Tin	1.27 mm	0.05 in
Mill-Max Manufacturing Corp. 850-40-020-10-003000			1	Header	Through Hole			Solder					Solder Cup								20						0.05 in	1.27 mm	Tin	Black	200 Áin	5.08 Ám
Mill-Max Manufacturing Corp. 850-40-025-20-001000	200 µin	5.08 µm	1	Header	Right Angle Through Hole	Black	Brass Alloy	Solder	Push-Pull	Unshrouded	0.087 "	2.2 mm	Male Pin	All	Nylon 4/6 Polyamide (PA46)	3 mm	0.118 in	Circular	0.118 in	3 mm	25	5.08 µm	200 µin	Tin	1.27 mm	0.05 in
Mill-Max Manufacturing Corp. 850-40-012-10-003000			1	Header	Through Hole			Solder					Solder Cup								12						0.05 in	1.27 mm	Tin	Black	200 Áin	5.08 Ám

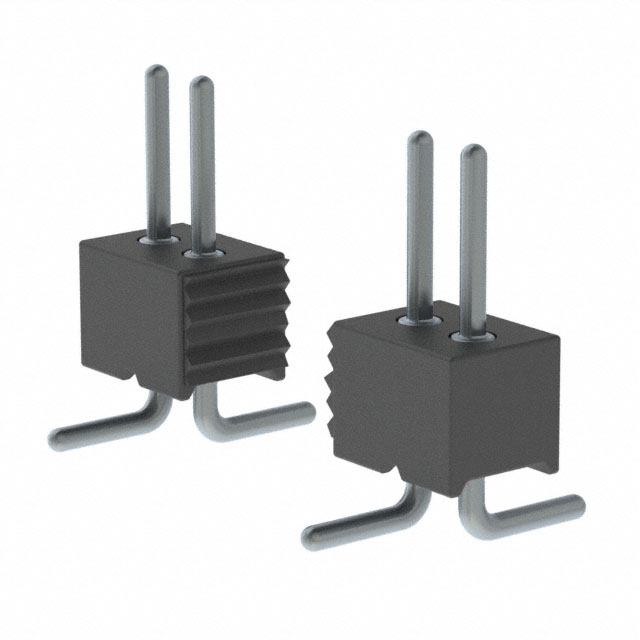

Mill-Max Manufacturing Corp. 850-40-029-30-001000	200 µin	5.08 µm	1	Header	Surface Mount	Black	Brass Alloy	Solder	Push-Pull	Unshrouded	0.087 "	2.2 mm	Male Pin	All	Nylon 4/6 Polyamide (PA46)	3 mm	0.118 in	Circular			29	5.08 µm	200 µin	Tin	1.27 mm	0.05 in
Mill-Max Manufacturing Corp. 850-40-046-30-001000	200 µin	5.08 µm	1	Header	Surface Mount	Black	Brass Alloy	Solder	Push-Pull	Unshrouded	0.087 "	2.2 mm	Male Pin	All	Nylon 4/6 Polyamide (PA46)	3 mm	0.118 in	Circular			46	5.08 µm	200 µin	Tin	1.27 mm	0.05 in
Mill-Max Manufacturing Corp. 850-40-018-20-001000	200 µin	5.08 µm	1	Header	Right Angle Through Hole	Black	Brass Alloy	Solder	Push-Pull	Unshrouded	0.087 "	2.2 mm	Male Pin	All	Nylon 4/6 Polyamide (PA46)	3 mm	0.118 in	Circular	0.118 in	3 mm	18	5.08 µm	200 µin	Tin	1.27 mm	0.05 in
