2367724 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

EP3.96 POTTED HEADER WITH BOSS,GWT,7P

Part	Contact Finish - Post	Termination	Insulation Material	Number of Positions	Contact Length - Mating	Contact Length - Mating	Features	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Pitch - Mating	Pitch - Mating	Contact Material	Voltage Rating	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Contact Type	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Style	Number of Rows	Fastening Type	Insulation Color	Material Flammability Rating	Contact Shape
TE Connectivity Raychem Cable Protection 2367724-7	Tin	Solder	Resin	7	0.242 in	6.15 mm	Board Guide	2 çm	78.7 çin	12.3 A	105 ░C	-55 °C	Shrouded - 4 Wall	0.156 in	3.96 mm	Copper Alloy	600 VAC	Through Hole	78.7 µin	2 µm	Header	Male Pin	All	0.622 in	15.8 mm	3.5 mm	0.138 in	Board to Cable/Wire	1	Locking Ramp	Natural	UL94 V-0	Square

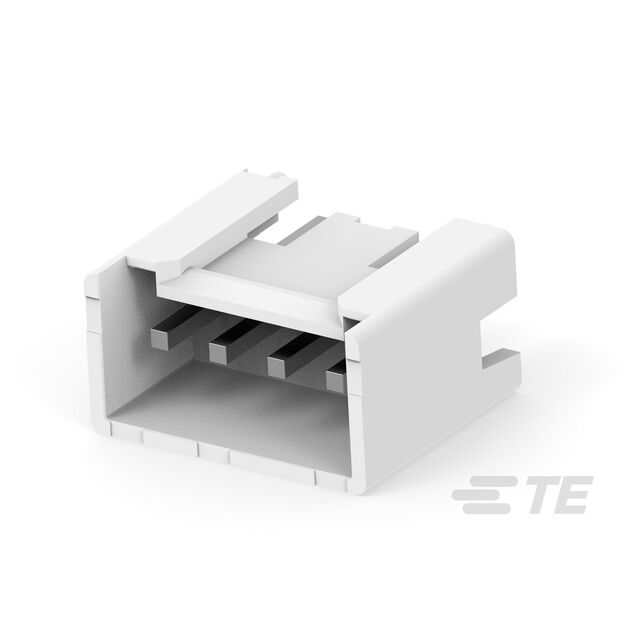

TE Connectivity Raychem Cable Protection 2367724-4	Tin	Solder	Resin	4	0.242 in	6.15 mm	Board Guide	2 çm	78.7 çin	12.3 A	105 ░C	-55 °C	Shrouded - 4 Wall	0.156 in	3.96 mm	Copper Alloy	600 VAC	Through Hole	78.7 µin	2 µm	Header	Male Pin	All	0.622 in	15.8 mm	3.5 mm	0.138 in	Board to Cable/Wire	1	Locking Ramp	Natural	UL94 V-0	Square
TE Connectivity Raychem Cable Protection 2367724-5

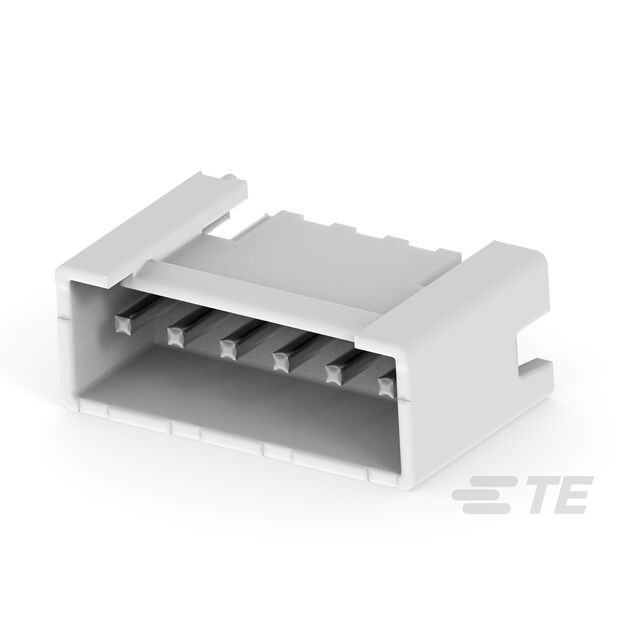

TE Connectivity Raychem Cable Protection 2367724-6	Tin	Solder	Resin	6	0.242 in	6.15 mm	Board Guide	2 çm	78.7 çin	12.3 A	105 ░C	-55 °C	Shrouded - 4 Wall	0.156 in	3.96 mm	Copper Alloy	600 VAC	Through Hole	78.7 µin	2 µm	Header	Male Pin	All	0.622 in	15.8 mm	3.5 mm	0.138 in	Board to Cable/Wire	1	Locking Ramp	Natural	UL94 V-0	Square
