9422-1113 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

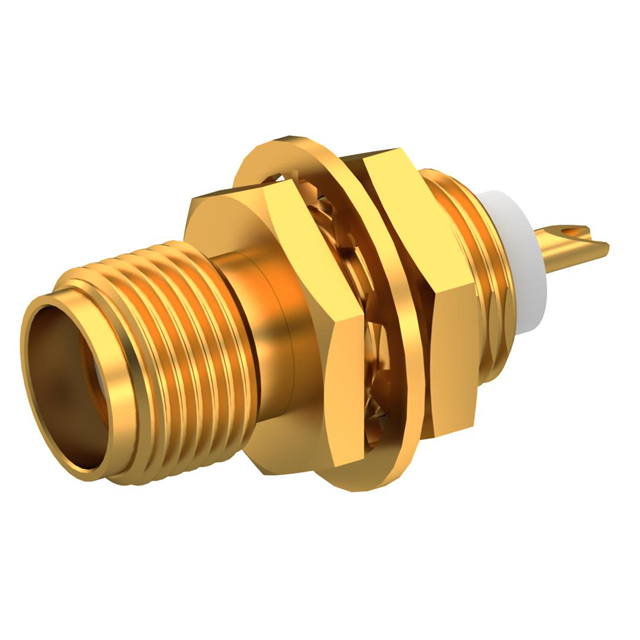

SMA F STR BHD SP
| Part | Mating Cycles | Body Material | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Includes | Center Contact Plating | Housing Color | Fastening Type | Mounting Type | Number of Ports | Connector Style | Contact Termination | Mounting Feature | Connector Type | Shield Termination | Impedance | Frequency - Max [Max] | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 | Stainless Steel | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Gold | 1 Connector 1 Lockwasher 1 Nut | Gold | Gold | Threaded | Panel Mount | 1 | SMA | Solder Cup | Bulkhead - Rear Side Nut | Female Socket Jack | Solder | 50 Ohms | 18 GHz | Beryllium Copper |
