3470/50C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

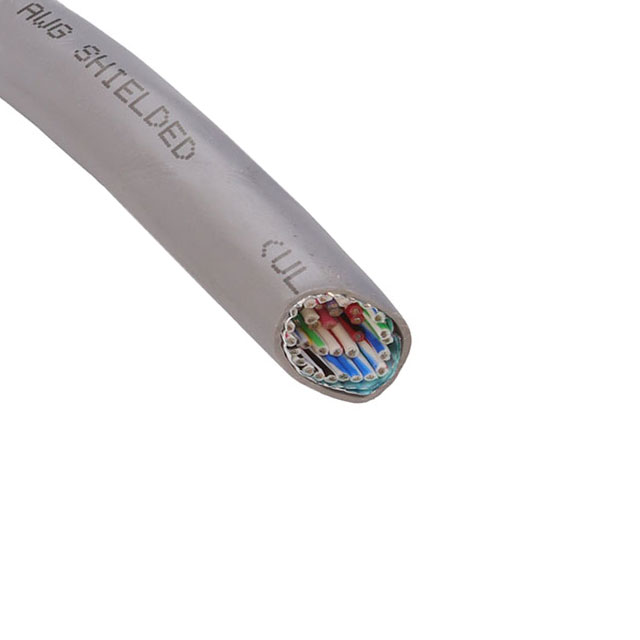

CABLE 50COND 28AWG SHLD 1000'
| Part | Number of Conductors | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage | Shield Coverage | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Conductor Material | Shield Type | Wire Gauge | Features | Usage | Shield Material | Jacket (Insulation) Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 50 | 1000 ft | 304.8 m | 0.397 in | 10.08 mm | Multi-Conductor | 36 AWG | 7 | -20 C | 80 C | 300 V | 65 % 100 % | Slate | 0.889 mm | 0.035 in | Poly-Vinyl Chloride (PVC) | Copper Tinned | Braid Foil | 28 AWG | Drain Wire | Communication Control | Aluminum Copper Tinned | Poly-Vinyl Chloride (PVC) |
