OSTTB08 Series

Catalog

TERM BLK 8POS TOP ENTRY 5MM PCB

Part	Screw Material - Plating	Clamp Material - Plating [custom]	Contact Material - Plating	Torque - Screw	Torque - Screw	Housing Material	Screw Thread	Operating Temperature [Min]	Operating Temperature [Max]	Current	Number of Levels	Wire Termination	Color	Positions Per Level	Wire Gauge [Min]	Wire Gauge [Max]	Mounting Type	Pitch	Pitch	Mating Orientation	Features

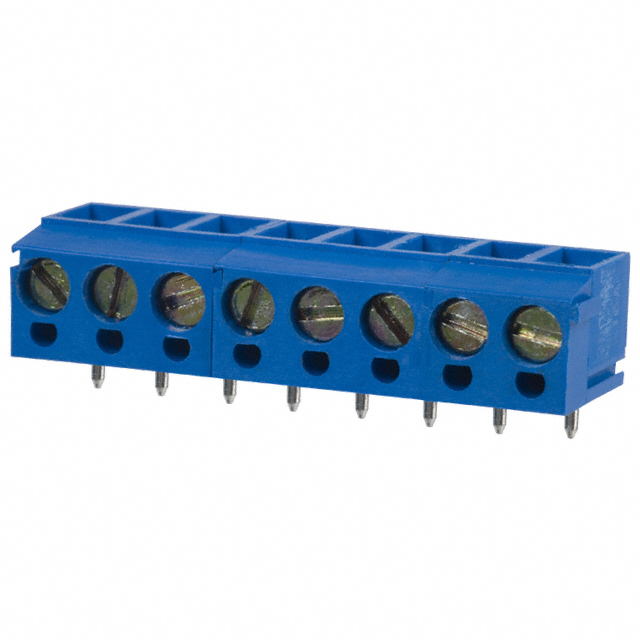

On Shore Technology Inc. OSTTB080161	Steel - Zinc Plated	Stainless Steel	Tin Plated	2.6 Lb-In	0.3 Nm	Thermoplastic	M3	-30 ░C	105 ░C	16 A	1	Screw - Leaf Spring Wire Guard	Blue	8	14 AWG	22 AWG	Through Hole	0.197 in	5 mm	Vertical with Board	Interlocking (Side)
On Shore Technology Inc. OSTTB082161	Steel - Zinc Plated	Stainless Steel	Tin Plated	3.5 Lb-In	0.4 Nm	Thermoplastic	M3	-30 ░C	105 ░C	15 A	1	Screw - Leaf Spring Wire Guard	Blue	8	14 AWG	22 AWG	Through Hole	0.2 in	5.08 mm	Vertical with Board	Interlocking (Side)
