PR20B05VB Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K

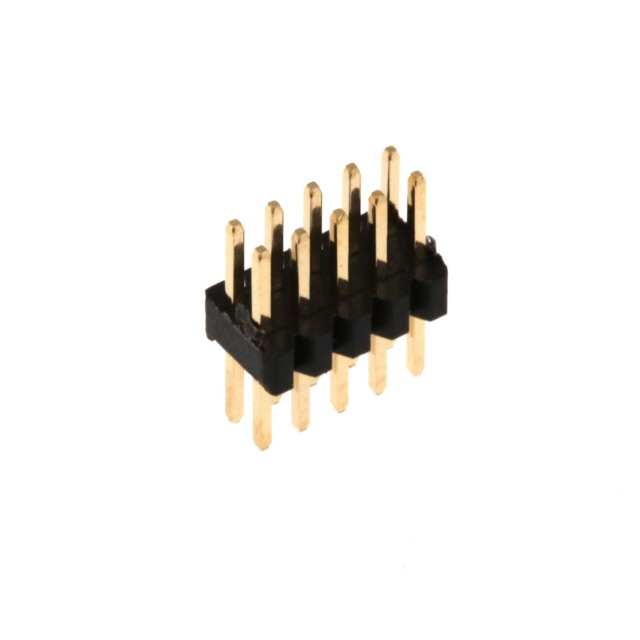

PIN HEADER, THR, DUAL ROW, 1.27
| Part | Pitch - Mating | Pitch - Mating | Connector Type | Number of Rows [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Contact Length - Post [custom] | Contact Length - Post | Number of Positions Loaded | Termination | Contact Shape | Mounting Type | Overall Contact Length | Overall Contact Length | Insulation Material | Row Spacing - Mating | Row Spacing - Mating | Shrouding | Insulation Height | Insulation Height | Number of Positions | Insulation Color | Fastening Type | Contact Finish - Mating | Contact Type | Contact Length - Mating | Contact Length - Mating | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 METZ CONNECT USA Inc. | 1.27 mm | 0.05 in | Header | 2 | -40 C | 105 ░C | Flash | 0.11 in | 2.79 mm | All | Solder | Square | Through Hole | 7.3 mm | 0.287 in | Polyethylene | 0.05 in | 1.27 mm | Unshrouded | 0.059 in | 1.5 mm | 10 | Black | Push-Pull | Gold | Male Pin | 3 mm | 0.118 in | Copper Zinc |
